Gun Metallic

Steel

[K02] SV VALUE TRUCK PACKAGE

[C03] 50 STATE EMISSIONS

[G01] MID-YEAR CHANGE

[B92] SPLASH GUARDS

[K12] VALUE TRUCK PACKAGE ITEMS - AUTOMATIC ONLY

[Z66] ACTIVATION DISCLAIMER

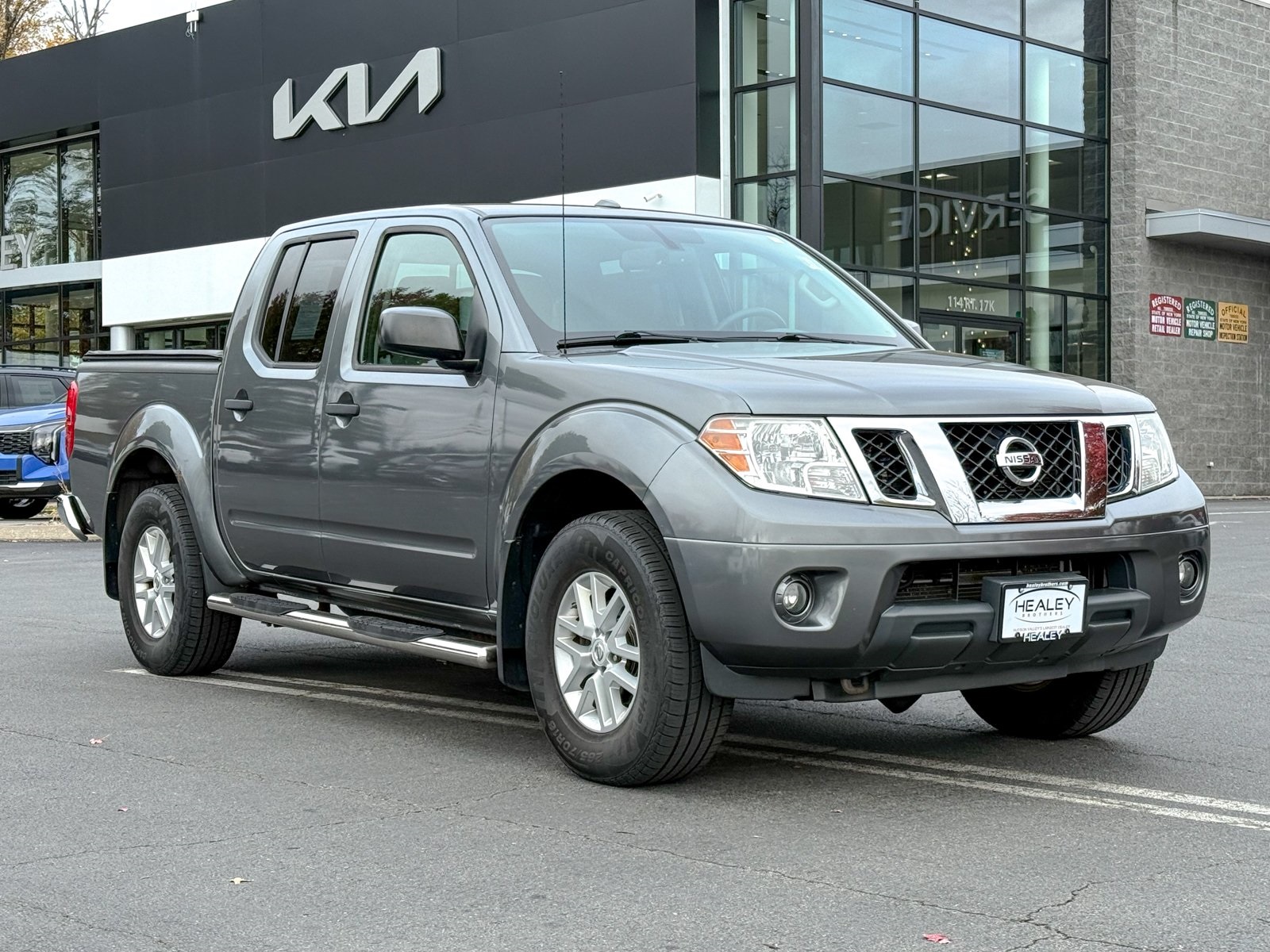

Vehicle Name - Nissan Frontier

Body Style - Crew Cab

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 4453

Gross Vehicle Weight Rating Cap (lbs) - 5816

Fuel Economy Est-Combined (MPG) - 17

EPA Fuel Economy Est - City (MPG) - 15

EPA Fuel Economy Est - Hwy (MPG) - 21

Gross Combined Wt Rating (lbs) - 11133

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 6100

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 610

Maximum Trailering Capacity (lbs) - 6100

Engine Order Code -

Engine Type - Regular Unleaded V-6

Displacement - 4.0 L/241

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 261 @ 5600

SAE Net Torque @ RPM - 281 @ 4000

Trans Order Code -

Trans Type - 5

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 3.84

Second Gear Ratio (:1) - 2.35

Third Gear Ratio (:1) - 1.53

Fourth Gear Ratio (:1) - 1.00

Fifth Gear Ratio (:1) - 0.84

Reverse Ratio (:1) - 2.76

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 550

Cold Cranking Amps @ 0? F (2nd) - 550

Tons/yr of CO2 Emissions @ 15K mi/year - 10.4 (Est)

Maximum Alternator Capacity (amps) - 130

Engine Oil Cooler - None

Suspension Type - Front - Double Wishbone

Suspension Type - Rear - Leaf

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 3.36

Axle Ratio (:1) - Rear - 3.36

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - P265/70TR16

Rear Tire Size - P265/70TR16

Spare Tire Size - Full-Size

Front Wheel Size (in) - 16 X 7

Rear Wheel Size (in) - 16 X 7

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 43.3

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 11.7

Rear Brake Rotor Diam x Thickness (in) - 11.3

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 21.1

Front Head Room (in) - 40

Front Leg Room (in) - 42.4

Front Shoulder Room (in) - 58.3

Front Hip Room (in) - 55.6

Second Head Room (in) - 38.7

Second Leg Room (in) - 33.6

Second Shoulder Room (in) - 58.3

Second Hip Room (in) - 58

Wheelbase (in) - 125.9

Length, Overall (in) - 205.5

Width, Max w/o mirrors (in) - 72.8

Height, Overall (in) - 70.1

Overhang, Rear w/o bumper (in) - 48.2

Cab to Axle (in) - 18.5

Ground Clearance, Front (in) - 8.9

Ground Clearance, Rear (in) - 8.9

Cargo Box Length @ Floor (in) - 59.5

Cargo Box Width @ Top, Rear (in) - 61.4

Cargo Box Width @ Floor (in) - 61.4

Cargo Box Width @ Wheelhousings (in) - 44.4

Cargo Box (Area) Height (in) - 18

Cargo Volume (ft?) - 27.1

Model Group - Frontier

Vehicle Segment - Small Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 4.0

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States Nissan Pick-Up Truck
