ANVIL CLEARCOAT

BLACK, CLOTH LOW-BACK BUCKET SEATS

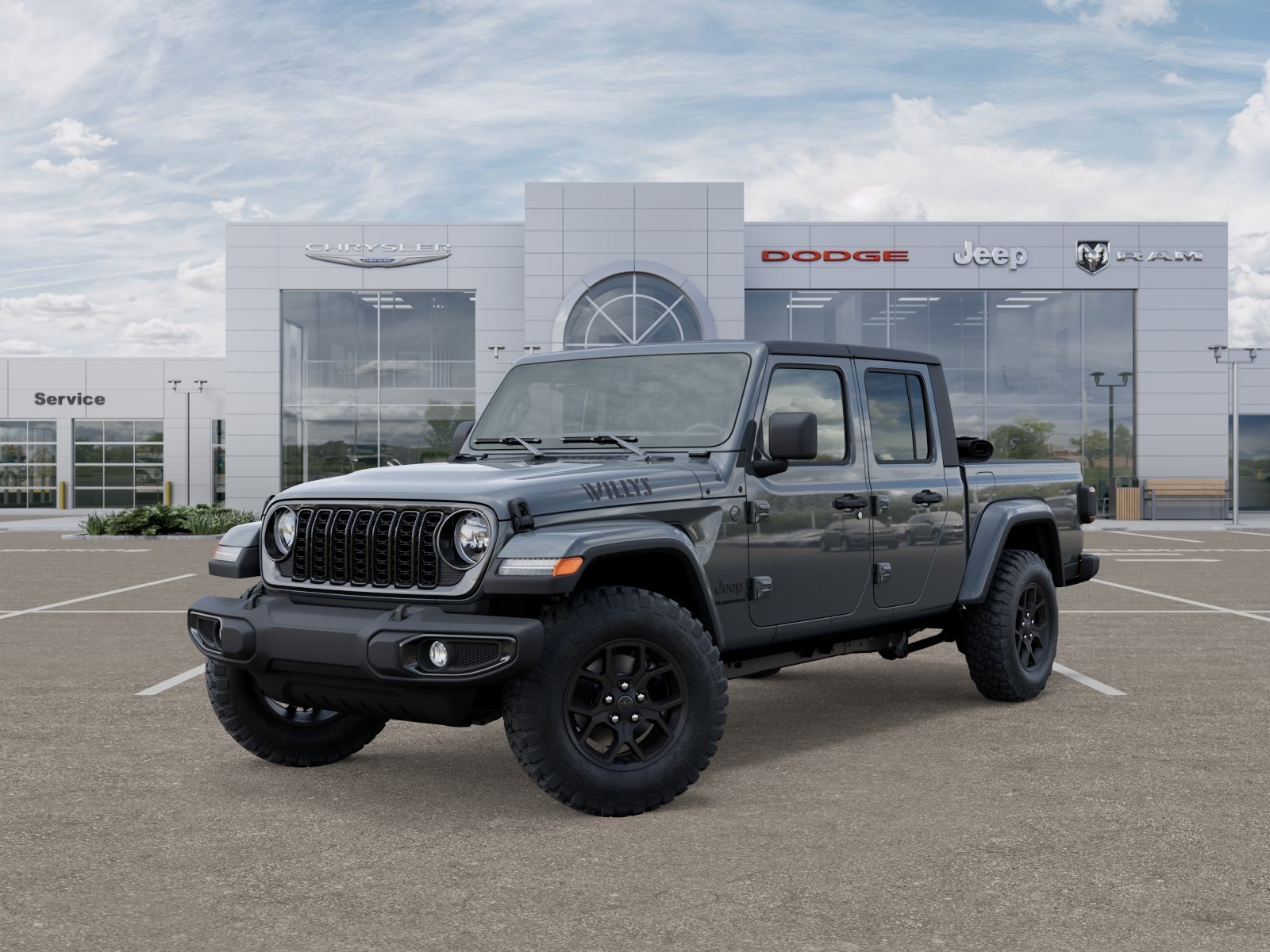

Vehicle Name - Jeep Gladiator

Body Style - Crew Cab

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 4802

Gross Axle Wt Rating - Front (lbs) - 3100

Gross Axle Wt Rating - Rear (lbs) - 3750

Curb Weight - Front (lbs) - 2585

Curb Weight - Rear (lbs) - 2216

EPA Greenhouse Gas Score - 4.0

Gross Vehicle Weight Rating Cap (lbs) - 5950

Fuel Economy Est-Combined (MPG) - 19

EPA Fuel Economy Est - City (MPG) - 17

EPA Fuel Economy Est - Hwy (MPG) - 22

Gross Combined Wt Rating (lbs) - 9650

Dead Weight Hitch - Max Trailer Wt. (lbs) - 4500

Dead Weight Hitch - Max Tongue Wt. (lbs) - 450

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 4500

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 450

Maximum Trailering Capacity (lbs) - 4500

Engine Order Code - ERC

Engine Type - Regular Unleaded V-6

Displacement - 3.6 L/220

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 285 @ 6400

SAE Net Torque @ RPM - 260 @ 4400

Trans Order Code - DFT

Trans Type - 8

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.71

Second Gear Ratio (:1) - 3.14

Third Gear Ratio (:1) - 2.11

Fourth Gear Ratio (:1) - 1.67

Fifth Gear Ratio (:1) - 1.28

Sixth Gear Ratio (:1) - 1.00

Reverse Ratio (:1) - 3.29

Trans PTO Access - No

Transfer Case Model - Manual

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 700

Cold Cranking Amps @ 0? F (2nd) - 700

Tons/yr of CO2 Emissions @ 15K mi/year - 9.3

Maximum Alternator Capacity (amps) - 240

Engine Oil Cooler - Regular Duty

Suspension Type - Front - Leading Link

Suspension Type - Rear - Trailing Arm

Axle Type - Front - Non-Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 3.73

Axle Ratio (:1) - Rear - 3.73

Front Tire Order Code - TTP

Rear Tire Order Code - TTP

Spare Tire Order Code -

Front Tire Size - LT255/75SR17

Rear Tire Size - LT255/75SR17

Spare Tire Size - Full-Size

Front Wheel Size (in) - 17 X 7.5

Rear Wheel Size (in) - 17 X 7.5

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Re-Circulating Ball

Turning Diameter - Curb to Curb (ft) - 44.5

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.9

Rear Brake Rotor Diam x Thickness (in) - 13.6

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 22

Front Head Room (in) - 40.8

Front Leg Room (in) - 41.2

Front Shoulder Room (in) - 55.7

Front Hip Room (in) - 53.9

Second Head Room (in) - 40.8

Second Leg Room (in) - 38.3

Second Shoulder Room (in) - 55.7

Second Hip Room (in) - 55.9

Wheelbase (in) - 137.3

Length, Overall (in) - 218

Width, Max w/o mirrors (in) - 73.8

Height, Overall (in) - 73.1

Overhang, Front (in) - 29.7

Overhang, Rear w/o bumper (in) - 51

Ground to Top of Load Floor (in) - 33.3

Ground Clearance, Front (in) - 10

Ground Clearance, Rear (in) - 10

Cargo Box Length @ Floor (in) - 60.3

Cargo Box Width @ Top, Rear (in) - 56.8

Cargo Box Width @ Floor (in) - 56.8

Cargo Box Width @ Wheelhousings (in) - 44.8

Cargo Box (Area) Height (in) - 33.9

Tailgate Width (in) - 50

Cargo Volume (ft?) - 35.5

Seventh Gear Ratio (:1) - 0.84

Eighth Gear Ratio (:1) - 0.67

Model Group - Gladiator

Vehicle Segment - Small Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 3.6

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States RAM, Jeep Truck
