Black Amethyst

Black, Seat Trim

[C01] CALIFORNIA EMISSIONS

[B10] SPLASH GUARDS

[B93] REAR BUMPER PROTECTOR

[L92] FRONT/REAR FLOOR MATS & CARGO PROTECTOR

[N92] ALUMINUM KICK PLATES

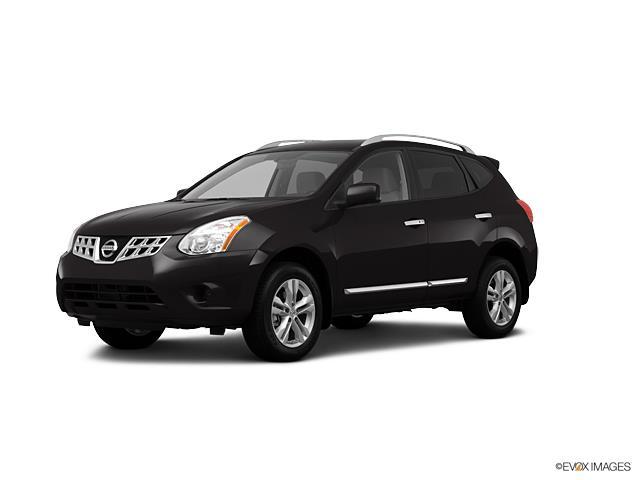

Vehicle Name - Nissan Rogue

Body Style - Sport Utility

Drivetrain - All Wheel Drive

EPA Classification - AWD Sport Utility

Passenger Capacity - 5

Passenger Volume (ft?) - 126.4

Base Curb Weight (lbs) - 3479

Tons/yr of CO2 Emissions @ 15K mi/year - 7.6

EPA Greenhouse Gas Score - 5

Fuel Economy Est-Combined (MPG) - 24

EPA Fuel Economy Est - City (MPG) - 22

EPA Fuel Economy Est - Hwy (MPG) - 26

Dead Weight Hitch - Max Trailer Wt. (lbs) - 1500

Dead Weight Hitch - Max Tongue Wt. (lbs) - 150

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 1500

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 225

Engine Order Code -

Engine Type - Gas I4

Displacement - 2.5L/152

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 170 @ 6000

SAE Net Torque @ RPM - 175 @ 4400

Trans Order Code -

Trans Type - 1

Trans Description Cont. - Continuously variable ratio

Trans Description Cont. Again -

First Gear Ratio (:1) - 2.34-0.39

Second Gear Ratio (:1) -

Third Gear Ratio (:1) -

Fourth Gear Ratio (:1) -

Fifth Gear Ratio (:1) -

Sixth Gear Ratio (:1) -

Reverse Ratio (:1) - 1.75

Clutch Size (in) -

Final Drive Axle Ratio (:1) - 5.79

Transfer Case Gear Ratio (:1), High -

Transfer Case Gear Ratio (:1), Low -

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - 110

Total Cooling System Capacity (qts) - 7.7

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Multi-Link

Suspension Type - Front (Cont.) - w/Coil Springs

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - 0.91

Stabilizer Bar Diameter - Rear (in) - 0.75

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - P225/60R17

Rear Tire Size - P225/60R17

Spare Tire Size - T155/90D16

Front Wheel Size (in) - 17 x 7.0

Rear Wheel Size (in) - 17 x 7.0

Spare Wheel Size (in) - Compact

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Pwr Rack & Pinion

Steering Ratio (:1), Overall - 17.1

Lock to Lock Turns (Steering) - 3.1

Turning Diameter - Curb to Curb (ft) - 37.4

Turning Diameter - Wall to Wall (ft) - 39.0

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 11.8 x 1.0

Rear Brake Rotor Diam x Thickness (in) - 11.7 x 0.6

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 15.9

Front Head Room (in) - 39.3

Front Leg Room (in) - 42.5

Front Shoulder Room (in) - 55.9

Front Hip Room (in) - 53.1

Second Head Room (in) - 37.6

Second Leg Room (in) - 35.3

Second Shoulder Room (in) - 53.6

Second Hip Room (in) - 51.2

Wheelbase (in) - 105.9

Length, Overall (in) - 183.3

Width, Max w/o mirrors (in) - 70.9

Height, Overall (in) - 66.3

Track Width, Front (in) - 60.6

Track Width, Rear (in) - 61.0

Min Ground Clearance (in) - 8.3

Rear Door Opening Height (in) - - TBD -

Rear Door Opening Width (in) - - TBD -

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - 37.8

Cargo Area Length @ Floor to Seat 3 (in) -

Cargo Area Width @ Beltline (in) - 55.2

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - 31.1

Liftover Height (in) - 30.0

Cargo Volume to Seat 1 (ft?) - 57.9

Cargo Volume to Seat 2 (ft?) - 28.9

Cargo Volume to Seat 3 (ft?) -

Country of Origin - Japan Nissan Multi-Purpose Vehicle
