ENGINE: 3.7L TI-VCT V6 W/98F

ORDER CODE 101A

OXFORD WHITE

PEWTER, VINYL FRONT BUCKET SEATS

50-STATE EMISSIONS SYSTEM

FIXED REAR-DOOR/FIXED PASS-SIDE CARGO-DOOR GLASS

FRONT LICENSE PLATE BRACKET

FRONT & REAR VINYL FLOOR COVERING

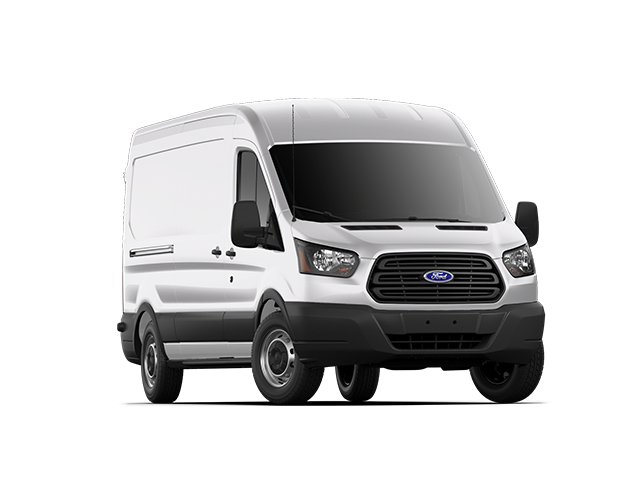

Vehicle Name - Ford Transit Van

Body Style - Medium Roof Cargo Van

Body Code - V

Drivetrain - Rear Wheel Drive

Passenger Capacity - 1

Base Curb Weight (lbs) - 5144

Gross Axle Wt Rating - Front (lbs) - 4130

Gross Axle Wt Rating - Rear (lbs) - 5515

Curb Weight - Front (lbs) - 2944

Curb Weight - Rear (lbs) - 2199

Gross Vehicle Weight Rating Cap (lbs) - 9000

Fuel Economy Est-Combined (MPG) - - TBD -

EPA Fuel Economy Est - City (MPG) - - TBD -

EPA Fuel Economy Est - Hwy (MPG) - - TBD -

Gross Combined Wt Rating (lbs) - 10800

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 5100

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 510

Maximum Trailering Capacity (lbs) - 5100

Engine Order Code - 99M

Engine Type - Gaseous Fuel Compatible V-6

Displacement - 3.7 L/228

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 275 @ 6000

SAE Net Torque @ RPM - 260 @ 4000

Trans Order Code - 446

Trans Type - 6

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.17

Second Gear Ratio (:1) - 2.34

Third Gear Ratio (:1) - 1.52

Fourth Gear Ratio (:1) - 1.14

Fifth Gear Ratio (:1) - 0.86

Sixth Gear Ratio (:1) - 0.69

Reverse Ratio (:1) - 3.40

Trans PTO Access - No

Transfer Case Model - None

Transfer Case Power Take Off - No

Tons/yr of CO2 Emissions @ 15K mi/year - - TBD -

Maximum Alternator Capacity (amps) - 250

Engine Oil Cooler - Regular Duty

Suspension Type - Front - Strut

Suspension Type - Rear - Leaf

Spring Capacity - Front (lbs) - 4130

Spring Capacity - Rear (lbs) - 5515

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Capacity - Front (lbs) - 4130

Axle Capacity - Rear (lbs) - 5515

Axle Ratio (:1) - Front - 3.73

Axle Ratio (:1) - Rear - 3.73

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - LT235/65SR16

Rear Tire Size - LT235/65SR16

Spare Tire Size - Full-Size

Front Tire Capacity (lbs) - 6394

Rear Tire Capacity (lbs) - 5996

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - 720

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - 720

Front Wheel Size (in) - 16 X 7

Rear Wheel Size (in) - 16 X 7

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 48

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.1

Rear Brake Rotor Diam x Thickness (in) - 12.1

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 25

Front Head Room (in) - 52

Front Leg Room (in) - 39.7

Front Shoulder Room (in) - 67.9

Front Hip Room (in) - 67.5

Wheelbase (in) - 147.6

Length, Overall (in) - 237.6

Width, Max w/o mirrors (in) - 81.3

Height, Overall (in) - 100.7

Ground to Top of Load Floor (in) - 28.7

Rear Door Type - Split Swing-Out

Side Door Type - Sliding

Cargo Area Length @ Floor to Seat 1 (in) - 143.7

Cargo Area Width @ Beltline (in) - 70.2

Cargo Box Width @ Wheelhousings (in) - 54.8

Cargo Box (Area) Height (in) - 72

Cargo Volume (ft?) - 357.1

Model Group - Transit

Vehicle Segment - Large Van

Vehicle Type - Cargo Van

Body Cab Style - Cargo Van

Engine Displacement Units - 3.7

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States Ford
