GUN METALLIC

BLACK, LEATHER-APPOINTED SEAT TRIM

[P01] PREMIUM PACKAGE

[C03] 50 STATE EMISSIONS

[L92] 3RD ROW CARPETED FLOOR MATS - BENCH SEAT

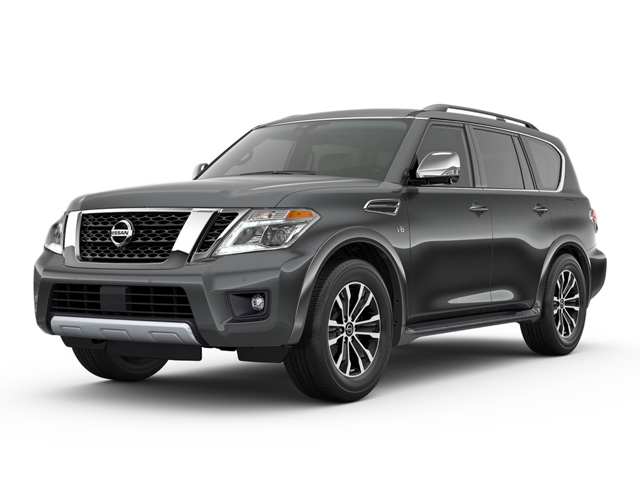

Vehicle Name - Nissan Armada

Body Style - Sport Utility

Body Code - S

Drivetrain - Four Wheel Drive

Passenger Capacity - 7

Base Curb Weight (lbs) - 5917

Gross Axle Wt Rating - Front (lbs) - 3616

Gross Axle Wt Rating - Rear (lbs) - 4343

Curb Weight - Front (lbs) - 3057

Curb Weight - Rear (lbs) - 2860

Gross Vehicle Weight Rating Cap (lbs) - 7500

Fuel Economy Est-Combined - 15

EPA Fuel Economy Est - City (MPG) - 13

EPA Fuel Economy Est - Hwy (MPG) - 18

Gross Combined Wt Rating (lbs) - 14700

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 8500

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 850

Maximum Trailering Capacity - 8500

Engine Order Code -

Engine Type - Regular Unleaded V-8

Displacement - 5.6 L/339

Fuel System - Gasoline Direct Injection

SAE Net Horsepower @ RPM - 390 @ 5800

SAE Net Torque @ RPM - 394 @ 4000

Trans Order Code -

Trans Type - 7

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.89

Second Gear Ratio (:1) - 3.17

Third Gear Ratio (:1) - 2.03

Fourth Gear Ratio (:1) - 1.41

Fifth Gear Ratio (:1) - 1.00

Sixth Gear Ratio (:1) - 0.86

Reverse Ratio (:1) - 3.54

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 650

Cold Cranking Amps @ 0? F (2nd) - 650

Tons/yr of CO2 Emissions @ 15K mi/year - 11.9

Maximum Alternator Capacity (amps) - 150

Engine Oil Cooler - None

Suspension Type - Front - Double Wishbone

Suspension Type - Rear - Double Wishbone

Axle Type - Front - Independent

Axle Type - Rear - Independent

Axle Ratio (:1) - Front - 2.94

Axle Ratio (:1) - Rear - 2.94

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - P275/60HR20

Rear Tire Size - P275/60HR20

Spare Tire Size - Full-Size

Front Wheel Size (in) - 20 X 8

Rear Wheel Size (in) - 20 X 8

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Aluminum

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 41.3

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.8

Rear Brake Rotor Diam x Thickness (in) - 13.8

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 26

Front Head Room (in) - 39.8

Front Leg Room (in) - 41.9

Front Shoulder Room (in) - 63.8

Front Hip Room (in) - 59.2

Second Head Room (in) - 40

Second Leg Room (in) - 41

Second Shoulder Room (in) - 63.4

Second Hip Room (in) - 58.4

Third Head Room (in) - 36.4

Third Leg Room (in) - 28.4

Third Shoulder Room (in) - 60.5

Third Hip Room (in) - 48.8

Wheelbase (in) - 121.1

Length, Overall (in) - 208.9

Width, Max w/o mirrors (in) - 79.9

Height, Overall (in) - 75.8

Track Width, Front (in) - 67.5

Track Width, Rear (in) - 67.9

Min Ground Clearance (in) - 9.2

Cargo Area Length @ Floor to Seat 1 (in) - 86.2

Cargo Area Length @ Floor to Seat 2 (in) - 49.1

Cargo Area Length @ Floor to Seat 3 (in) - 20.3

Cargo Area Width @ Beltline (in) - 63.4

Cargo Box Width @ Wheelhousings (in) - 48.8

Cargo Box (Area) Height (in) - 36.7

Liftover Height (in) - 35

Cargo Volume to Seat 1 (ft?) - 95.4

Cargo Volume to Seat 2 (ft?) - 49.9

Cargo Volume to Seat 3 (ft?) - 16.5

Seventh Gear Ratio (:1) - 0.78

Model Group - Armada

Vehicle Segment - Large Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 5.6

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 8

Engine Valve Count - 4

Country of Origin - Japan Nissan Multi-Purpose Vehicle
