TRANSMISSION: 10-SPEED AUTOMATIC

EQUIPMENT GROUP 321A STANDARD PACKAGE

CACTUS GRAY

DARK GRAY W/BLACK ONYX, MARINE GRADE VINYL BUCKET SEATS

HARD TOP SOUND DEADENING HEADLINER

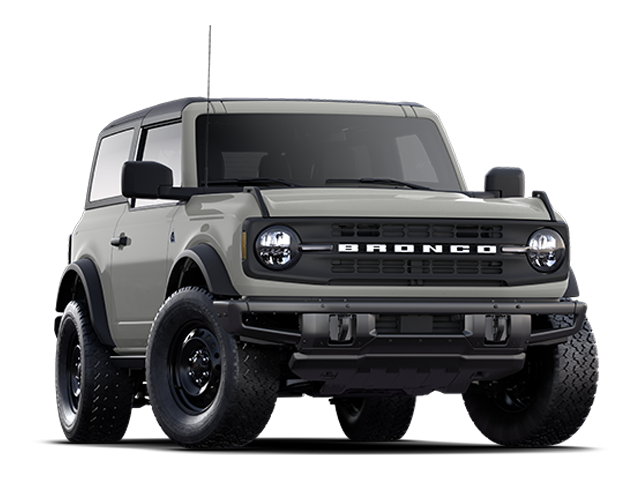

Vehicle Name - Ford Bronco

Body Style - Sport Utility

Body Code - S

Drivetrain - Four Wheel Drive

Passenger Capacity - 4

Base Curb Weight (lbs) - 4607

Gross Axle Wt Rating - Front (lbs) - 3000

Gross Axle Wt Rating - Rear (lbs) - 3000

Curb Weight - Front (lbs) - 2490

Curb Weight - Rear (lbs) - 2097

Gross Vehicle Weight Rating Cap (lbs) - 5800

Fuel Economy Est-Combined - 18

EPA Fuel Economy Est - City (MPG) - 18

EPA Fuel Economy Est - Hwy (MPG) - 18

Gross Combined Wt Rating (lbs) - 8780

Dead Weight Hitch - Max Trailer Wt. (lbs) - 3500

Dead Weight Hitch - Max Tongue Wt. (lbs) - 350

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 3500

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 350

Maximum Trailering Capacity - 3500

Engine Order Code - 99H

Engine Type - Intercooled Turbo Regular Unleaded I-4

Displacement - 2.3 L/140

Fuel System - Gasoline Direct Injection

SAE Net Horsepower @ RPM - 275 @ 5700

SAE Net Torque @ RPM - 315 @ 3400

Trans Order Code - 44T

Trans Type - 10

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.71

Second Gear Ratio (:1) - 3.00

Third Gear Ratio (:1) - 2.15

Fourth Gear Ratio (:1) - 1.77

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.27

Reverse Ratio (:1) - 4.88

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 800

Cold Cranking Amps @ 0? F (2nd) - 800

Tons/yr of CO2 Emissions @ 15K mi/year - 9.9

Maximum Alternator Capacity (amps) - 250

Engine Oil Cooler - None

Suspension Type - Front - Short And Long Arm

Suspension Type - Rear - Multi-Link

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 4.46

Axle Ratio (:1) - Rear - 4.46

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - LT265/70TR17

Rear Tire Size - LT265/70TR17

Spare Tire Size - Full-Size

Front Wheel Size (in) - 17 X 8.5

Rear Wheel Size (in) - 17 X 8.5

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.2

Rear Brake Rotor Diam x Thickness (in) - 12.1

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 16.9

Front Head Room (in) - 41

Front Leg Room (in) - 43.1

Front Shoulder Room (in) - 57.1

Front Hip Room (in) - 56.3

Second Head Room (in) - 39.8

Second Leg Room (in) - 35.7

Second Shoulder Room (in) - 51.8

Second Hip Room (in) - 43.3

Wheelbase (in) - 100.4

Length, Overall (in) - 173.7

Width, Max w/o mirrors (in) - 75.9

Height, Overall (in) - 71.9

Track Width, Front (in) - 65

Track Width, Rear (in) - 65

Min Ground Clearance (in) - 8.4

Cargo Volume to Seat 1 (ft?) - 52.3

Cargo Volume to Seat 2 (ft?) - 22.4

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Model Group - Bronco

Vehicle Segment - Compact Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 2.3

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - United States MPV
