Black Clearcoat

Black, Cloth Low-Back Bucket Seats

QUICK ORDER PACKAGE 23B

MOPAR BLACK TUBULAR SIDE STEPS

AIR CONDITIONING

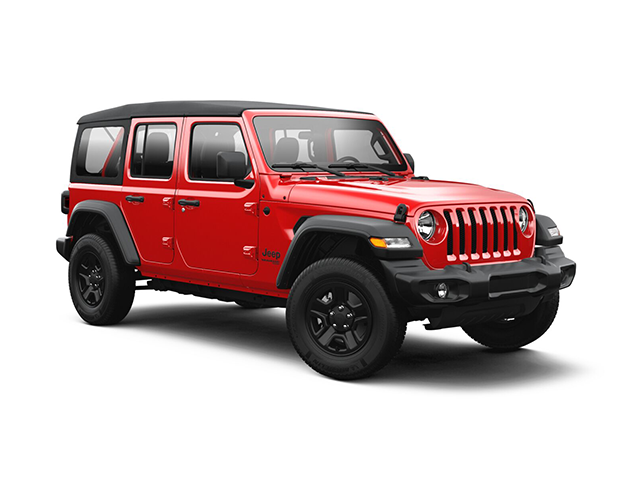

Vehicle Name - Jeep Wrangler

Body Style - Sport Utility

Body Code - S

Drivetrain - Four Wheel Drive

Passenger Capacity - 4

Base Curb Weight (lbs) - 3948

Gross Vehicle Weight Rating Cap (lbs) - 5000

Fuel Economy Est-Combined (MPG) - 20

EPA Fuel Economy Est - City (MPG) - 17

EPA Fuel Economy Est - Hwy (MPG) - 25

Gross Combined Wt Rating (lbs) - 8016

Dead Weight Hitch - Max Trailer Wt. (lbs) - 2000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 200

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 2000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 200

Maximum Trailering Capacity (lbs) - 2000

Engine Order Code - ERC

Engine Type - Regular Unleaded V-6

Displacement - 3.6 L/220

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 285 @ 6400

SAE Net Torque @ RPM - 260 @ 4800

Trans Order Code - DFT

Trans Type - 8

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.71

Second Gear Ratio (:1) - 3.14

Third Gear Ratio (:1) - 2.11

Fourth Gear Ratio (:1) - 1.67

Fifth Gear Ratio (:1) - 1.28

Sixth Gear Ratio (:1) - 1.00

Reverse Ratio (:1) - 3.29

Trans PTO Access - No

Transfer Case Model - Manual

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 700

Cold Cranking Amps @ 0? F (2nd) - 700

Tons/yr of CO2 Emissions @ 15K mi/year - 8.8

Maximum Alternator Capacity (amps) - 240

Engine Oil Cooler - Regular Duty

Suspension Type - Front - Leading Link

Suspension Type - Rear - Trailing Arm

Axle Type - Front - Non-Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 3.45

Axle Ratio (:1) - Rear - 3.45

Front Tire Order Code - TTC

Rear Tire Order Code - TTC

Spare Tire Order Code -

Front Tire Size - P245/75SR17

Rear Tire Size - P245/75SR17

Spare Tire Size - Full-Size

Front Wheel Size (in) - 17 X 7.5

Rear Wheel Size (in) - 17 X 7.5

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Styled Steel

Rear Wheel Material - Styled Steel

Spare Wheel Material - Steel

Steering Type - Re-Circulating Ball

Turning Diameter - Curb to Curb (ft) - 34.5

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.9

Rear Brake Rotor Diam x Thickness (in) - 12.9

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 17.5

Front Head Room (in) - 40.7

Front Leg Room (in) - 41.2

Front Shoulder Room (in) - 55.7

Front Hip Room (in) - 53.9

Second Head Room (in) - 40.2

Second Leg Room (in) - 35.7

Second Shoulder Room (in) - 57.7

Second Hip Room (in) - 45

Wheelbase (in) - 96.8

Length, Overall (in) - 166.8

Width, Max w/o mirrors (in) - 73.8

Height, Overall (in) - 73.6

Track Width, Front (in) - 62.9

Track Width, Rear (in) - 62.9

Min Ground Clearance (in) - 9.7

Liftover Height (in) - 30

Cargo Volume to Seat 1 (ft?) - 31.7

Cargo Volume to Seat 2 (ft?) - 12.9

Seventh Gear Ratio (:1) - 0.84

Eighth Gear Ratio (:1) - 0.67

Gross Traction Battery Capacity (kWh) -

Model Group - Wrangler

Vehicle Segment - Compact Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 2.0

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States MPV
