GRANITE CRYSTAL METALLIC CLEARCOAT

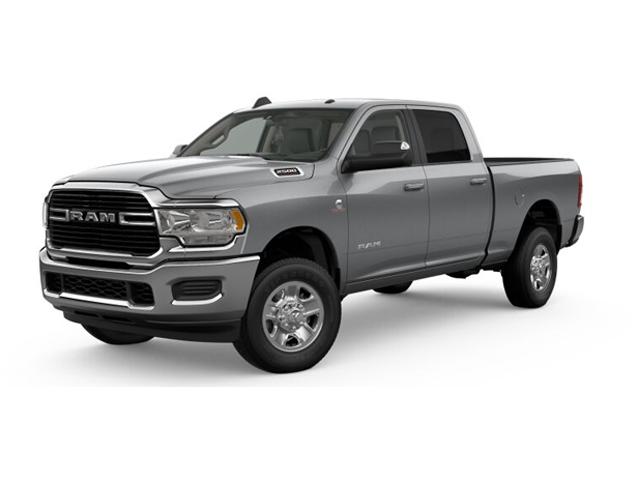

Vehicle Name - Ram 2500

Body Style - Crew Cab

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 6788

Gross Axle Wt Rating - Front (lbs) - 5500

Gross Axle Wt Rating - Rear (lbs) - 6390

Curb Weight - Front (lbs) - 3929

Curb Weight - Rear (lbs) - 2855

Gross Vehicle Weight Rating Cap (lbs) - 10000

Fuel Economy Est-Combined (MPG) - - TBD -

EPA Fuel Economy Est - City (MPG) - - TBD -

EPA Fuel Economy Est - Hwy (MPG) - - TBD -

Gross Combined Wt Rating (lbs) - 24000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 14100

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 1410

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - 10620

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - 2655

Maximum Trailering Capacity (lbs) - 14100

Engine Order Code - ESA

Engine Type - Regular Unleaded V-8

Displacement - 6.4 L/392

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 410 @ 5600

SAE Net Torque @ RPM - 429 @ 4000

Trans Order Code - DG7

Trans Type - 6

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 3.23

Second Gear Ratio (:1) - 1.84

Third Gear Ratio (:1) - 1.41

Fourth Gear Ratio (:1) - 1.00

Fifth Gear Ratio (:1) - 0.82

Sixth Gear Ratio (:1) - 0.62

Reverse Ratio (:1) - 4.44

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 730

Cold Cranking Amps @ 0? F (2nd) - 730

Tons/yr of CO2 Emissions @ 15K mi/year - - TBD -

Maximum Alternator Capacity (amps) - 220 & 160

Engine Oil Cooler - None

Suspension Type - Front - Multi-Link

Suspension Type - Rear - Air Ride

Axle Type - Front - Non-Independent

Axle Type - Rear - Rigid Axle

Axle Capacity - Front (lbs) - 5250

Axle Capacity - Rear (lbs) - 6010

Axle Ratio (:1) - Front - 4.10

Axle Ratio (:1) - Rear - 4.10

Front Tire Order Code - TCP

Rear Tire Order Code - TCP

Spare Tire Order Code - TBE

Front Tire Size - LT285/60SR20

Rear Tire Size - LT285/60SR20

Spare Tire Size -

Front Tire Capacity (lbs) - 7280

Rear Tire Capacity (lbs) - 7280

Front Wheel Size (in) - 20 X 8

Rear Wheel Size (in) - 20 X 8

Spare Wheel Size (in) -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material -

Steering Type - Re-Circulating Ball

Turning Diameter - Curb to Curb (ft) - 47.9

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 14.2

Rear Brake Rotor Diam x Thickness (in) - 14.1

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 31

Front Head Room (in) - 40.9

Front Leg Room (in) - 40.9

Front Shoulder Room (in) - 65.9

Front Hip Room (in) - 62.9

Second Head Room (in) - 39.8

Second Leg Room (in) - 40.2

Second Shoulder Room (in) - 65.6

Second Hip Room (in) - 62.7

Wheelbase (in) - 149

Length, Overall (in) - 238.8

Width, Max w/o mirrors (in) - 79.5

Height, Overall (in) - 80.2

Ground Clearance, Front (in) - 8.5

Ground Clearance, Rear (in) - 8.5

Cargo Box Length @ Floor (in) - 76.3

Cargo Box Width @ Top, Rear (in) - 50

Cargo Box Width @ Floor (in) - 50

Cargo Box Width @ Wheelhousings (in) - 48.1

Cargo Box (Area) Height (in) - 20.2

Tailgate Width (in) - 0

Cargo Volume (ft?) - 57.5

Seventh Gear Ratio (:1) - 0.84

Eighth Gear Ratio (:1) - 0.67

Model Group - Ram Pickups

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 6.4

Engine Camshaft - OHV

Engine Block Type - iron

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - Mexico Ram Truck
