Firecracker Red Clearcoat

Black, Cloth Seats W/Adjustable Head Restraints

TRANSMISSION: 5-SPEED AUTOMATIC (W5A580)

QUICK ORDER PACKAGE 24S

CONNECTIVITY GROUP

POWER CONVENIENCE GROUP

BLACK 3-PIECE HARD TOP

DEEP TINT SUNSCREEN WINDOWS

SIRIUS SATELLITE RADIO

MOPAR SLUSH MATS

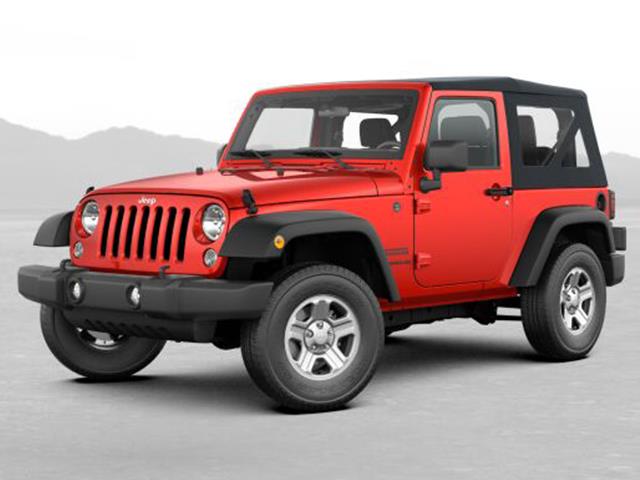

Vehicle Name - Jeep Wrangler

Body Style - Sport Utility

Body Code - S

Drivetrain - Four Wheel Drive

Passenger Capacity - 4

Base Curb Weight (lbs) - 3892

Gross Axle Wt Rating - Front (lbs) - 2775

Gross Axle Wt Rating - Rear (lbs) - 3200

Curb Weight - Front (lbs) - 1966

Curb Weight - Rear (lbs) - 1913

Gross Vehicle Weight Rating Cap (lbs) - 4900

Fuel Economy Est-Combined (MPG) - 18

EPA Fuel Economy Est - City (MPG) - 17

EPA Fuel Economy Est - Hwy (MPG) - 21

Gross Combined Wt Rating (lbs) - 6042

Dead Weight Hitch - Max Trailer Wt. (lbs) - 2000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 200

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 2000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 200

Maximum Trailering Capacity (lbs) - 2000

Engine Order Code - ERB

Engine Type - Regular Unleaded V-6

Displacement - 3.6 L/220

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 285 @ 6400

SAE Net Torque @ RPM - 260 @ 4800

Trans Order Code - DGJ

Trans Type - 5

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 3.59

Second Gear Ratio (:1) - 2.19

Third Gear Ratio (:1) - 1.41

Fourth Gear Ratio (:1) - 1.00

Fifth Gear Ratio (:1) - 0.83

Sixth Gear Ratio (:1) - 0.80

Reverse Ratio (:1) - 3.16

Trans PTO Access - No

Transfer Case Model - Manual

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 600

Cold Cranking Amps @ 0? F (2nd) - 600

Tons/yr of CO2 Emissions @ 15K mi/year - 9.8

Maximum Alternator Capacity (amps) - 160

Engine Oil Cooler - Regular Duty

Suspension Type - Front - Leading Link

Suspension Type - Rear - Trailing Arm

Axle Type - Front - Non-Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 3.73

Axle Ratio (:1) - Rear - 3.73

Front Tire Order Code - TUF

Rear Tire Order Code - TUF

Spare Tire Order Code - TBZ

Front Tire Size - P245/75SR16

Rear Tire Size - P245/75SR16

Spare Tire Size - Full-Size

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - 712

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - 712

Front Wheel Size (in) - 17 X 7.5

Rear Wheel Size (in) - 17 X 7.5

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Aluminum

Steering Type - Re-Circulating Ball

Turning Diameter - Curb to Curb (ft) - 34.6

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 11.9

Rear Brake Rotor Diam x Thickness (in) - 11.9

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 18.6

Front Head Room (in) - 41.3

Front Leg Room (in) - 41

Front Shoulder Room (in) - 55.8

Front Hip Room (in) - 55.6

Second Head Room (in) - 40.3

Second Leg Room (in) - 35.6

Second Shoulder Room (in) - 44.7

Second Hip Room (in) - 44.7

Wheelbase (in) - 95.4

Length, Overall (in) - 164.3

Width, Max w/o mirrors (in) - 73.7

Height, Overall (in) - 72.5

Track Width, Front (in) - 61.9

Track Width, Rear (in) - 61.9

Min Ground Clearance (in) - 8.8

Liftover Height (in) - 27.8

Cargo Volume to Seat 1 (ft?) - 55

Cargo Volume to Seat 2 (ft?) - 12.8

Model Group - Wrangler

Vehicle Segment - Compact Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 3.6

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States MPV
