50 STATE EMISSIONS

MAGNETIC GRAY METALLIC

TOW PACKAGE

ALLOY WHEEL LOCKS

ALL WEATHER LINERS & DOOR SILL PROTECTORS

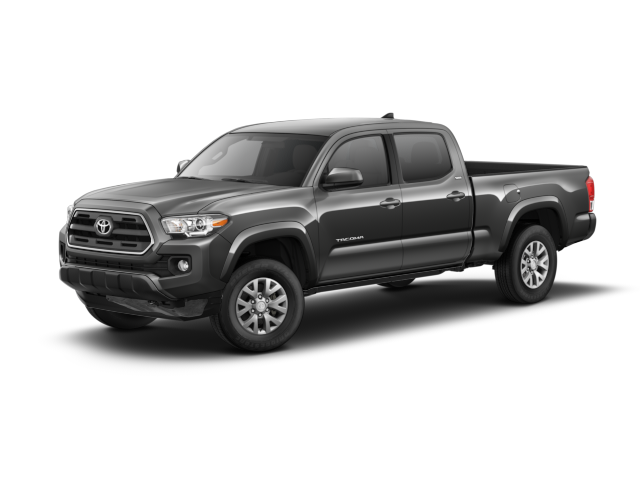

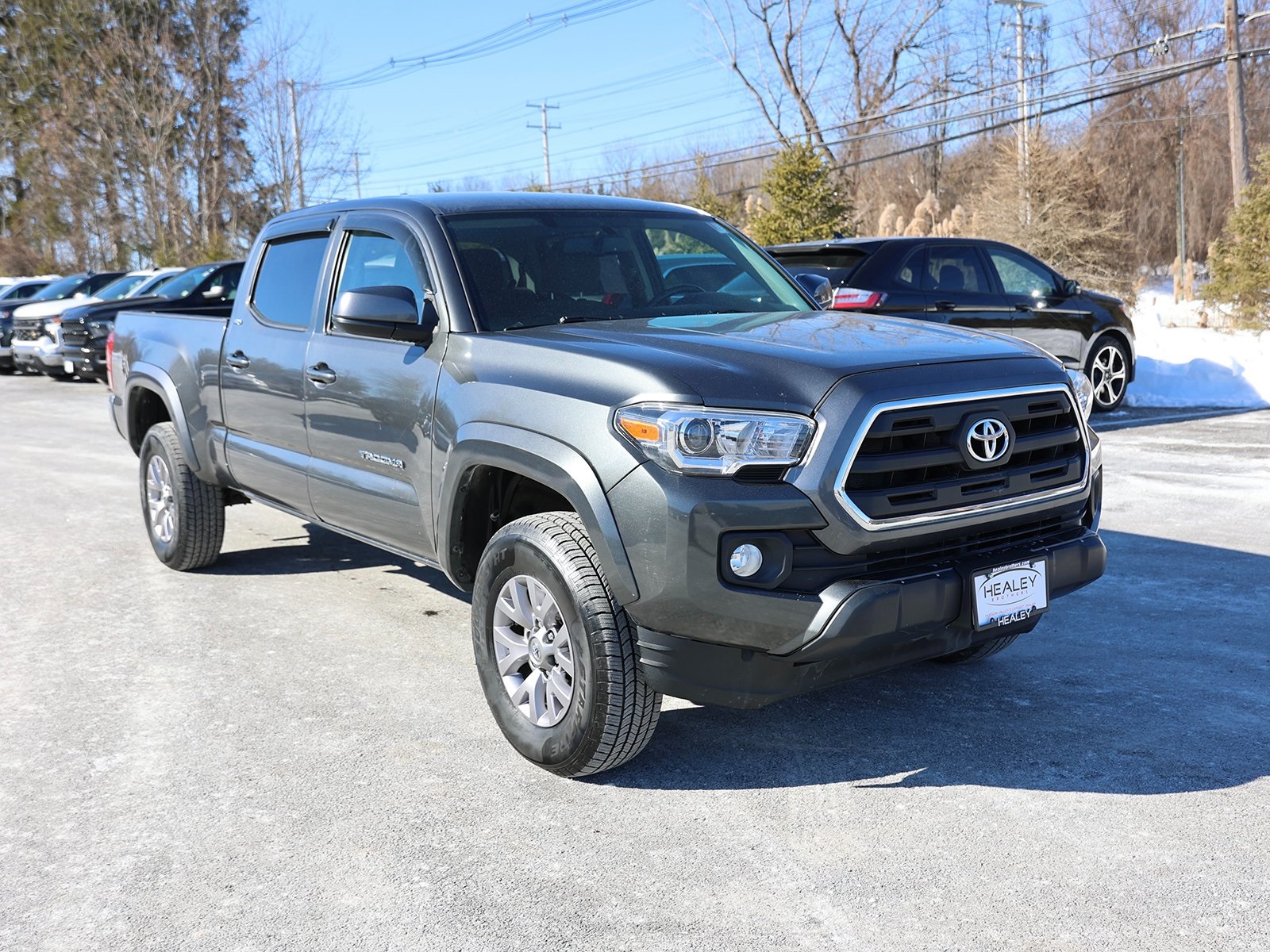

Vehicle Name - Toyota Tacoma

Body Style - Double Cab

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 4480

Gross Vehicle Weight Rating Cap (lbs) - 5600

Fuel Economy Est-Combined (MPG) - 20

EPA Fuel Economy Est - City (MPG) - 18

EPA Fuel Economy Est - Hwy (MPG) - 23

Gross Combined Wt Rating (lbs) - 11360

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 6400

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 640

Maximum Trailering Capacity (lbs) - 6400

Engine Order Code -

Engine Type - Regular Unleaded V-6

Displacement - 3.5 L/211

Fuel System - Port/Direct Injection

SAE Net Horsepower @ RPM - 278 @ 6000

SAE Net Torque @ RPM - 265 @ 4600

Trans Order Code -

Trans Type - 6

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 3.60

Second Gear Ratio (:1) - 2.09

Third Gear Ratio (:1) - 1.49

Fourth Gear Ratio (:1) - 1.00

Fifth Gear Ratio (:1) - 0.69

Sixth Gear Ratio (:1) - 0.58

Reverse Ratio (:1) - 3.73

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Tons/yr of CO2 Emissions @ 15K mi/year - 8.8

Maximum Alternator Capacity (amps) - 130

Engine Oil Cooler - Regular Duty

Suspension Type - Front - Double Wishbone

Suspension Type - Rear - Leaf

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 3.91

Axle Ratio (:1) - Rear - 3.91

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - P245/75SR16

Rear Tire Size - P245/75SR16

Spare Tire Size - Full-Size

Front Wheel Size (in) - 16 X 7

Rear Wheel Size (in) - 16 X 7

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 44.1

Brake Type - Front Disc/Rear Drum

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 10.8

Rear Brake Rotor Diam x Thickness (in) - 10

Drum - Rear (Yes or ) - Yes

Rear Drum Diam x Width (in) - 10

Fuel Tank Capacity, Approx (gal) - 21.1

Front Head Room (in) - 39.7

Front Leg Room (in) - 42.9

Front Shoulder Room (in) - 58.3

Front Hip Room (in) - 57.2

Second Head Room (in) - 38.3

Second Leg Room (in) - 32.6

Second Shoulder Room (in) - 58.9

Second Hip Room (in) - 56.3

Wheelbase (in) - 140.6

Length, Overall (in) - 225.5

Width, Max w/o mirrors (in) - 74.4

Height, Overall (in) - 70.6

Cargo Box Length @ Floor (in) - 73.7

Cargo Box Width @ Top, Rear (in) - 56.7

Cargo Box Width @ Floor (in) - 56.7

Cargo Box Width @ Wheelhousings (in) - 41.5

Cargo Box (Area) Height (in) - 19.1

Model Group - Tacoma

Vehicle Segment - Small Pick-up

Vehicle Type - Double Cab

Body Cab Style - Crew Cab

Bed Style - regular composite

Engine Displacement Units - 3.5

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - Mexico Toyota Trucks
