Bright White Clearcoat

Black, Cloth Bucket Seats

QUICK ORDER PACKAGE 22B TRADESMAN

PASSENGER DOUBLE SEAT

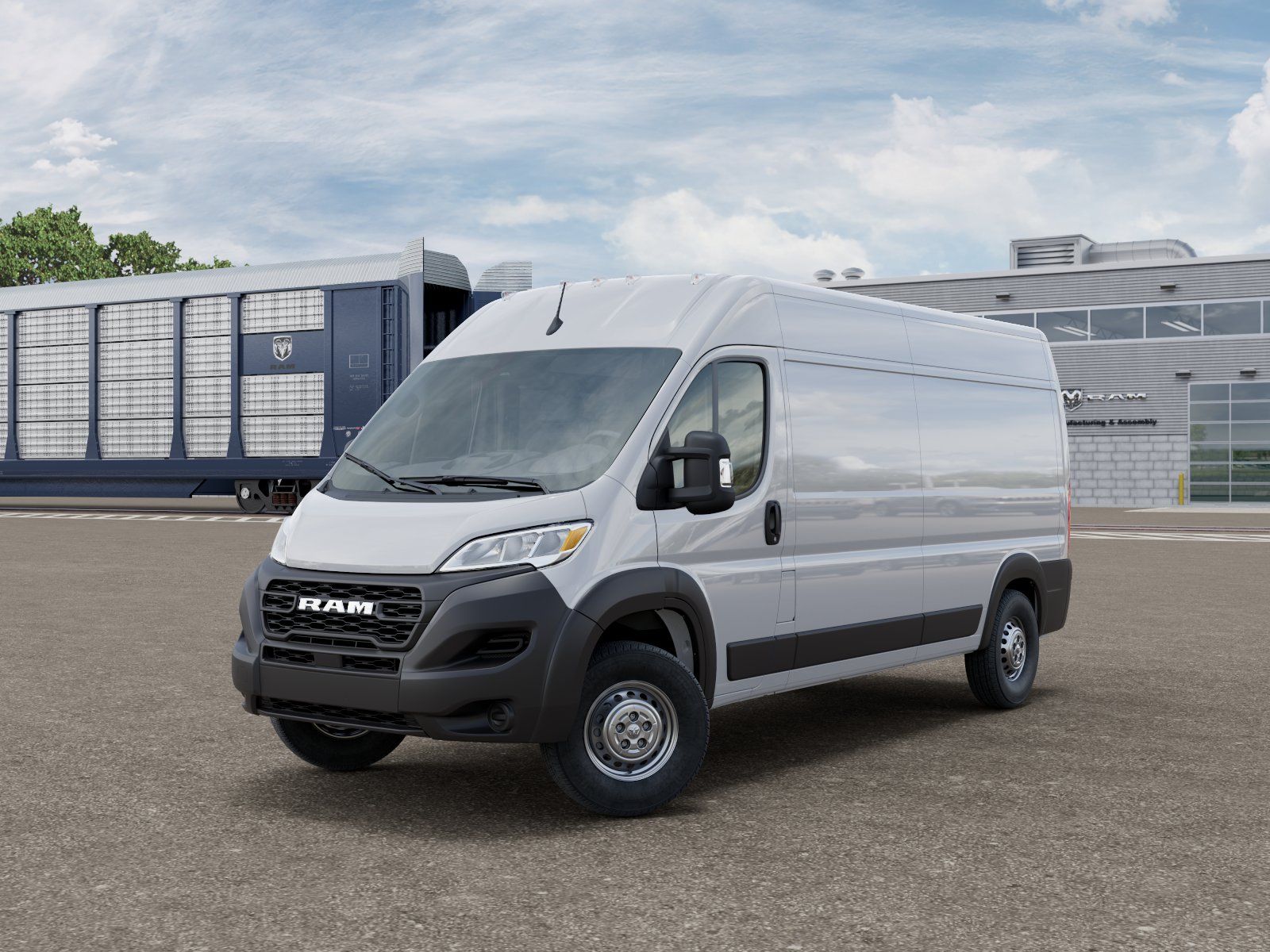

Vehicle Name - Ram ProMaster Cargo Van

Body Style - Cargo Van

Body Code - V

Drivetrain - Front Wheel Drive

Passenger Capacity - 3

Base Curb Weight (lbs) - 4900

Gross Axle Wt Rating - Front (lbs) - 4629

Gross Axle Wt Rating - Rear (lbs) - 5291

Curb Weight - Front (lbs) - 3083

Curb Weight - Rear (lbs) - 1817

Gross Vehicle Weight Rating Cap (lbs) - 8900

Gross Combined Wt Rating (lbs) - 12000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 6480

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 648

Maximum Trailering Capacity (lbs) - 6480

Engine Order Code - ERF

Engine Type - Regular Unleaded V-6

Displacement - 3.6 L/220

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 276 @ 6400

SAE Net Torque @ RPM - 250 @ 4400

Trans Order Code - DFH

Trans Type - 9

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.71

Second Gear Ratio (:1) - 2.84

Third Gear Ratio (:1) - 1.91

Fourth Gear Ratio (:1) - 1.38

Fifth Gear Ratio (:1) - 1.00

Sixth Gear Ratio (:1) - 0.81

Reverse Ratio (:1) - 3.81

Trans PTO Access - No

Transfer Case Model - None

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 950

Cold Cranking Amps @ 0? F (2nd) - 950

Maximum Alternator Capacity (amps) - 220

Engine Oil Cooler - Regular Duty

Suspension Type - Front - Strut

Suspension Type - Rear - Leaf

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 4.08

Axle Ratio (:1) - Rear - 4.08

Front Tire Order Code - TU5

Rear Tire Order Code - TU5

Spare Tire Order Code - TBB

Front Tire Size - LT225/75R16

Rear Tire Size - LT225/75R16

Spare Tire Size - Full-Size

Front Wheel Size (in) - 16 X 6

Rear Wheel Size (in) - 16 X 6

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Steel

Rear Wheel Material - Steel

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 46.8

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 11.8

Rear Brake Rotor Diam x Thickness (in) - 11.8

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 24

Front Head Room (in) - 43

Front Leg Room (in) - 38.8

Front Shoulder Room (in) - 74.8

Front Hip Room (in) - 65.9

Wheelbase (in) - 159

Length, Overall (in) - 236.2

Width, Max w/o mirrors (in) - 80.3

Height, Overall (in) - 102.1

Overhang, Front (in) - 37.6

Ground to Top of Load Floor (in) - 21

Ground Clearance, Front (in) - 7.7

Ground Clearance, Rear (in) - 7.7

Rear Door Type - Split Swing-Out

Side Door Type - Sliding

Cargo Area Length @ Floor to Seat 1 (in) - 145.9

Cargo Area Width @ Beltline (in) - 75.6

Cargo Box Width @ Wheelhousings (in) - 55.8

Cargo Box (Area) Height (in) - 76

Seventh Gear Ratio (:1) - 0.70

Eighth Gear Ratio (:1) - 0.58

Model Group - ProMaster

Vehicle Segment - Large Van

Vehicle Type - Cargo Van

Body Cab Style - Cargo Van

Engine Displacement Units - 3.6

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - Mexico Ram Truck
