Bright White Clearcoat

Lt Frost Beige/Brown, Leather Trimmed Bucket Seats -Inc: Bucket Seats, Heated Second Row Seats, Ventilated Front Seats, Full Length Upgraded Floor Console

ENGINE: 6.7L I6 CUMMINS TURBO DIESEL

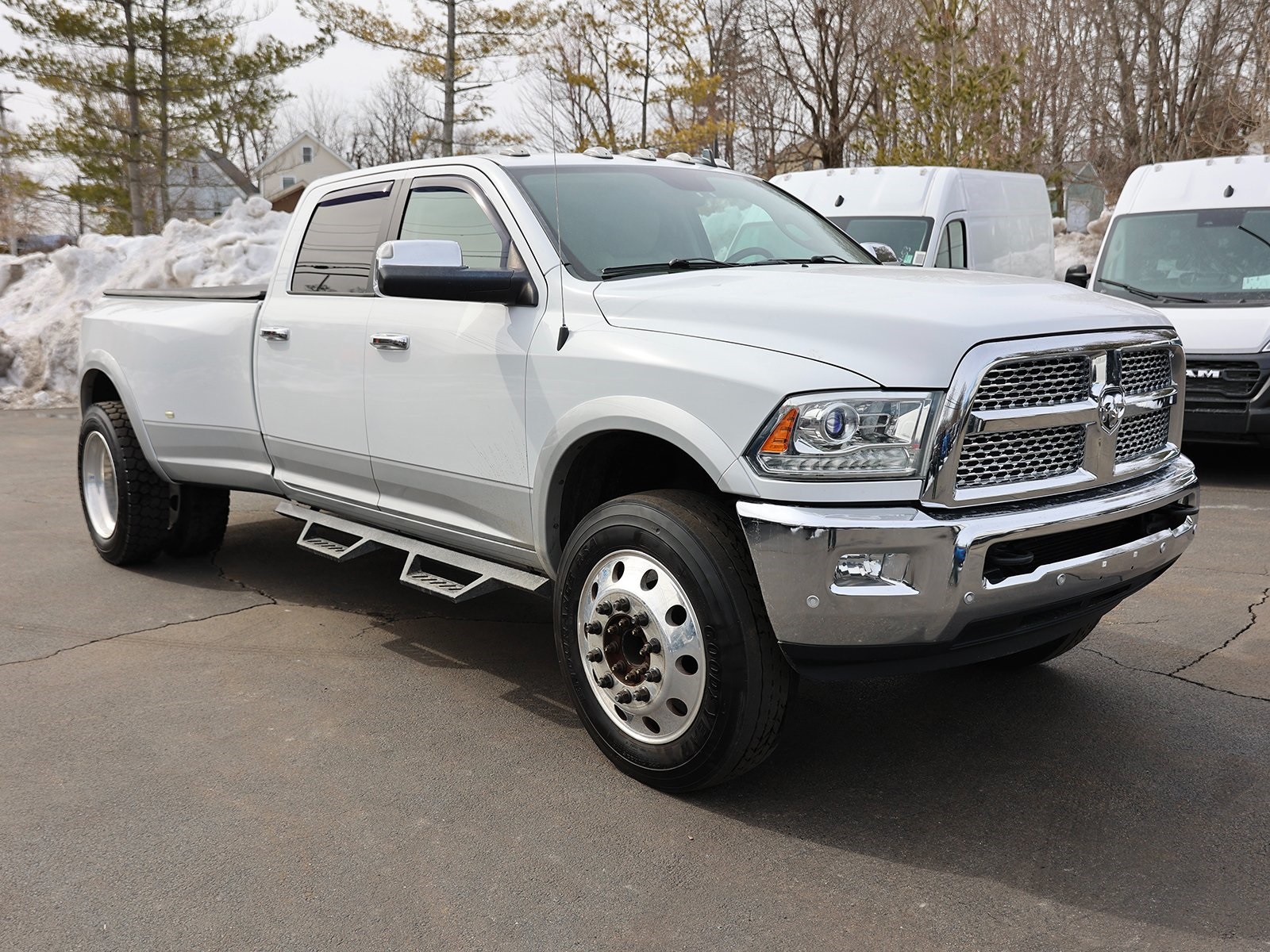

Vehicle Name - Ram 3500

Body Style - Crew Cab

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 7334

Gross Axle Wt Rating - Front (lbs) - 5500

Gross Axle Wt Rating - Rear (lbs) - 9750

Curb Weight - Front (lbs) - 4070

Curb Weight - Rear (lbs) - 2943

Gross Vehicle Weight Rating Cap (lbs) - 11400

Gross Combined Wt Rating (lbs) - 23400

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 15540

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 1554

Maximum Trailering Capacity (lbs) - 15540

Engine Order Code - ETK

Engine Type - Intercooled Turbo Diesel I-6

Displacement - 6.7 L/408

Fuel System - Diesel Direct Injection

SAE Net Horsepower @ RPM - 350 @ 2800

SAE Net Torque @ RPM - 660 @ 1500

Trans Order Code - DEG

Trans Type - 6

Trans Description Cont. - Manual w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 3.75

Second Gear Ratio (:1) - 2.00

Third Gear Ratio (:1) - 1.34

Fourth Gear Ratio (:1) - 1.30

Fifth Gear Ratio (:1) - 0.77

Sixth Gear Ratio (:1) - 0.63

Reverse Ratio (:1) - 3.54

Trans Power Take Off - Yes

Trans PTO Access - Yes

Transfer Case Model - Electronic

Transfer Case Power Take Off - Yes

Cold Cranking Amps @ 0? F (Primary) - 730

Cold Cranking Amps @ 0? F (2nd) - 730

Maximum Alternator Capacity (amps) - 160 & 160

Engine Oil Cooler - None

Suspension Type - Front - Multi-Link

Suspension Type - Rear - Leaf

Axle Type - Front - Non-Independent

Axle Type - Rear - Rigid Axle

Axle Capacity - Front (lbs) - 6000

Axle Capacity - Rear (lbs) - 9350

Axle Ratio (:1) - Front - 3.42

Axle Ratio (:1) - Rear - 3.42

Front Tire Order Code - TCP

Rear Tire Order Code - TCP

Spare Tire Order Code -

Front Tire Size - LT235/80SR17

Rear Tire Size - LT235/80SR17

Spare Tire Size - Full-Size

Front Tire Capacity (lbs) - 6170

Rear Tire Capacity (lbs) - 10740

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - 626

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - 626

Front Wheel Size (in) - 17 X 6

Rear Wheel Size (in) - 17 X 6

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Re-Circulating Ball

Turning Diameter - Curb to Curb (ft) - 53

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 14.2

Rear Brake Rotor Diam x Thickness (in) - 14.1

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 32

Front Head Room (in) - 41

Front Leg Room (in) - 41

Front Shoulder Room (in) - 66

Front Hip Room (in) - 63.2

Second Head Room (in) - 39.9

Second Leg Room (in) - 40.3

Second Shoulder Room (in) - 65.7

Second Hip Room (in) - 63.2

Wheelbase (in) - 169.5

Length, Overall (in) - 259.3

Width, Max w/o mirrors (in) - 79.4

Height, Overall (in) - 79.6

Overhang, Front (in) - 36.9

Overhang, Rear w/o bumper (in) - 50.5

Cab to Axle (in) - 56.8

Ground to Top of Load Floor (in) - 39

Ground Clearance, Front (in) - 8.6

Ground Clearance, Rear (in) - 8.6

Cargo Box Length @ Floor (in) - 98.3

Cargo Box Width @ Top, Rear (in) - 66.4

Cargo Box Width @ Floor (in) - 66.4

Cargo Box Width @ Wheelhousings (in) - 51

Cargo Box (Area) Height (in) - 20.2

Cargo Volume (ft?) - 74.9

Model Group - Ram Pickups

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 6.7

Engine Camshaft - OHV

Engine Block Type - iron

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - Mexico Ram Truck
