Atlas Blue Metallic

Black

EQUIPMENT GROUP 200A MID

FRONT LICENSE PLATE BRACKET

TOUGH BED SPRAY-IN BEDLINER

TRAY STYLE FLOOR LINER W/CARPET MATS

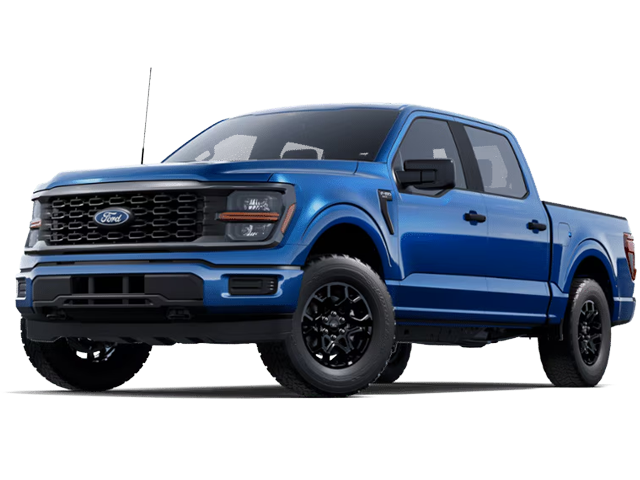

Vehicle Name - Ford F-150

Body Style - SuperCrew Cab

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 4941

Gross Axle Wt Rating - Front (lbs) - 3600

Gross Axle Wt Rating - Rear (lbs) - 3400

Curb Weight - Front (lbs) - 2930

Curb Weight - Rear (lbs) - 2011

Gross Vehicle Weight Rating Cap (lbs) - 7100

Fuel Economy Est-Combined (MPG) - 20 (2024)

EPA Fuel Economy Est - City (MPG) - 18 (2024)

EPA Fuel Economy Est - Hwy (MPG) - 24 (2024)

Gross Combined Wt Rating (lbs) - 13000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 7900

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 790

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - 7200

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - 1800

Maximum Trailering Capacity (lbs) - 7900

Engine Order Code - 99P

Engine Type - Twin Turbo Regular Unleaded V-6

Displacement - 2.7 L/164

Fuel System - Port/Direct Injection

SAE Net Horsepower @ RPM - 325 @ 5000

SAE Net Torque @ RPM - 400 @ 3500

Trans Order Code - 44G

Trans Type - 10

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.70

Second Gear Ratio (:1) - 2.98

Third Gear Ratio (:1) - 2.15

Fourth Gear Ratio (:1) - 1.77

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.27

Reverse Ratio (:1) - 4.87

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 760

Cold Cranking Amps @ 0? F (2nd) - 760

Tons/yr of CO2 Emissions @ 15K mi/year - 8.9 (2024)

Maximum Alternator Capacity (amps) - 200

Engine Oil Cooler - None

Suspension Type - Front - Double Wishbone

Suspension Type - Rear - Leaf

Spring Capacity - Front (lbs) - 3600

Spring Capacity - Rear (lbs) - 3500

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Capacity - Front (lbs) - 4050

Axle Capacity - Rear (lbs) - 4800

Axle Ratio (:1) - Front - 3.55

Axle Ratio (:1) - Rear - 3.55

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - LT265/70SR18

Rear Tire Size - LT265/70SR18

Spare Tire Size - Full-Size

Front Tire Capacity (lbs) - 3900

Rear Tire Capacity (lbs) - 4332

Front Wheel Size (in) - 20 X 8.5

Rear Wheel Size (in) - 20 X 8.5

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 47.8

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.8

Rear Brake Rotor Diam x Thickness (in) - 13.2

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 36

Front Head Room (in) - 40.8

Front Leg Room (in) - 43.9

Front Shoulder Room (in) - 66.7

Front Hip Room (in) - 62.5

Second Head Room (in) - 40.4

Second Leg Room (in) - 43.6

Second Shoulder Room (in) - 66

Second Hip Room (in) - 62.6

Wheelbase (in) - 145

Length, Overall (in) - 231.7

Width, Max w/o mirrors (in) - 79.9

Height, Overall (in) - 77.2

Overhang, Front (in) - 37.6

Ground to Top of Load Floor (in) - 34.9

Ground Clearance, Front (in) - 9.4

Ground Clearance, Rear (in) - 9.4

Cargo Box Length @ Floor (in) - 66

Cargo Box Width @ Top, Rear (in) - 65.2

Cargo Box Width @ Floor (in) - 65.2

Cargo Box Width @ Wheelhousings (in) - 50.6

Cargo Box (Area) Height (in) - 21.4

Tailgate Width (in) - 60.3

Cargo Volume (ft?) - 52.8

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Model Group - F-Series Pickups

Vehicle Segment - Large Pick-up

Vehicle Type - SuperCrew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 2.7

Engine Camshaft - DOHC

Engine Block Type - iron

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States Ford
