Mosaic Black Metallic

Maple Sugar, Sueded Microfiber Seat Trim

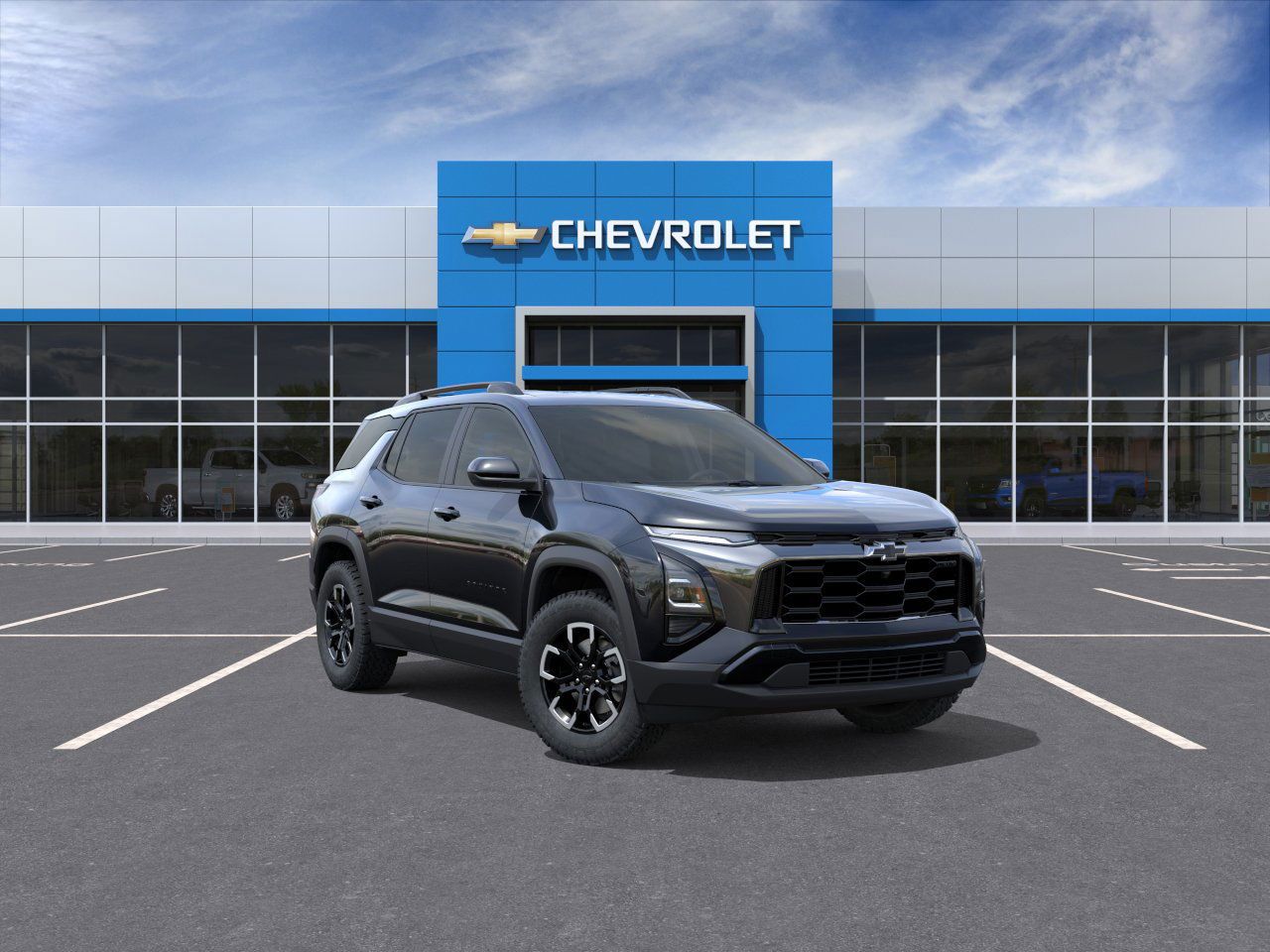

Vehicle Name - Chevrolet Equinox

Body Style - Sport Utility Vehicle

Drivetrain - All Wheel Drive

EPA Classification - 4WD Sport Utility Vehicle

Passenger Capacity - 5

Passenger Volume (ft?) - 100.1

Base Curb Weight (lbs) - 3607

Tons/yr of CO2 Emissions @ 15K mi/year - 6.8

Fuel Economy Est-Combined (MPG) - 26

EPA Fuel Economy Est - City (MPG) - 25

EPA Fuel Economy Est - Hwy (MPG) - 29

Dead Weight Hitch - Max Trailer Wt. (lbs) - 1500

Dead Weight Hitch - Max Tongue Wt. (lbs) - - TBD -

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 1500

Wt Distributing Hitch - Max Tongue Wt. (lbs) - - TBD -

Engine Order Code - LSD

Engine Type - Turbocharged Gas I4

Displacement - 1.5L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 175 @ 5600

SAE Net Torque @ RPM - 203 @ 2000-4000

Trans Order Code - MGH

Trans Type - 8

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.69

Second Gear Ratio (:1) - 3.31

Third Gear Ratio (:1) - 3.01

Fourth Gear Ratio (:1) - 1.92

Fifth Gear Ratio (:1) - 1.45

Sixth Gear Ratio (:1) - 1.00

Seventh Gear Ratio (:1) - 0.75

Eighth Gear Ratio (:1) - 0.62

Reverse Ratio (:1) - - TBD -

Clutch Size (in) - N/A

Final Drive Axle Ratio (:1) - 3.47

Transfer Case Gear Ratio (:1), High - - TBD -

Transfer Case Gear Ratio (:1), Low - - TBD -

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - - TBD -

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Four-Link

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - N/A

Shock Absorber Diameter - Rear (mm) - N/A

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - RJK

Rear Tire Order Code - RJK

Spare Tire Order Code - QCL

Front Tire Size - 235/65R17

Rear Tire Size - 235/65R17

Spare Tire Size - T125/70R17

Front Wheel Size (in) - 17 x - TBD -

Rear Wheel Size (in) - 17 x - TBD -

Spare Wheel Size (in) - 17 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Pwr Rack & Pinion

Steering Ratio (:1), Overall - 17

Lock to Lock Turns (Steering) - - TBD -

Turning Diameter - Curb to Curb (ft) - - TBD -

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - - TBD -

Rear Brake Rotor Diam x Thickness (in) - - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 15.6

Front Head Room (in) - 38.2

Front Leg Room (in) - 40.9

Front Shoulder Room (in) - 57.7

Front Hip Room (in) - 54.2

Second Head Room (in) - 37.8

Second Leg Room (in) - 39.9

Second Shoulder Room (in) - 55.8

Second Hip Room (in) - 51.7

Wheelbase (in) - 107.5

Length, Overall (in) - 183.2

Width, Max w/o mirrors (in) - 74.9

Height, Overall (in) - 65.6

Track Width, Front (in) - 63.8

Track Width, Rear (in) - 63.9

Min Ground Clearance (in) - 8.05

Rear Door Opening Height (in) - - TBD -

Rear Door Opening Width (in) - - TBD -

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - - TBD -

Cargo Area Length @ Floor to Seat 3 (in) -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - - TBD -

Liftover Height (in) - - TBD -

Cargo Volume to Seat 1 (ft?) - 63.5

Cargo Volume to Seat 2 (ft?) - 29.8

Cargo Volume to Seat 3 (ft?) -

Model Group - Equinox

Vehicle Segment - Compact Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 1.5

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - Mexico Chevrolet MPV
