Siren Red Tintcoat

Jet Black, Perforated Leather-Appointed Seat Trim

EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

ENGINE, 3.6L V6 SIDI (SPARK IGNITION DIRECT INJECTION) with VVT (Variable Valve Timing) (301 hp [224.4 kW] @ 6500 rpm, 272 lb-ft [367.2 N-m] @ 4800 rpm)

GVWR, 5300 LBS. (2404 KG)

AXLE, 3.39 FINAL DRIVE RATIO

PREMIER PREFERRED EQUIPMENT GROUP Includes Standard Equipment

AUDIO SYSTEM, CHEVROLET MYLINK RADIO WITH NAVIGATION, 7" DIAGONAL COLOR TOUCH-SCREEN AM/FM/SIRIUSXM STEREO with MP3 playback capability, GPS navigation system, outside temperature indicator and Radio Data System (RDS), includes Bluetooth streaming audio for select phones; voice-activated technology for radio and phone; Hands-Free smartphone integration with Pandora and Stitcher; Gracenote (Playlist+, Album art)

ENHANCED CONVENIENCE PACKAGE includes (AH8) 8-way power front passenger seat, (TB5) power programmable rear liftgate and (UG1) Universal Home Remote

TECHNOLOGY PACKAGE includes (UHQ) Chevrolet MyLink radio with Navigation and (UZ8) Pioneer premium 8-speaker sound system

ALTERNATOR, 155 AMPS

SUSPENSION, RIDE AND HANDLING

EXHAUST, DUAL WITH PREMIUM TIPS

SUNROOF, POWER, TILT-SLIDING WITH EXPRESS-OPEN AND WIND DEFLECTOR

LICENSE PLATE BRACKET, FRONT

LIFTGATE, POWER PROGRAMMABLE REAR WITH FIXED GLASS

AUDIO SYSTEM FEATURE, PIONEER PREMIUM 250-WATT 8-SPEAKER SYSTEM includes mid-range speakers in each door, tweeters in A-pillars, a center channel speaker in upper IP and sub-woofer on the rear shelf

SEAT ADJUSTER, 8-WAY POWER FRONT PASSENGER INCLUDES POWER LUMBAR

UNIVERSAL HOME REMOTE

LPO, CARGO AREA CLOSE-OUT PANEL

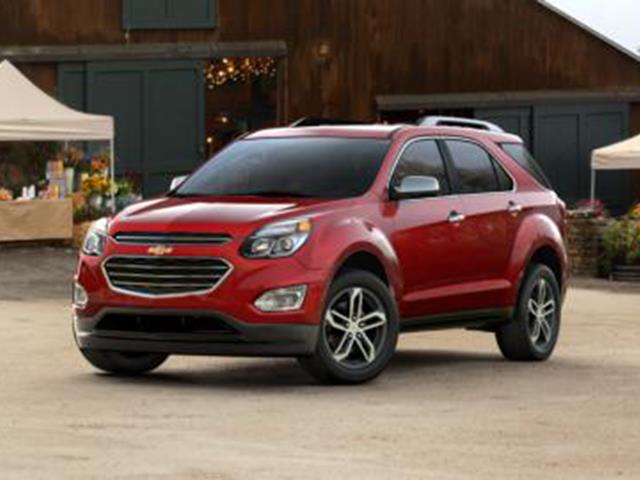

Vehicle Name - Chevrolet Equinox

Body Style - Sport Utility Vehicle

Drivetrain - All Wheel Drive

EPA Classification - 4WD Sport Utility Vehicle

Passenger Capacity - 5

Passenger Volume (ft?) - 99.7

Base Curb Weight (lbs) - 4168

Tons/yr of CO2 Emissions @ 15K mi/year - 9.8

EPA Greenhouse Gas Score -

Fuel Economy Est-Combined (MPG) - 18

EPA Fuel Economy Est - City (MPG) - 16

EPA Fuel Economy Est - Hwy (MPG) - 23

Dead Weight Hitch - Max Trailer Wt. (lbs) - 3500

Dead Weight Hitch - Max Tongue Wt. (lbs) - 350

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 3500

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 350

Engine Order Code - LFX

Engine Type - Gas V6

Displacement - 3.6/217

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 301 @ 6500

SAE Net Torque @ RPM - 272 @ 4800

Trans Order Code - MX0

Trans Type - 6

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.48

Second Gear Ratio (:1) - 2.87

Third Gear Ratio (:1) - 1.84

Fourth Gear Ratio (:1) - 1.41

Fifth Gear Ratio (:1) - 1.00

Sixth Gear Ratio (:1) - 0.74

Reverse Ratio (:1) - 2.88

Clutch Size (in) -

Final Drive Axle Ratio (:1) - 3.53

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - - TBD -

Cold Cranking Amps @ 0? F (Primary) - 660

Maximum Alternator Capacity (amps) - 155

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson strut

Suspension Type - Rear - Multi link

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - N/A

Shock Absorber Diameter - Rear (mm) - N/A

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - QNT

Rear Tire Order Code - QNT

Spare Tire Order Code - N/A

Front Tire Size - P235/55R18

Rear Tire Size - P235/55R18

Spare Tire Size - Compact

Front Wheel Size (in) - 18 x - TBD -

Rear Wheel Size (in) - 18 x - TBD -

Spare Wheel Size (in) - Compact

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Pwr

Steering Ratio (:1), Overall - - TBD -

Lock to Lock Turns (Steering) - 3.46

Turning Diameter - Curb to Curb (ft) - 40.0

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.6 x 1.18

Rear Brake Rotor Diam x Thickness (in) - 11.9 x 0.78

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 20.9

Front Head Room (in) - 39.80

Front Leg Room (in) - 41.20

Front Shoulder Room (in) - 55.80

Front Hip Room (in) - 54.60

Second Head Room (in) - 39.20

Second Leg Room (in) - 39.90

Second Shoulder Room (in) - 55.30

Second Hip Room (in) - 51.10

Wheelbase (in) - 112.50

Length, Overall (in) - 187.80

Width, Max w/o mirrors (in) - 72.50

Height, Overall (in) - 69.30

Track Width, Front (in) - 62.90

Track Width, Rear (in) - 62.10

Min Ground Clearance (in) - 6.90

Rear Door Opening Height (in) - 28.80

Rear Door Opening Width (in) - - TBD -

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - - TBD -

Cargo Area Length @ Floor to Seat 3 (in) -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - - TBD -

Liftover Height (in) - 28.80

Cargo Volume to Seat 1 (ft?) - 63.7

Cargo Volume to Seat 2 (ft?) - 31.5

Cargo Volume to Seat 3 (ft?) -

Model Group - Equinox

Vehicle Segment - Compact Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 3.6

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - Canada Reserved Was Chevrolet MPV
