EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

REAR AXLE, 3.23 RATIO

RST PREFERRED EQUIPMENT GROUP

WHEELS, 20" X 9" (50.8 CM X 22.9 CM) PAINTED ALUMINUM

TIRES, 275/60R20SL ALL-TERRAIN, BLACKWALL

TIRE, SPARE 255/80R17SL ALL-SEASON, BLACKWALL

SUMMIT WHITE

JET BLACK, CLOTH SEAT TRIM

Z71 OFF-ROAD AND PROTECTION PACKAGE

Z71 OFF-ROAD PACKAGE

BED PROTECTION PACKAGE

HILL DESCENT CONTROL

TRANSFER CASE, TWO-SPEED

AIR FILTER, HEAVY-DUTY

SKID PLATES

EXHAUST, DUAL WITH POLISHED OUTLETS

CHEVYTEC SPRAY-ON BEDLINER, BLACK WITH CHEVROLET LOGO

WHEELHOUSE LINERS, REAR

LICENSE PLATE KIT, FRONT

NOT EQUIPPED WITH HEATED OR VENTILATED FRONT SEATS, SEE DEALER FOR DETAILS

LPO, ALL-WEATHER FLOOR LINERS, 1ST AND 2ND ROWS

NOT EQUIPPED WITH HEATED STEERING WHEEL, SEE DEALER FOR DETAILS

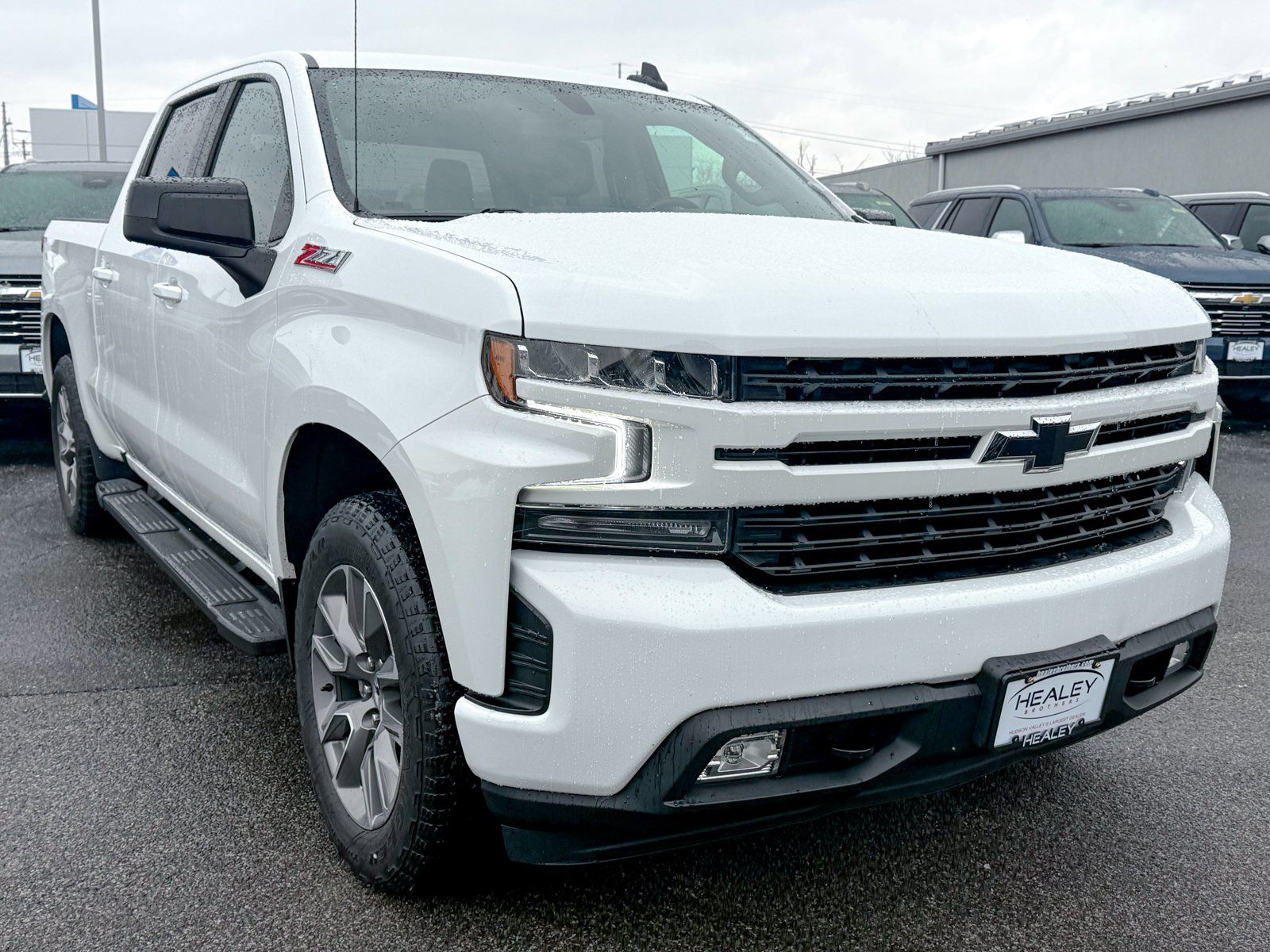

Vehicle Name - Chevrolet Silverado 1500 LTD

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 6

Gross Axle Wt Rating - Front (lbs) - 3800

Gross Axle Wt Rating - Rear (lbs) - 3800

Curb Weight - Front (lbs) - 2839

Curb Weight - Rear (lbs) - 1977

Fuel Economy Est-Combined (MPG) - 17

EPA Fuel Economy Est - City (MPG) - 15

EPA Fuel Economy Est - Hwy (MPG) - 19

Tons/yr of CO2 Emissions @ 15K mi/year - 10.4

Gross Vehicle Weight Rating Cap (lbs) - 7100

Gross Combined Wt Rating (lbs) - 16800

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 11100

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 1110

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - 10300

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - 2575

Maximum Trailering Capacity (lbs) - 13200

Engine Type - Gas V8

Fuel System - Direct Injection

Engine Order Code - L84

Displacement - 5.3L/325

SAE Net Horsepower @ RPM - 355 @ 5600

SAE Net Torque @ RPM - 383 @ 4100

Trans Order Code - MQE

Trans Type - 8

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.56

Second Gear Ratio (:1) - 2.97

Third Gear Ratio (:1) - 2.08

Fourth Gear Ratio (:1) - 1.69

Fifth Gear Ratio (:1) - 1.27

Sixth Gear Ratio (:1) - 1.00

Seventh Gear Ratio (:1) - 0.85

Eighth Gear Ratio (:1) - 0.65

Ninth Gear Ratio (:1) -

Tenth Gear Ratio (:1) -

Reverse Ratio (:1) - 3.82

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - Magna MP3023/4

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - 2.69

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 730

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - 220

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - - TBD -

Frame Type - Box Ladder

Suspension Type - Front - Independent

Suspension Type - Rear - Solid Axle

Spring Capacity - Front (lbs) - 3800

Spring Capacity - Rear (lbs) - 3850

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - 3800

Axle Capacity - Rear (lbs) - 3800

Axle Ratio (:1) - Front - 3.23

Axle Ratio (:1) - Rear - 3.23

Shock Absorber Diameter - Front (mm) - 50.0

Shock Absorber Diameter - Rear (mm) - 50.0

Stabilizer Bar Diameter - Front (in) - 1.30

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QAE

Rear Tire Order Code - QAE

Spare Tire Order Code - QAQ

Front Tire Size - 275/60R20SL

Rear Tire Size - 275/60R20SL

Spare Tire Size - 255/80R17SL

Front Tire Capacity (lbs) - 3800

Rear Tire Capacity (lbs) - 3800

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - N/A

Front Wheel Size (in) - 20 x 9

Rear Wheel Size (in) - 20 x 9

Spare Wheel Size (in) - 17 x 8

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 46.9

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.5 x 1.18

Rear Brake Rotor Diam x Thickness (in) - 13.6 x 0.79

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 24

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 43.03

Front Leg Room (in) - 44.53

Front Shoulder Room (in) - 66.02

Front Hip Room (in) - 61.18

Second Head Room (in) - 40.12

Second Leg Room (in) - 43.4

Second Shoulder Room (in) - 65.16

Second Hip Room (in) - 60.24

Wheelbase (in) - 147.43

Length, Overall (in) - 231.7

Width, Max w/o mirrors (in) - 81.24

Height, Overall (in) - 75.51

Overhang, Front (in) - - TBD -

Overhang, Rear w/o bumper (in) - - TBD -

Front Bumper to Back of Cab (in) - - TBD -

Cab to Axle (in) - - TBD -

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - - TBD -

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 8.09

Ground Clearance, Rear (in) - 8.09

Cargo Box Length @ Floor (in) - 69.92

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - 71.4

Cargo Box Width @ Wheelhousings (in) - 50.63

Cargo Box (Area) Height (in) - 22.4

Tailgate Width (in) - - TBD -

Cargo Volume (ft?) - 62.9

Ext'd Cab Cargo Volume (ft?) - - TBD -

Model Group - Silverado

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 5.3

Engine Camshaft - OHV

Engine Block Type - aluminum

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States Chevrolet Trucks
