Cosmic Gray Mica

Ash, Fabric Seat Trim

CALIFORNIA PZEV EMISSIONS

8-WAY PWR DRIVER SEAT

PREFERRED ACCESSORY PKG

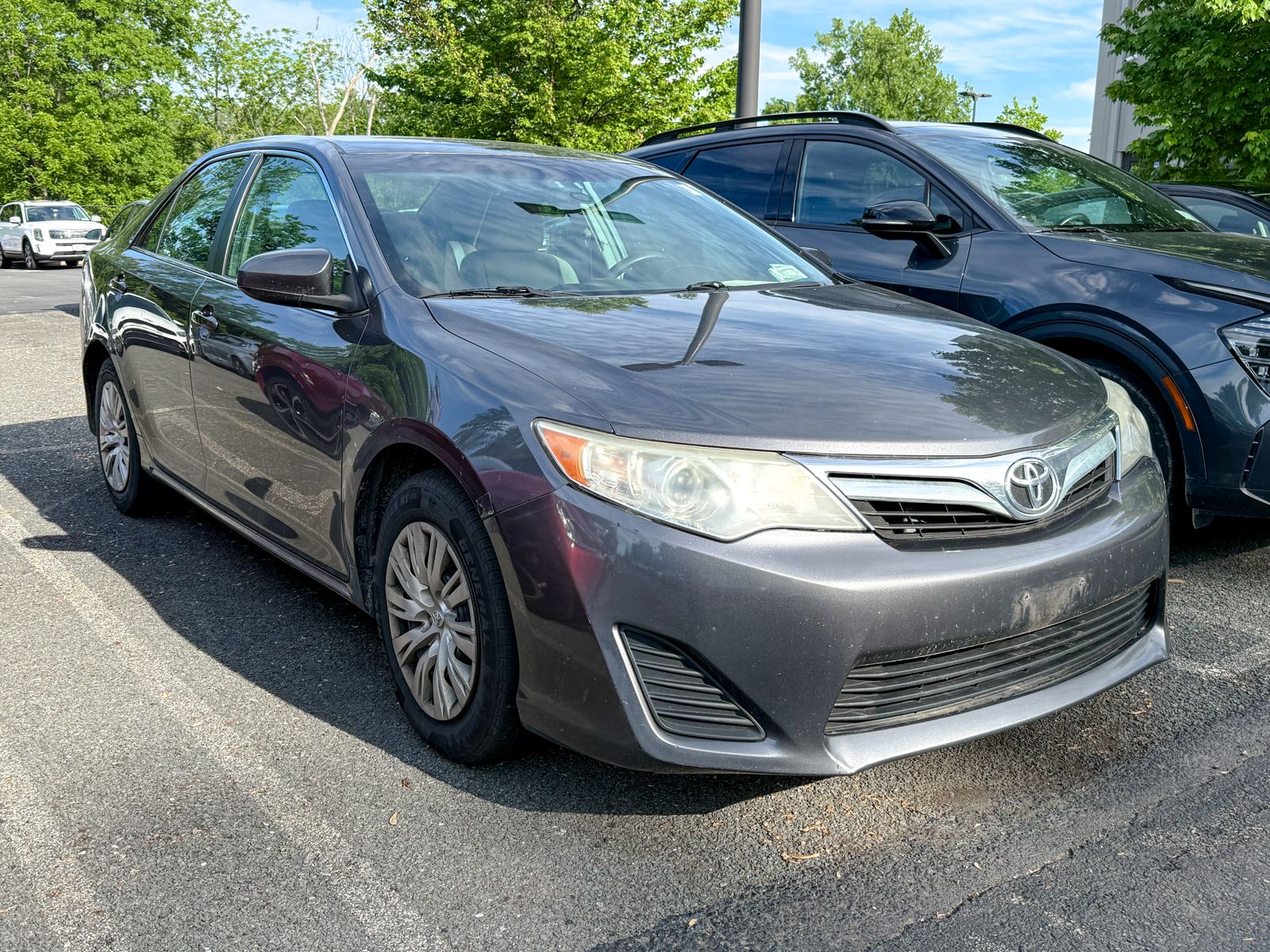

Vehicle Name - Toyota Camry

Body Style - Sedan

Drivetrain - Front Wheel Drive

EPA Classification - Midsize

Passenger Capacity - 5

Passenger Volume (ft?) - 101.3

Base Curb Weight (lbs) - 3190

EPA Greenhouse Gas Score - 7 (2012)

Fuel Economy Est-Combined (MPG) - 28

EPA Fuel Economy Est - City (MPG) - 25

EPA Fuel Economy Est - Hwy (MPG) - 35

Tons/yr of CO2 Emissions @ 15K mi/year - 6.6

Dead Weight Hitch - Max Trailer Wt. (lbs) - 1000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 100

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 1000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 100

Engine Order Code -

Engine Type - Gas I4

Displacement - 2.5L/152

Fuel System - Electronic Fuel Injection

SAE Net Horsepower @ RPM - 173 @ 6000

SAE Net Torque @ RPM - 165 @ 4100

Trans Order Code -

Trans Type - 6

Trans Description Cont. - Automatic w/Manual Shift

Trans Description Cont. Again -

First Gear Ratio (:1) - 3.300

Second Gear Ratio (:1) - 1.900

Third Gear Ratio (:1) - 1.420

Fourth Gear Ratio (:1) - 1.000

Fifth Gear Ratio (:1) - 0.713

Sixth Gear Ratio (:1) - 0.608

Reverse Ratio (:1) - 4.148

Clutch Size (in) -

Final Drive Axle Ratio (:1) - 3.634

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - - TBD -

Total Cooling System Capacity (qts) - 4.7

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Multi-Link

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - N/A

Shock Absorber Diameter - Rear (mm) - N/A

Stabilizer Bar Diameter - Front (in) - 0.95

Stabilizer Bar Diameter - Rear (in) - 0.63

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - - TBD -

Rear Tire Size - - TBD -

Spare Tire Size - Compact

Front Wheel Size (in) - 17 x - TBD -

Rear Wheel Size (in) - 17 x - TBD -

Spare Wheel Size (in) - Compact

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - - TBD -

Steering Type - Pwr Rack & Pinion

Steering Ratio (:1), Overall - 14.8

Lock to Lock Turns (Steering) - 2.85

Turning Diameter - Curb to Curb (ft) - 36.7

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 11.65 x - TBD -

Rear Brake Rotor Diam x Thickness (in) - 11.0 x - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 17.0

Front Head Room (in) - 37.9

Front Leg Room (in) - 41.6

Front Shoulder Room (in) - 58.0

Front Hip Room (in) - 54.5

Second Head Room (in) - 38.0

Second Leg Room (in) - 38.9

Second Shoulder Room (in) - 56.6

Second Hip Room (in) - 54.5

Wheelbase (in) - 109.3

Length, Overall (in) - 189.2

Width, Max w/o mirrors (in) - 71.7

Height, Overall (in) - 57.9

Track Width, Front (in) - 62.4

Track Width, Rear (in) - 62.0

Min Ground Clearance (in) - 6.1

Liftover Height (in) - - TBD -

Trunk Volume (ft?) - 15.4

Country of Origin - United States Toyota Passenger Cars
