BLACK

JET BLACK, PREMIUM CLOTH SEAT TRIM

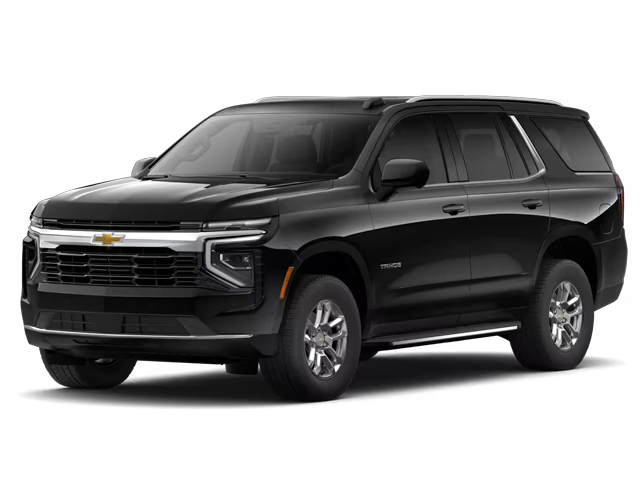

Vehicle Name - Chevrolet Tahoe

Body Style - Sport Utility Vehicle

Body Code -

Drivetrain - Four Wheel Drive

Passenger Capacity - 9

Gross Axle Wt Rating - Front (lbs) - 3700

Gross Axle Wt Rating - Rear (lbs) - 4300

Curb Weight - Front (lbs) - 2870

Curb Weight - Rear (lbs) - 2710

Gross Vehicle Weight Rating Cap (lbs) - 7600

Fuel Economy Est-Combined (MPG) - 16

EPA Fuel Economy Est - City (MPG) - 14

EPA Fuel Economy Est - Hwy (MPG) - 18

Tons/yr of CO2 Emissions @ 15K mi/year - - TBD -

Gross Combined Wt Rating (lbs) - 14500

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 8200

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 820

Fifth Wheel Hitch - Max Trailer Wt. (lbs) -

Fifth Wheel Hitch - Max Tongue Wt. (lbs) -

Maximum Trailering Capacity (lbs) - 8200

Engine Order Code - L84

Engine Type - Gas V8

Displacement - 5.3L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 355 @ 5600

SAE Net Torque @ RPM - 383 @ 4100

Trans Order Code - MHS

Trans Type - 10

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.69

Second Gear Ratio (:1) - 2.98

Third Gear Ratio (:1) - 2.14

Fourth Gear Ratio (:1) - 1.77

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.27

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Ninth Gear Ratio (:1) - 0.69

Tenth Gear Ratio (:1) - 0.63

Reverse Ratio (:1) - 4.86

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model -

Transfer Case Gear Ratio (:1), High - 1

Transfer Case Gear Ratio (:1), Low - - TBD -

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 730

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - 220

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - Yes

Frame Type - - TBD -

Suspension Type - Front - Independent

Suspension Type - Rear - Multi-Link

Spring Capacity - Front (lbs) - - TBD -

Spring Capacity - Rear (lbs) - - TBD -

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - - TBD -

Axle Capacity - Rear (lbs) - - TBD -

Axle Ratio (:1) - Front - 3.23

Axle Ratio (:1) - Rear - 3.23

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - XCI

Rear Tire Order Code - XCI

Spare Tire Order Code - XCQ

Front Tire Size - 275/65R20SL

Rear Tire Size - 275/65R20SL

Spare Tire Size - P265/70R17

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - N/A

Front Wheel Size (in) - 22 X - TBD -

Rear Wheel Size (in) - 22 X - TBD -

Spare Wheel Size (in) - 17 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Pwr

Steering Ratio (:1), On Center - 16.6:1

Steering Ratio (:1), At Lock - 3.26

Turning Diameter - Curb to Curb (ft) - 39.5

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.5 x 1.2

Rear Brake Rotor Diam x Thickness (in) - 13.6 x 1.0

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 24

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 42.3

Front Leg Room (in) - 44.5

Front Shoulder Room (in) - 65.6

Front Hip Room (in) - 61.5

Second Head Room (in) - 38.9

Second Leg Room (in) - 42.0

Second Shoulder Room (in) - 64.6

Second Hip Room (in) - 61.3

Third Head Room (in) - 38.2

Third Leg Room (in) - 34.9

Third Shoulder Room (in) - 62.7

Third Hip Room (in) - 49.4

Wheelbase (in) - 120.9

Length, Overall (in) - 211.3

Width, Max w/o mirrors (in) - 81

Height, Overall (in) - 75.8

Overhang, Front (in) - - TBD -

Overhang, Rear w/bumper (in) - - TBD -

Ground to Top of Load Floor (in) - - TBD -

Ground Clearance, Front (in) - - TBD -

Ground Clearance, Rear (in) - - TBD -

Rear Door Type - Liftgate

Rear Door Opening Height (in) - - TBD -

Rear Door Opening Width (in) - - TBD -

Side Door Type -

Side Door Opening Height (in) -

Side Door Opening Width (in) -

Step Up Height - Front (in) - - TBD -

Step Up Height - Side (in) -

Cargo Area Length @ Floor to Console (in) - - TBD -

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - - TBD -

Cargo Area Length @ Floor to Seat 3 (in) - - TBD -

Cargo Area Length @ Floor to Seat 4 (in) -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - 49.5

Cargo Box (Area) Height (in) - - TBD -

Cargo Volume to Seat 1 (ft?) - 122.7

Cargo Volume to Seat 2 (ft?) - 72.5

Cargo Volume to Seat 3 (ft?) - 25.5

Cargo Volume to Seat 4 (ft?) -

Model Group - Tahoe

Vehicle Segment - Large Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 5.3

Engine Camshaft - OHV

Engine Block Type - aluminum

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States Chevrolet Active MPV
