MOSAIC BLACK METALLIC

JET BLACK/GRAY WITH BLUE ACCENTS, CLOTH SEAT TRIM

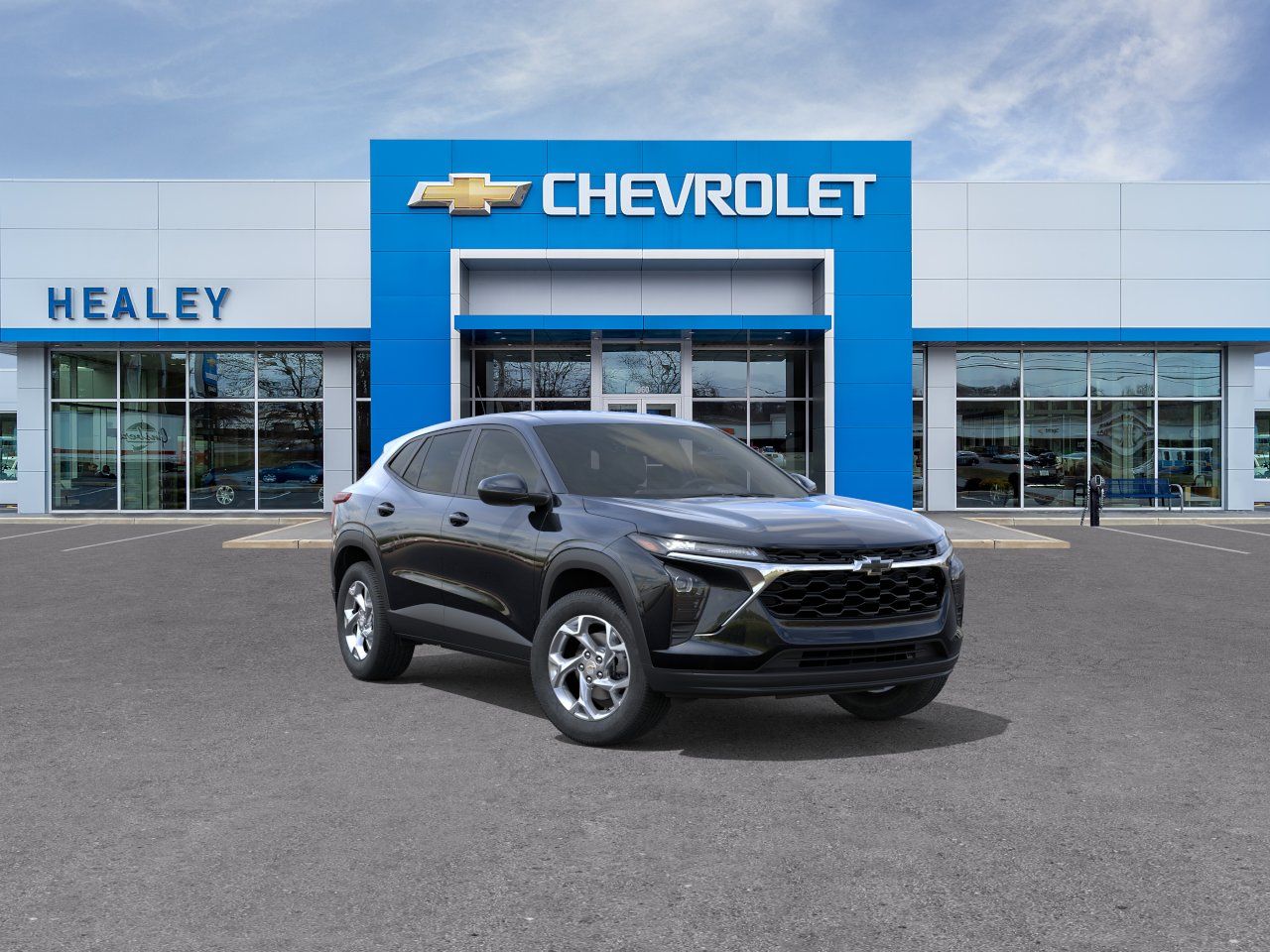

Vehicle Name - Chevrolet Trax

Body Style - Sport Utility Vehicle

Drivetrain - Front Wheel Drive

EPA Classification - Small Sport Utility Vehicle

Passenger Capacity - 5

Passenger Volume (ft?) - 99.8

Base Curb Weight (lbs) - 2983

EPA Greenhouse Gas Score - 6

Fuel Economy Est-Combined (MPG) - 30

EPA Fuel Economy Est - City (MPG) - 28

EPA Fuel Economy Est - Hwy (MPG) - 32

Tons/yr of CO2 Emissions @ 15K mi/year - 5.9

Dead Weight Hitch - Max Trailer Wt. (lbs) - - TBD -

Dead Weight Hitch - Max Tongue Wt. (lbs) - - TBD -

Wt Distributing Hitch - Max Trailer Wt. (lbs) - - TBD -

Wt Distributing Hitch - Max Tongue Wt. (lbs) - - TBD -

Engine Order Code - LBP

Engine Type - Turbocharged Gas 3-Cyl

Displacement - 1.2L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 137 @ 5000

SAE Net Torque @ RPM - 162 @ 2500

Trans Order Code - MNH

Trans Type - 6

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.58

Second Gear Ratio (:1) - 2.96

Third Gear Ratio (:1) - 1.91

Fourth Gear Ratio (:1) - 1.44

Fifth Gear Ratio (:1) - 1.00

Sixth Gear Ratio (:1) - 0.74

Reverse Ratio (:1) - 2.94

Clutch Size (in) -

Final Drive Axle Ratio (:1) - 3.53

Transfer Case Gear Ratio (:1), High -

Transfer Case Gear Ratio (:1), Low -

Cold Cranking Amps @ 0? F (Primary) - 760

Maximum Alternator Capacity (amps) - 130

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Compound Crank

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - QA3

Rear Tire Order Code - QA3

Spare Tire Order Code - ZDC

Front Tire Size - 225/60R17

Rear Tire Size - 225/60R17

Spare Tire Size - Compact

Front Wheel Size (in) - 17 x - TBD -

Rear Wheel Size (in) - 17 x - TBD -

Spare Wheel Size (in) - 16 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), Overall - - TBD -

Lock to Lock Turns (Steering) - - TBD -

Turning Diameter - Curb to Curb (ft) - - TBD -

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - - TBD -

Rear Brake Rotor Diam x Thickness (in) - - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 13.2

Front Head Room (in) - 39.6

Second Head Room (in) - 38.1

Front Leg Room (in) - 41.9

Second Leg Room (in) - 38.7

Front Shoulder Room (in) - 55.7

Second Shoulder Room (in) - 54.3

Front Hip Room (in) - 52.1

Second Hip Room (in) - 45.3

Wheelbase (in) - 106.3

Length, Overall (in) - 178.6

Width, Max w/o mirrors (in) - 71.7

Height, Overall (in) - 61.4

Track Width, Front (in) - 61.4

Track Width, Rear (in) - 62.3

Min Ground Clearance (in) - 7.3

Rear Door Opening Height (in) - - TBD -

Rear Door Opening Width (in) - - TBD -

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - - TBD -

Cargo Area Length @ Floor to Seat 3 (in) -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - - TBD -

Liftover Height (in) - - TBD -

Cargo Volume to Seat 1 (ft?) - 54.1

Cargo Volume to Seat 2 (ft?) - 25.6

Cargo Volume to Seat 3 (ft?) -

Model Group - Trax

Vehicle Segment - Subcompact Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 1.2

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 3

Engine Valve Count - 4

Country of Origin - South Korea To Be Determined Passenger Car, Mpv & Truck
