EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

AXLE, 3.17 FINAL DRIVE RATIO

RS PREFERRED EQUIPMENT GROUP

CACTI GREEN

MOSAIC BLACK METALLIC TWO-TONE ROOF

JET BLACK WITH RED ACCENTS, EVOTEX SEAT TRIM

CONVENIENCE PACKAGE

DRIVER CONFIDENCE PACKAGE

LPO, FRONT AND REAR SPLASH GUARDS, BLACK

LIFTGATE, POWER PROGRAMMABLE, HANDS FREE WITH LED LOGO PROJECTION

LICENSE PLATE BRACKET, FRONT

POWER OUTLET, 120-VOLT

USB CHARGING-ONLY PORTS

WIRELESS CHARGING

LPO, ALL-WEATHER FLOOR MATS

AIR CONDITIONING, SINGLE-ZONE AUTOMATIC CLIMATE CONTROL

SENSOR, CABIN HUMIDITY

MIRROR, INSIDE REARVIEW AUTO-DIMMING

VISORS, DRIVER AND FRONT PASSENGER ILLUMINATED VANITY MIRRORS, COVERED, SLIDING

REAR PARK ASSIST

REAR CROSS TRAFFIC ALERT

LANE CHANGE ALERT WITH SIDE BLIND ZONE ALERT

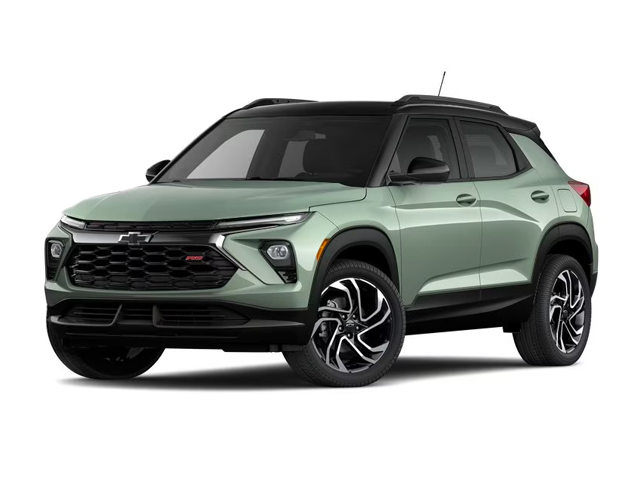

Vehicle Name - Chevrolet Trailblazer

Body Style - Sport Utility

Drivetrain - All Wheel Drive

EPA Classification - Sport Utility Vehicles

Passenger Capacity - 5

Passenger Volume (ft?) - 98.2

Base Curb Weight (lbs) - 3252

Fuel Economy Est-Combined (MPG) - 27

EPA Fuel Economy Est - City (MPG) - 26

EPA Fuel Economy Est - Hwy (MPG) - 29

Tons/yr of CO2 Emissions @ 15K mi/year - 6.5

Dead Weight Hitch - Max Trailer Wt. (lbs) - 1000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 100

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 1000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 100

Engine Order Code - L3T

Engine Type - Gas I3

Displacement - 1.3L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 155 @ 5600

SAE Net Torque @ RPM - 174 @ 1600

Trans Order Code - M3F

Trans Type - 9

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.69

Second Gear Ratio (:1) - 3.31

Third Gear Ratio (:1) - 3.01

Fourth Gear Ratio (:1) - 2.45

Fifth Gear Ratio (:1) - 1.92

Sixth Gear Ratio (:1) - 1.45

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.75

Ninth Gear Ratio (:1) - 0.62

Reverse Ratio (:1) - 2.96

Clutch Size (in) -

Final Drive Axle Ratio (:1) - 3.17

Transfer Case Gear Ratio (:1), High -

Transfer Case Gear Ratio (:1), Low -

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - - TBD -

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Watt's Linkage

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - RH3

Rear Tire Order Code - RH3

Spare Tire Order Code - ZDC

Front Tire Size - 245/45R19

Rear Tire Size - 245/45R19

Spare Tire Size - 16"

Front Wheel Size (in) - 19 x - TBD -

Rear Wheel Size (in) - 19 x - TBD -

Spare Wheel Size (in) - 16 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), Overall -

Lock to Lock Turns (Steering) -

Turning Diameter - Curb to Curb (ft) - 38.3

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - - TBD -

Rear Brake Rotor Diam x Thickness (in) - - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 13.2

Front Head Room (in) - 38.3

Front Leg Room (in) - 40.9

Front Shoulder Room (in) - 55.42

Front Hip Room (in) - 52.3

Second Head Room (in) - 36.8

Second Leg Room (in) - 39.0

Second Shoulder Room (in) - 53.79

Second Hip Room (in) - 50.39

Wheelbase (in) - 103.95

Length, Overall (in) - 174.07

Width, Max w/o mirrors (in) - 71.2

Height, Overall (in) - 65.68

Track Width, Front (in) - 60.88

Track Width, Rear (in) - 61.27

Min Ground Clearance (in) - 8

Rear Door Opening Height (in) - - TBD -

Rear Door Opening Width (in) - - TBD -

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - - TBD -

Cargo Area Length @ Floor to Seat 3 (in) -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - - TBD -

Liftover Height (in) - - TBD -

Cargo Volume to Seat 1 (ft?) - 54.4

Cargo Volume to Seat 2 (ft?) - 25.3

Cargo Volume to Seat 3 (ft?) -

Model Group - Trailblazer

Vehicle Segment - Subcompact Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 1.3

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 3

Engine Valve Count - 4

Country of Origin - South Korea To Be Determined Passenger Car, Mpv & Truck
