Black Clearcoat

Black, Leather Trimmed Bucket Seats

QUICK ORDER PACKAGE 27X RUBICON 392

TRAILER TOW PACKAGE

MOPAR ALL-WEATHER FLOOR MATS

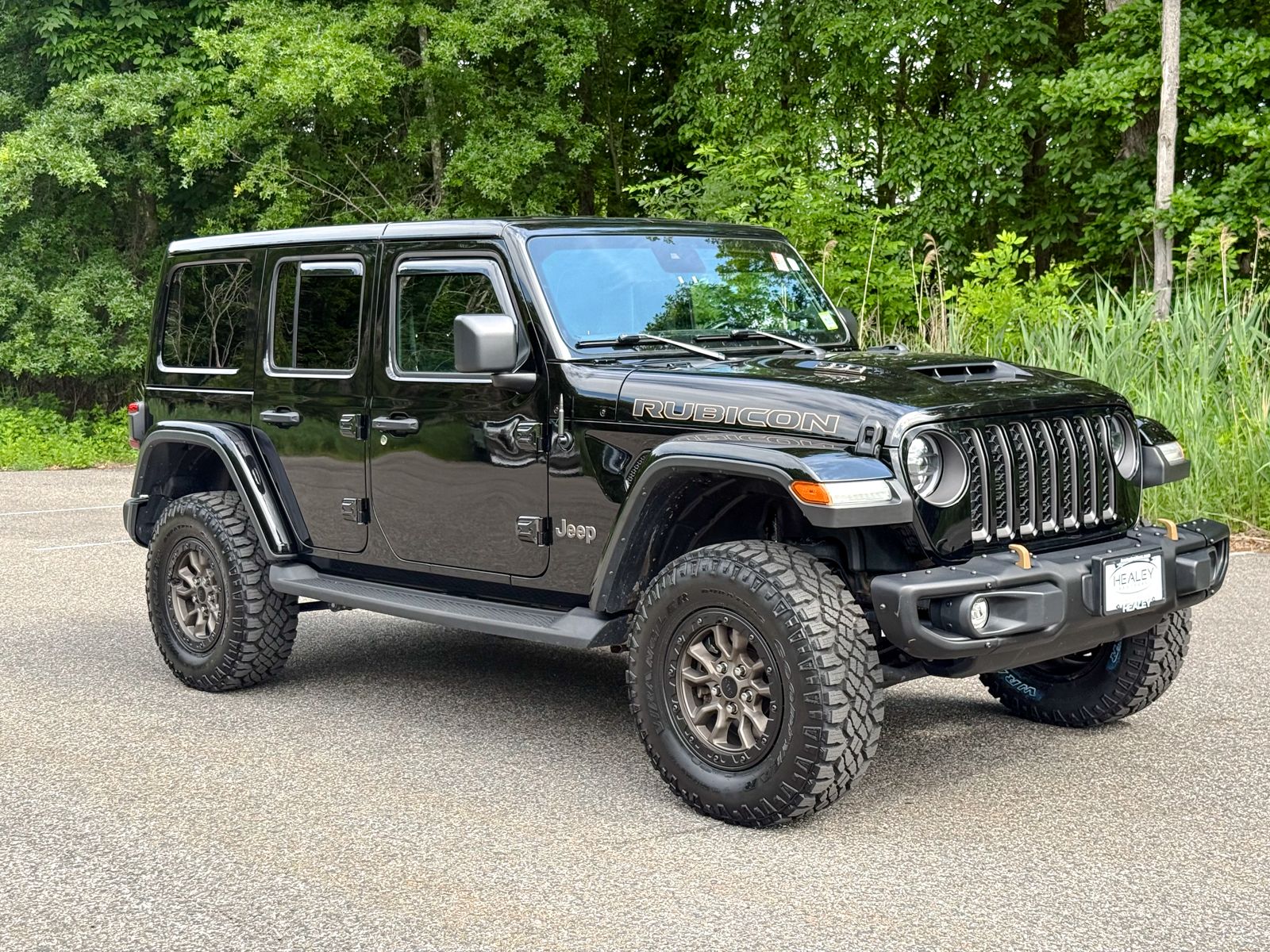

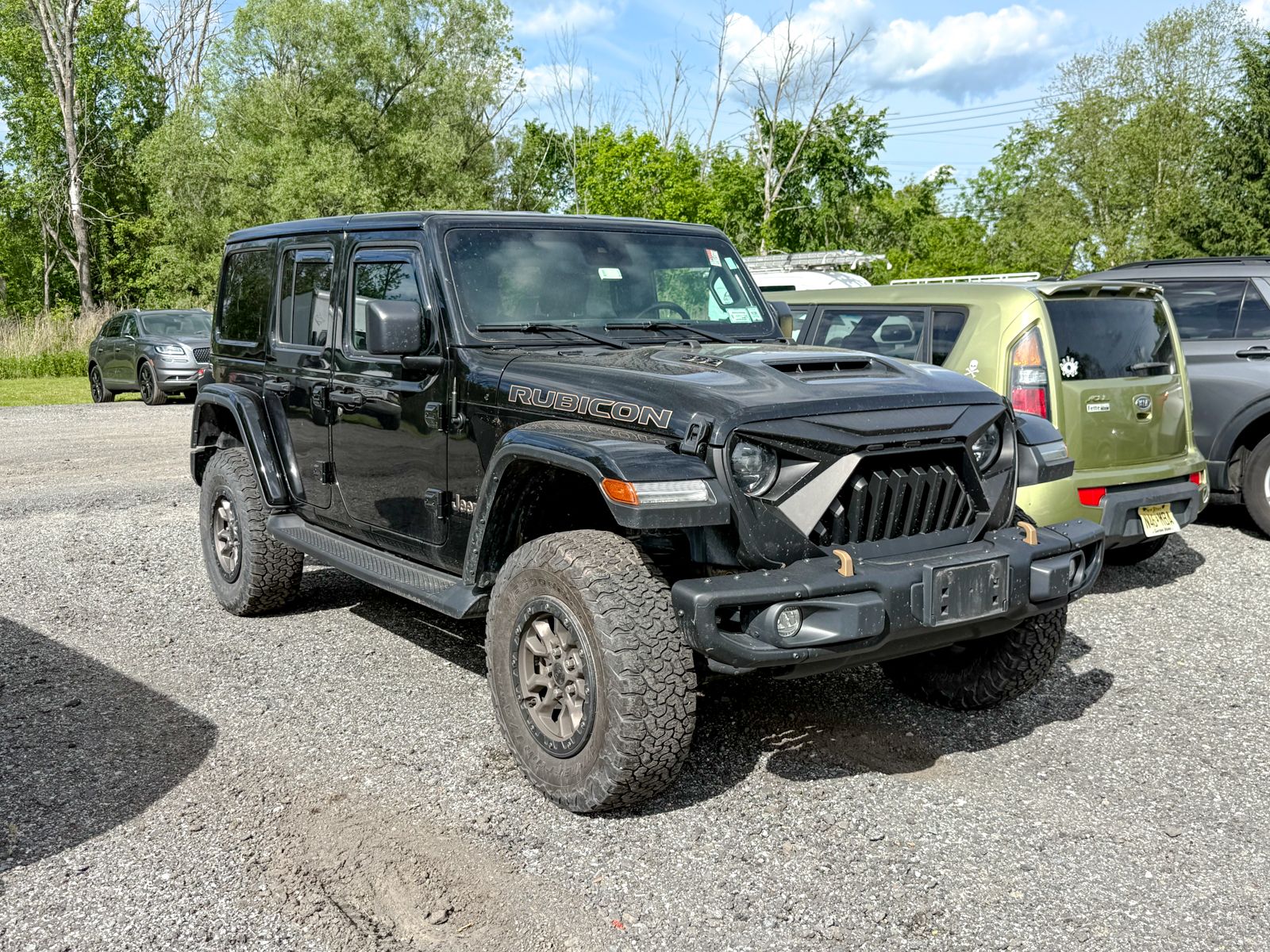

Vehicle Name - Jeep Wrangler

Body Style - Sport Utility

Body Code - S

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 5222

Gross Axle Wt Rating - Front (lbs) - 3450

Gross Axle Wt Rating - Rear (lbs) - 3550

Curb Weight - Front (lbs) - 2756

Curb Weight - Rear (lbs) - 2342

Gross Vehicle Weight Rating Cap (lbs) - 6100

Fuel Economy Est-Combined (MPG) - 14

EPA Fuel Economy Est - City (MPG) - 13

EPA Fuel Economy Est - Hwy (MPG) - 17

Gross Combined Wt Rating (lbs) - 6250

Dead Weight Hitch - Max Trailer Wt. (lbs) - 3500

Dead Weight Hitch - Max Tongue Wt. (lbs) - 350

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 3500

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 350

Maximum Trailering Capacity (lbs) - 3500

Engine Order Code - ESG

Engine Type - Premium Unleaded V-8

Displacement - 6.4 L/392

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 470 @ 6000

SAE Net Torque @ RPM - 470 @ 4300

Trans Order Code - DFV

Trans Type - 8

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.71

Second Gear Ratio (:1) - 3.14

Third Gear Ratio (:1) - 2.11

Fourth Gear Ratio (:1) - 1.67

Fifth Gear Ratio (:1) - 1.28

Sixth Gear Ratio (:1) - 1.00

Reverse Ratio (:1) - 3.29

Trans PTO Access - No

Transfer Case Model - Manual

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 700

Cold Cranking Amps @ 0? F (2nd) - 700

Tons/yr of CO2 Emissions @ 15K mi/year - 12.7

Maximum Alternator Capacity (amps) - 220

Engine Oil Cooler - Regular Duty

Suspension Type - Front - Leading Link

Suspension Type - Rear - Trailing Arm

Axle Type - Front - Non-Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 4.56

Axle Ratio (:1) - Rear - 4.56

Front Tire Order Code - TT4

Rear Tire Order Code - TT4

Spare Tire Order Code -

Front Tire Size - LT315/70SR17

Rear Tire Size - LT315/70SR17

Spare Tire Size - Full-Size

Front Wheel Size (in) - 17 X 8

Rear Wheel Size (in) - 17 X 8

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Aluminum

Steering Type - Re-Circulating Ball

Turning Diameter - Curb to Curb (ft) - 38.8

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.9

Rear Brake Rotor Diam x Thickness (in) - 14

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 21.5

Front Head Room (in) - 42.6

Front Leg Room (in) - 40.8

Front Shoulder Room (in) - 55.8

Front Hip Room (in) - 53.9

Second Head Room (in) - 41.7

Second Leg Room (in) - 38.2

Second Shoulder Room (in) - 55.8

Second Hip Room (in) - 55.9

Wheelbase (in) - 118.4

Length, Overall (in) - 188.4

Width, Max w/o mirrors (in) - 73.9

Height, Overall (in) - 74.5

Track Width, Front (in) - 64.4

Track Width, Rear (in) - 64.4

Min Ground Clearance (in) - 10.3

Cargo Area Width @ Beltline (in) - 47.9

Cargo Box Width @ Wheelhousings (in) - 41.5

Cargo Box (Area) Height (in) - 35.7

Liftover Height (in) - 30.8

Cargo Volume to Seat 1 (ft?) - 67.4

Cargo Volume to Seat 2 (ft?) - 27.7

Seventh Gear Ratio (:1) - 0.84

Eighth Gear Ratio (:1) - 0.67

Model Group - Wrangler

Vehicle Segment - Intermediate Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 6.4

Engine Camshaft - OHV

Engine Block Type - iron

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States MPV
