Black

Jet Black, Leather-Appointed Seat Trim

OFF-ROAD PACKAGE includes Z71 Suspension, (NZZ) Z71-specific skid plates, Z71-specific (RCV) 18" wheels, (RBX) 18" all-terrain tires, Z71-specific grille design, (T3U) fog lamps, (BVV) Black tubular assist steps, (UD5) Front and Rear Park Assist, (V76) Black recovery hooks, Z71-specific front sill plates, (GU6) rear axle, (NQH) transfer case, (B5N) Z71-specific rubber floor mats with logo, decal on cluster, badge on pillar and liftgate, (JHD) Hill Descent Control and (K47) high-capacity air cleaner

EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

REAR AXLE, 3.42 RATIO

LT PREFERRED EQUIPMENT GROUP Includes Standard Equipment

WHEELS, 18" (45.7 CM) BLACK PAINTED ALUMINUM

TIRES, 265/65R18SL MT 114S BLACKWALL Goodyear Wrangler DuraTrac. Aggressive tread may result in a higher level of noise while driving. Routine tire rotations are strongly recommended to minimize irregular tread wear, which could lead to vibration and increased road noise.

TIRE, SPARE P265/70R17 ALL-SEASON, BLACKWALL

PAINT SCHEME, SOLID APPLICATION

AUDIO SYSTEM, 8" DIAGONAL COLOR TOUCH-SCREEN NAVIGATION WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth streaming audio for music and select phones; voice-activated technology for radio and phone; and Shop with the ability to browse, select and install apps to your vehicle. You can customize your content with audio, weather and more; featuring Apple CarPlay and Android Auto capability for compatible phone; 5 USB ports and 1 auxiliary jack

LUXURY PACKAGE includes additional 9 months of SiriusXM Radio, (AS8) power fold third row 60/40 split bench seats, (ATH) Passive Entry System, (ATT) second row power release 60/40 split folding bench seat, (BTM) Keyless Start, (DL3) outside heated power-adjustable, power-folding mirrors, (KA6) heated second row seats, (N38) memory power tilt and telescopic steering column, (TC2) hands free liftgate, (T3U) fog lamps, (UD5) Front and Rear Park Assist, (UFG) Rear Cross Traffic Alert, (UKC) Lane Change Alert with Side Blind Zone Alert and (UVD) heated steering wheel and color key rear fascia trailer hitch closeout

SUN, ENTERTAINMENT AND DESTINATIONS PACKAGE includes additional 9 months of SiriusXM Radio and NavTraffic service, (CF5) power sunroof, (U42) rear seat DVD entertainment system and (IO6) 8" diagonal color touch-screen Navigation with Chevrolet Infotainment

Z71 MIDNIGHT EDITION includes (Z71) Off-Road Package, (NZZ) Skid Plate Package, (REG) 18" Black painted aluminum wheels, (RI8) P265/65R18SL MT 114S blackwall Duratrac tires, (BVV) Black tubular assist steps, (T3U) front fog lamps, (UD5) Front and Rear Park Assist, (V76) recovery hooks, (GU6) 3.42 rear axle ratio, (NQH) Autotrac active 2-speed transfer case, (B5N) Z71-specific rubber floor mats with logo, (JHD) Hill Descent Control, (K47) high-capacity air cleaner, (P3H) front and rear Black bowties, unique Z71 Midnight grille, Z71 front lower Black fascia, Z71-specific front sill plates, Z71 Decal on cluster, Z71 pillar and liftgate badge and (VQQ) Black roof rack cross rails, LPO.

KEYLESS START, PUSH BUTTON

TRANSFER CASE, ACTIVE, 2-SPEED ELECTRONIC AUTOTRAC with rotary controls, includes neutral position for dinghy towing

AIR CLEANER, HIGH-CAPACITY

HILL DECENT CONTROL

SUNROOF, POWER, TILT-SLIDING with express-open and close and wind deflector

LPO, BLACK ROOF RACK CROSS RAILS (dealer-installed)

ASSIST STEPS, TUBULAR, BLACK

BLACK BOWTIES, FRONT AND REAR

FOG LAMPS

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE, POWER-FOLDING AND DRIVER-SIDE AUTO-DIMMING with integrated turn signal indicators and ground illumination

LICENSE PLATE FRONT MOUNTING PACKAGE

LIFTGATE, POWER, HANDS FREE

ENTERTAINMENT SYSTEM, REAR SEAT, BLU-RAY/DVD with remote control, overhead display, Wi-Fi wireless projection capability, two 2-channel wireless digital headphones, auxiliary HDMI/MHL audio/video input and 2 USB ports

SEATS, SECOND ROW BUCKET, POWER RELEASE

SEATS, HEATED SECOND ROW OUTBOARD SEATS

SEATS, THIRD ROW 60/40 SPLIT-BENCH, POWER FOLD

FLOOR MATS, RUBBER, Z71-SPECIFIC WITH LOGO

LPO, ALL-WEATHER FLOOR LINER PACKAGE includes 1st, 2nd and 3rd row coverage. (dealer-installed)

STEERING COLUMN, POWER TILT AND TELESCOPIC

STEERING WHEEL, HEATED, LEATHER-WRAPPED AND COLOR-KEYED with theft-deterrent locking feature

PASSIVE ENTRY SYSTEM includes (AQQ) Remote Keyless Entry

FRONT AND REAR PARK ASSIST

REAR CROSS TRAFFIC ALERT

LANE CHANGE ALERT WITH SIDE BLIND ZONE ALERT

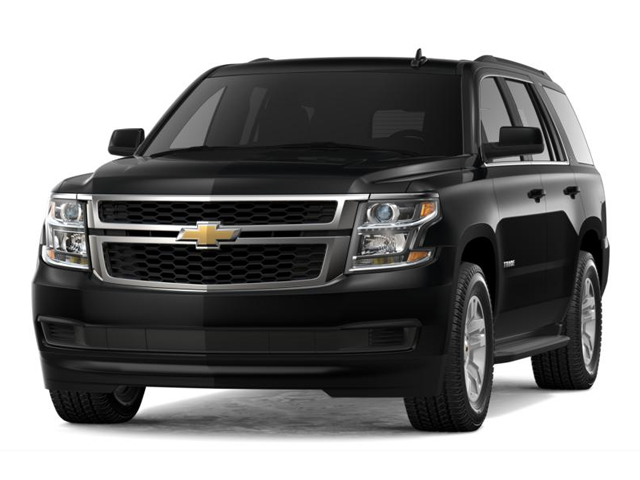

Vehicle Name - Chevrolet Tahoe

Body Style - Sport Utility Vehicle

Body Code - E52

Drivetrain - Four Wheel Drive

Passenger Capacity - 7

Gross Axle Wt Rating - Front (lbs) - 3600

Gross Axle Wt Rating - Rear (lbs) - 4100

Curb Weight - Front (lbs) - 2848

Curb Weight - Rear (lbs) - 2608

Gross Vehicle Weight Rating Cap (lbs) - 7300

Fuel Economy Est-Combined (MPG) - 17

EPA Fuel Economy Est - City (MPG) - 15

EPA Fuel Economy Est - Hwy (MPG) - 21

Tons/yr of CO2 Emissions @ 15K mi/year - 10.4

Gross Combined Wt Rating (lbs) - 14000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 8400

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 840

Fifth Wheel Hitch - Max Trailer Wt. (lbs) -

Fifth Wheel Hitch - Max Tongue Wt. (lbs) -

Engine Order Code - L83

Engine Type - Gas/Ethanol V8

Displacement - 5.3L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 355 @ 5600

SAE Net Torque @ RPM - 383 @ 4100

Trans Order Code - MYC

Trans Type - 6

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.03

Second Gear Ratio (:1) - 2.36

Third Gear Ratio (:1) - 1.53

Fourth Gear Ratio (:1) - 1.15

Fifth Gear Ratio (:1) - 0.85

Sixth Gear Ratio (:1) - 0.67

Reverse Ratio (:1) - 3.06

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - N/A

Transfer Case Gear Ratio (:1), High - - TBD -

Transfer Case Gear Ratio (:1), Low - - TBD -

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 720

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - 150

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler -

Frame Type - - TBD -

Suspension Type - Front - Independent

Suspension Type - Rear - Multi-Link

Spring Capacity - Front (lbs) - - TBD -

Spring Capacity - Rear (lbs) - - TBD -

Axle Type - Front - Independent

Axle Type - Rear - Semi-Floating

Axle Capacity - Front (lbs) - 3600

Axle Capacity - Rear (lbs) - - TBD -

Axle Ratio (:1) - Front - 3.42

Axle Ratio (:1) - Rear - 3.42

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - RI8

Rear Tire Order Code - RI8

Spare Tire Order Code - RC4

Front Tire Size - P265/65R18

Rear Tire Size - P265/65R18

Spare Tire Size - P265/70R17

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - N/A

Front Wheel Size (in) - 18 x - TBD -

Rear Wheel Size (in) - 18 x - TBD -

Spare Wheel Size (in) - 17 x 7.5

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Pwr Rack & Pinion

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 39.0

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13 x - TBD -

Rear Brake Rotor Diam x Thickness (in) - 13.6 x - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 26

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 42.8

Front Leg Room (in) - 45.3

Front Shoulder Room (in) - 64.8

Front Hip Room (in) - 60.8

Second Head Room (in) - 38.7

Second Leg Room (in) - 39

Second Shoulder Room (in) - 65.1

Second Hip Room (in) - 60.3

Third Head Room (in) - 38.1

Third Leg Room (in) - 24.8

Third Shoulder Room (in) - 62.6

Third Hip Room (in) - 49.3

Wheelbase (in) - 116

Length, Overall (in) - 204

Width, Max w/o mirrors (in) - 80.5

Height, Overall (in) - 74.4

Overhang, Front (in) - - TBD -

Overhang, Rear w/bumper (in) - - TBD -

Ground to Top of Load Floor (in) - 35.91

Ground Clearance, Front (in) - 7.87

Ground Clearance, Rear (in) - 7.87

Rear Door Type - Liftgate

Rear Door Opening Height (in) - - TBD -

Rear Door Opening Width (in) - - TBD -

Side Door Type -

Side Door Opening Height (in) -

Side Door Opening Width (in) -

Step Up Height - Front (in) - - TBD -

Step Up Height - Side (in) -

Cargo Area Length @ Floor to Console (in) - - TBD -

Cargo Area Length @ Floor to Seat 1 (in) - 79.9

Cargo Area Length @ Floor to Seat 2 (in) - 43.2

Cargo Area Length @ Floor to Seat 3 (in) - 11.1

Cargo Area Length @ Floor to Seat 4 (in) -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - 49.3

Cargo Box (Area) Height (in) - 33.94

Cargo Volume to Seat 1 (ft?) - 94.7

Cargo Volume to Seat 2 (ft?) - 51.7

Cargo Volume to Seat 3 (ft?) - 15.3

Cargo Volume to Seat 4 (ft?) -

Model Group - Tahoe

Vehicle Segment - Large Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 5.3

Engine Camshaft - OHV

Engine Block Type - aluminum

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States Chevrolet Active MPV
