Radiant Red Tintcoat

Lt Jet Black, Evotex Seat Trim

EMISSIONS, COLORADO, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, MINNESOTA, NEVADA, NEW JERSEY, NEW MEXICO, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

LT PREFERRED EQUIPMENT GROUP includes standard equipment

WHEELS, 20" (50.8 CM) CARBON FLASH METALLIC MACHINED-FACE ALUMINUM

TIRES, 255/55R20 ALL-SEASON BLACKWALL

SUN AND WHEEL PACKAGE includes (CAJ) Power Sunroof, dual glass, panoramic, sliding with power sunshade and (Q9P) 20" Carbon Flash Metallic machined-face aluminum wheel

SUNROOF, POWER, DUAL GLASS, PANORAMIC, SLIDING, WITH POWER SUNSHADE

LICENSE PLATE FRONT MOUNTING PACKAGE (will be forced on orders with ship-to states that require a front license plate)

3 YEARS SIRIUSXM

MOBILE SERVICE PLUS. MobileService+ is a suite of service conveniences for 3 years - Mobile Service, Pick-up & Delivery, and Loaner with Drop off. MobileService+ van will come to your home to perform select services or pick up your vehicle and return it once the service is completed at the dealership. Cost of part and labor are not included

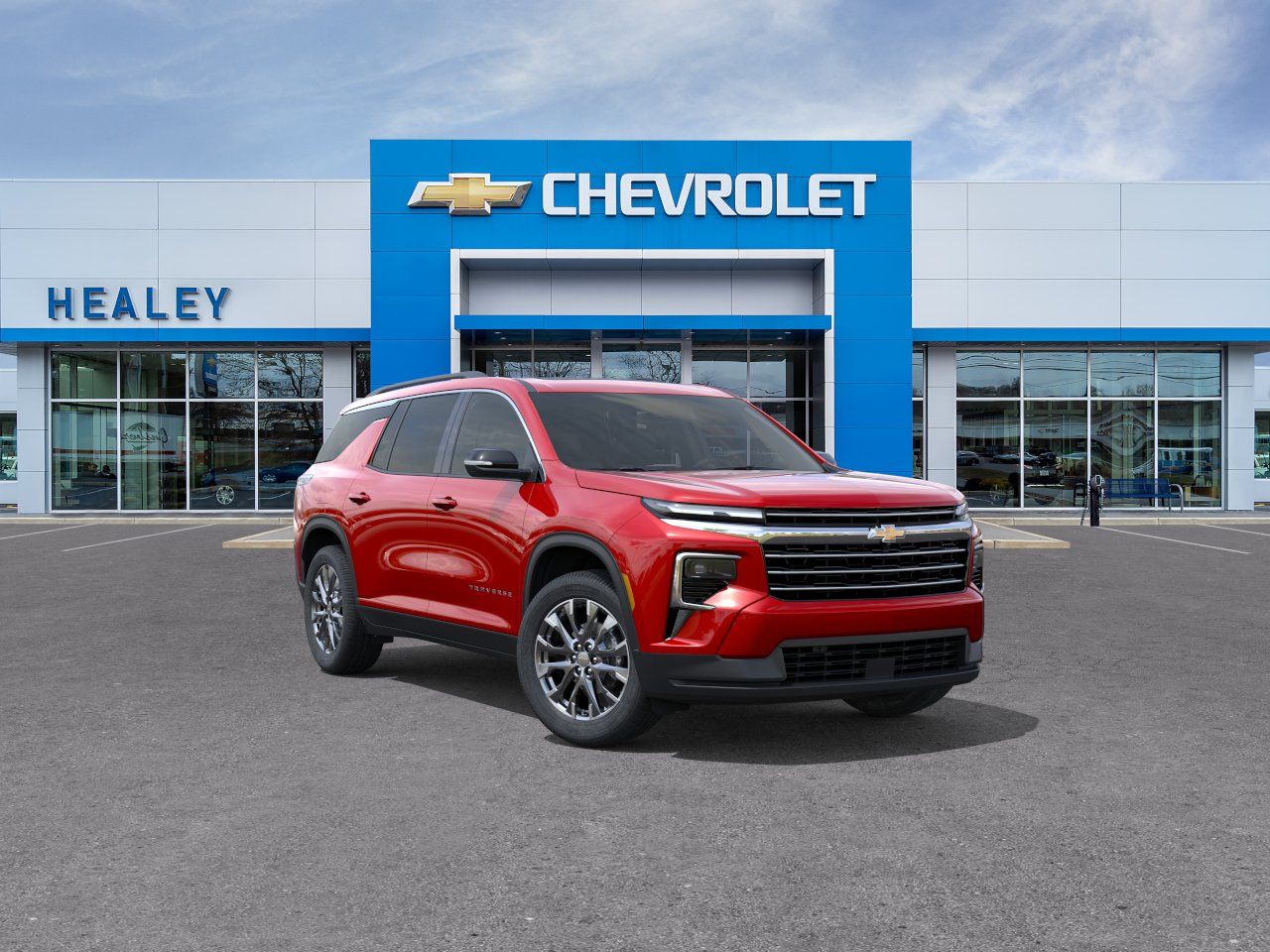

Vehicle Name - Chevrolet Traverse

Body Style - Sport Utility Vehicle

Drivetrain - All Wheel Drive

EPA Classification - Standard Sport Utility Vehicle 4WD

Passenger Capacity - 7

Passenger Volume (ft?) - - TBD -

Base Curb Weight (lbs) - 4793

Fuel Economy Est-Combined (MPG) - 21

EPA Fuel Economy Est - City (MPG) - 20

EPA Fuel Economy Est - Hwy (MPG) - 24

Tons/yr of CO2 Emissions @ 15K mi/year - 8.4

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 5000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 500

Engine Order Code - LK0

Engine Type - Gas I4

Displacement - 2.5L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 328 @ 5500

SAE Net Torque @ RPM - 326 @ 3500

Trans Order Code - MF8

Trans Type - 8

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - - TBD -

Second Gear Ratio (:1) - - TBD -

Third Gear Ratio (:1) - - TBD -

Fourth Gear Ratio (:1) - - TBD -

Fifth Gear Ratio (:1) - - TBD -

Sixth Gear Ratio (:1) - - TBD -

Seventh Gear Ratio (:1) - - TBD -

Eighth Gear Ratio (:1) - - TBD -

Reverse Ratio (:1) - - TBD -

Clutch Size (in) -

Final Drive Axle Ratio (:1) - 3.49

Transfer Case Gear Ratio (:1), High -

Transfer Case Gear Ratio (:1), Low -

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - 220

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - 5-Link Independent

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - Q3N

Rear Tire Order Code - Q3N

Spare Tire Order Code - ZCD

Front Tire Size - 255/55R20

Rear Tire Size - 255/55R20

Spare Tire Size - T135/70R18

Front Wheel Size (in) - 22 x - TBD -

Rear Wheel Size (in) - 22 x - TBD -

Spare Wheel Size (in) - 18 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Variable Rack & Pinion

Steering Ratio (:1), Overall - - TBD -

Lock to Lock Turns (Steering) - - TBD -

Turning Diameter - Curb to Curb (ft) - - TBD -

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.6 x 1.2

Rear Brake Rotor Diam x Thickness (in) - 12.4 x 0.9

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 21.7

Front Head Room (in) - 40.67

Front Leg Room (in) - 44.29

Front Shoulder Room (in) - 62.28

Front Hip Room (in) - 58.7

Second Head Room (in) - 38.19

Second Leg Room (in) - 41.46

Second Shoulder Room (in) - 62.17

Second Hip Room (in) - 58.58

Third Head Room (in) - 38.54

Third Leg Room (in) - 32.13

Third Shoulder Room (in) - 57.72

Third Hip Room (in) - 48.62

Wheelbase (in) - 121

Length, Overall (in) - 204.49

Width, Max w/o mirrors (in) - 79.57

Height, Overall (in) - 69.57

Track Width, Front (in) - 67.28

Track Width, Rear (in) - 67.05

Min Ground Clearance (in) - 6.77

Rear Door Opening Height (in) - 32.4

Rear Door Opening Width (in) - 49.1

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - 55.47

Cargo Area Length @ Floor to Seat 3 (in) - - TBD -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - - TBD -

Liftover Height (in) - 30.71

Cargo Volume to Seat 1 (ft?) - 97.6

Cargo Volume to Seat 2 (ft?) - 56.6

Cargo Volume to Seat 3 (ft?) - 22.9

Model Group - Traverse

Vehicle Segment - Intermediate Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 2.5

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - United States Chevrolet Active MPV
