AGATE BLACK METALLIC

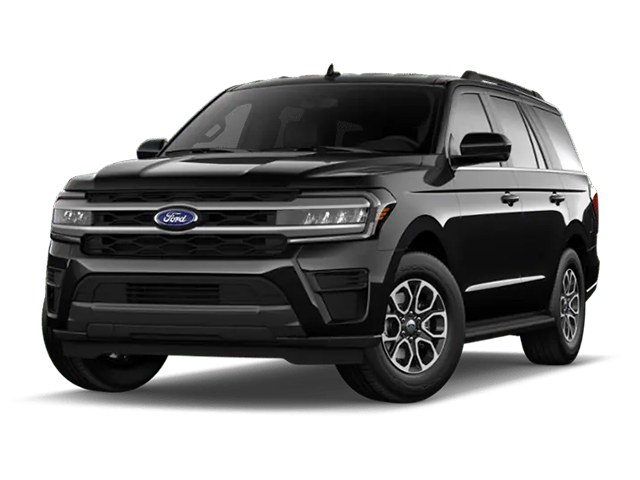

Vehicle Name - Ford Expedition

Body Style - Sport Utility

Body Code - S

Drivetrain - Four Wheel Drive

Passenger Capacity - 7

Base Curb Weight (lbs) - 5623

Gross Axle Wt Rating - Front (lbs) - 3450

Gross Axle Wt Rating - Rear (lbs) - 4380

Curb Weight - Front (lbs) - 2913

Curb Weight - Rear (lbs) - 2779

Gross Vehicle Weight Rating Cap (lbs) - 7450

Fuel Economy Est-Combined (MPG) - 18

EPA Fuel Economy Est - City (MPG) - 16

EPA Fuel Economy Est - Hwy (MPG) - 22

Gross Combined Wt Rating (lbs) - 12300

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 6000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 600

Maximum Trailering Capacity (lbs) - 6000

Engine Order Code - 998

Engine Type - Twin Turbo Regular Unleaded V-6

Displacement - 3.5 L/213

Fuel System - Port/Direct Injection

SAE Net Horsepower @ RPM - 380 @ 5000

SAE Net Torque @ RPM - 470 @ 2250

Trans Order Code - 44U

Trans Type - 10

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.70

Second Gear Ratio (:1) - 2.98

Third Gear Ratio (:1) - 2.15

Fourth Gear Ratio (:1) - 1.77

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.27

Reverse Ratio (:1) - 4.87

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 675

Cold Cranking Amps @ 0? F (2nd) - 675

Tons/yr of CO2 Emissions @ 15K mi/year - 8.0

Maximum Alternator Capacity (amps) - 150

Engine Oil Cooler - None

Suspension Type - Front - Double Wishbone

Suspension Type - Rear - Multi-Link

Axle Type - Front - Independent

Axle Type - Rear - Independent

Axle Ratio (:1) - Front - 3.73

Axle Ratio (:1) - Rear - 3.73

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - P275/55HR20

Rear Tire Size - P275/55HR20

Spare Tire Size - Full-Size

Front Wheel Size (in) - 20 X 8.5

Rear Wheel Size (in) - 20 X 8.5

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 41

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13

Rear Brake Rotor Diam x Thickness (in) - 13.5

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 23.3

Front Head Room (in) - 42

Front Leg Room (in) - 43.9

Front Shoulder Room (in) - 64.9

Front Hip Room (in) - 62.2

Second Head Room (in) - 40

Second Leg Room (in) - 41.5

Second Shoulder Room (in) - 64.8

Second Hip Room (in) - 62.6

Third Head Room (in) - 37.3

Third Leg Room (in) - 36.1

Third Shoulder Room (in) - 64.2

Third Hip Room (in) - 51.4

Wheelbase (in) - 122.5

Length, Overall (in) - 210

Width, Max w/o mirrors (in) - 79.9

Height, Overall (in) - 76.4

Track Width, Front (in) - 67.6

Track Width, Rear (in) - 67.2

Min Ground Clearance (in) - 9.8

Liftover Height (in) - 35.3

Cargo Volume to Seat 1 (ft?) - 104.6

Cargo Volume to Seat 2 (ft?) - 63.6

Cargo Volume to Seat 3 (ft?) - 20.9

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Model Group - Expedition

Vehicle Segment - Large Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 3.5

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States MPV
