EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

LT PREFERRED EQUIPMENT GROUP

WHEELS, 18" (45.7 CM) PAINTED ALLOY

TIRES, P235/50R18 ALL-SEASON, BLACKWALL

SILVER ICE METALLIC

SEATS, FRONT BUCKET

JET BLACK, PREMIUM CLOTH/LEATHERETTE SEAT TRIM

LICENSE PLATE BRACKET, FRONT

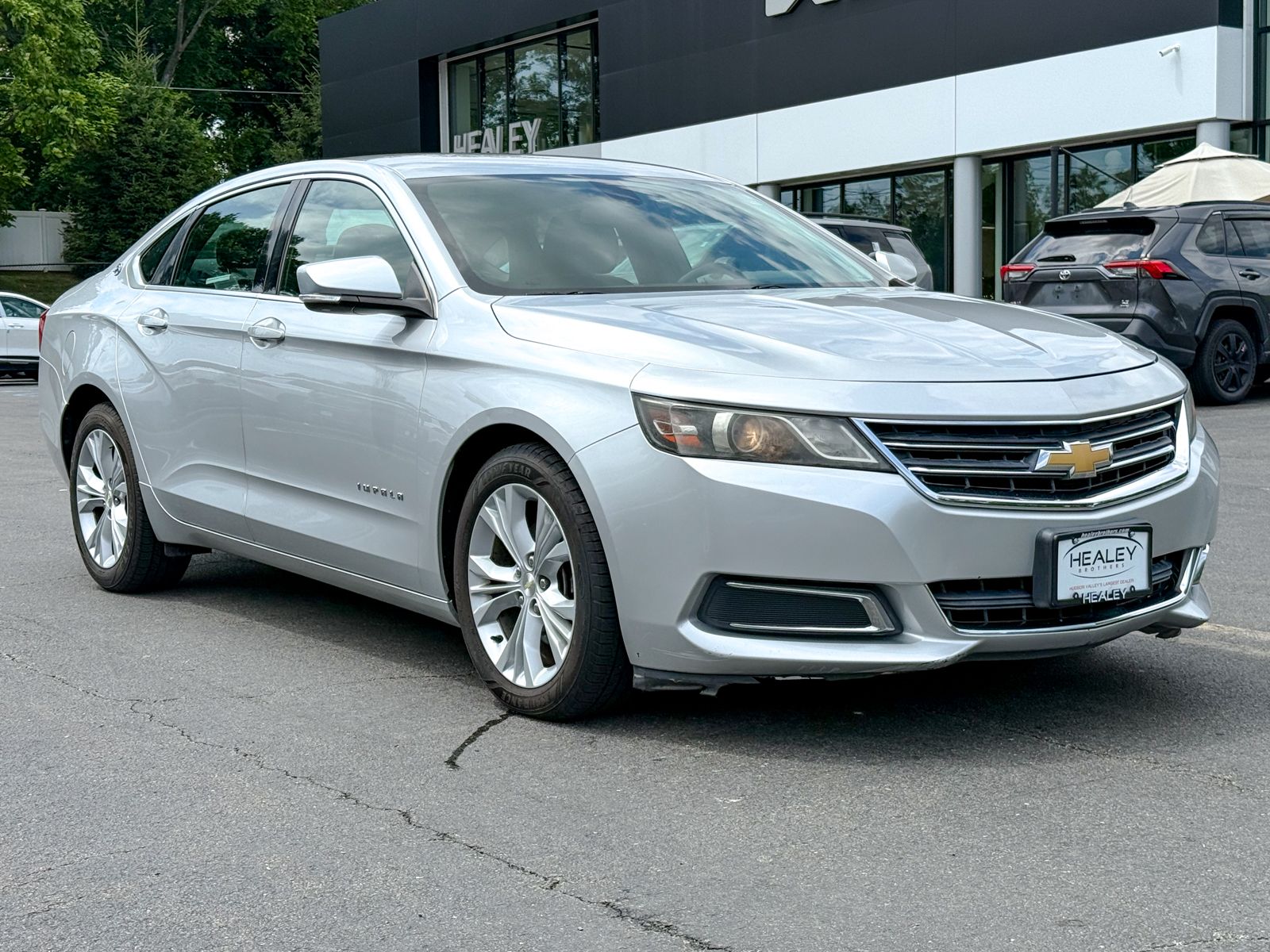

Vehicle Name - Chevrolet Impala

Body Style - Sedan

Drivetrain - Front Wheel Drive

EPA Classification - Large Cars

Passenger Capacity - 5

Passenger Volume (ft?) - 105

Base Curb Weight (lbs) - 3785

EPA Greenhouse Gas Score - 5

Fuel Economy Est-Combined (MPG) - 22

EPA Fuel Economy Est - City (MPG) - 19

EPA Fuel Economy Est - Hwy (MPG) - 29

Tons/yr of CO2 Emissions @ 15K mi/year - 8.2

Dead Weight Hitch - Max Trailer Wt. (lbs) - 1000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 100

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 1000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 150

Engine Order Code - LFX

Engine Type - Gas/Ethanol V6

Displacement - 3.6L/217

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 305 @ 6800

SAE Net Torque @ RPM - 264 @ 5200

Trans Order Code - M7W

Trans Type - 6

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.48

Second Gear Ratio (:1) - 2.87

Third Gear Ratio (:1) - 1.84

Fourth Gear Ratio (:1) - 1.41

Fifth Gear Ratio (:1) - 1.00

Sixth Gear Ratio (:1) - 0.74

Reverse Ratio (:1) - 2.88

Clutch Size (in) -

Final Drive Axle Ratio (:1) - 2.77

Cold Cranking Amps @ 0? F (Primary) - 512

Maximum Alternator Capacity (amps) - - TBD -

Total Cooling System Capacity (qts) - 9.9

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Multi-Link

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - N/A

Shock Absorber Diameter - Rear (mm) - N/A

Stabilizer Bar Diameter - Front (in) - 1.1

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - QGK

Rear Tire Order Code - QGK

Spare Tire Order Code - QCL

Front Tire Size - P235/50R18

Rear Tire Size - P235/50R18

Spare Tire Size - T125/70R17

Front Wheel Size (in) - 18 x - TBD -

Rear Wheel Size (in) - 18 x - TBD -

Spare Wheel Size (in) - 17 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), Overall - 15.2

Lock to Lock Turns (Steering) - 2.73

Turning Diameter - Curb to Curb (ft) - 38.8

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.6 x 1.2

Rear Brake Rotor Diam x Thickness (in) - 12.4 x 0.9

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 18.5

Front Head Room (in) - 39.90

Front Leg Room (in) - 45.80

Front Shoulder Room (in) - 57.90

Front Hip Room (in) - 54.90

Second Head Room (in) - 37.40

Second Leg Room (in) - 39.80

Second Shoulder Room (in) - 56.90

Second Hip Room (in) - 54.10

Wheelbase (in) - 111.70

Length, Overall (in) - 201.30

Width, Max w/o mirrors (in) - 73.00

Height, Overall (in) - 58.90

Track Width, Front (in) - 62.20

Track Width, Rear (in) - 62.00

Min Ground Clearance (in) - - TBD -

Liftover Height (in) - - TBD -

Trunk Volume (ft?) - 18.8

Model Group - Impala

Vehicle Segment - Intermediate

Vehicle Type - Sedan

Engine Displacement Units - 3.6

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - Canada Chevrolet Passenger Car
