ENGINE: 2.7L ECOBOOST V6

TRANSMISSION: 10-SPEED AUTOMATIC

EQUIPMENT GROUP 332A MID PACKAGE

OXFORD WHITE

BLACK ONYX, LEATHER-TRIMMED/VINYL BUCKET SEATS

BODY COLOR-PAINTED HARD TOP

FRONT LICENSE PLATE BRACKET

DOOR STORAGE BAGS

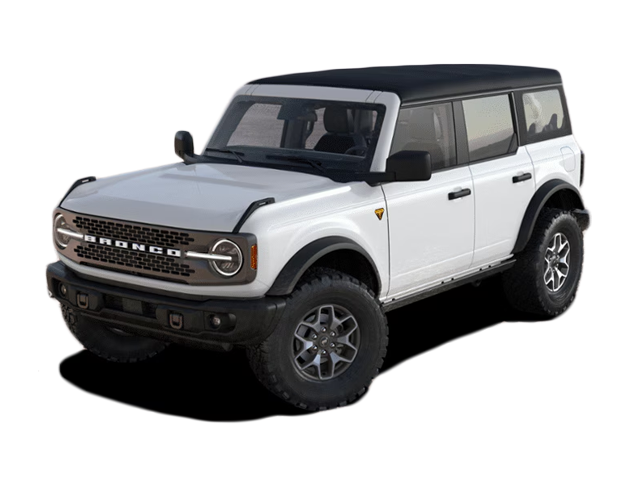

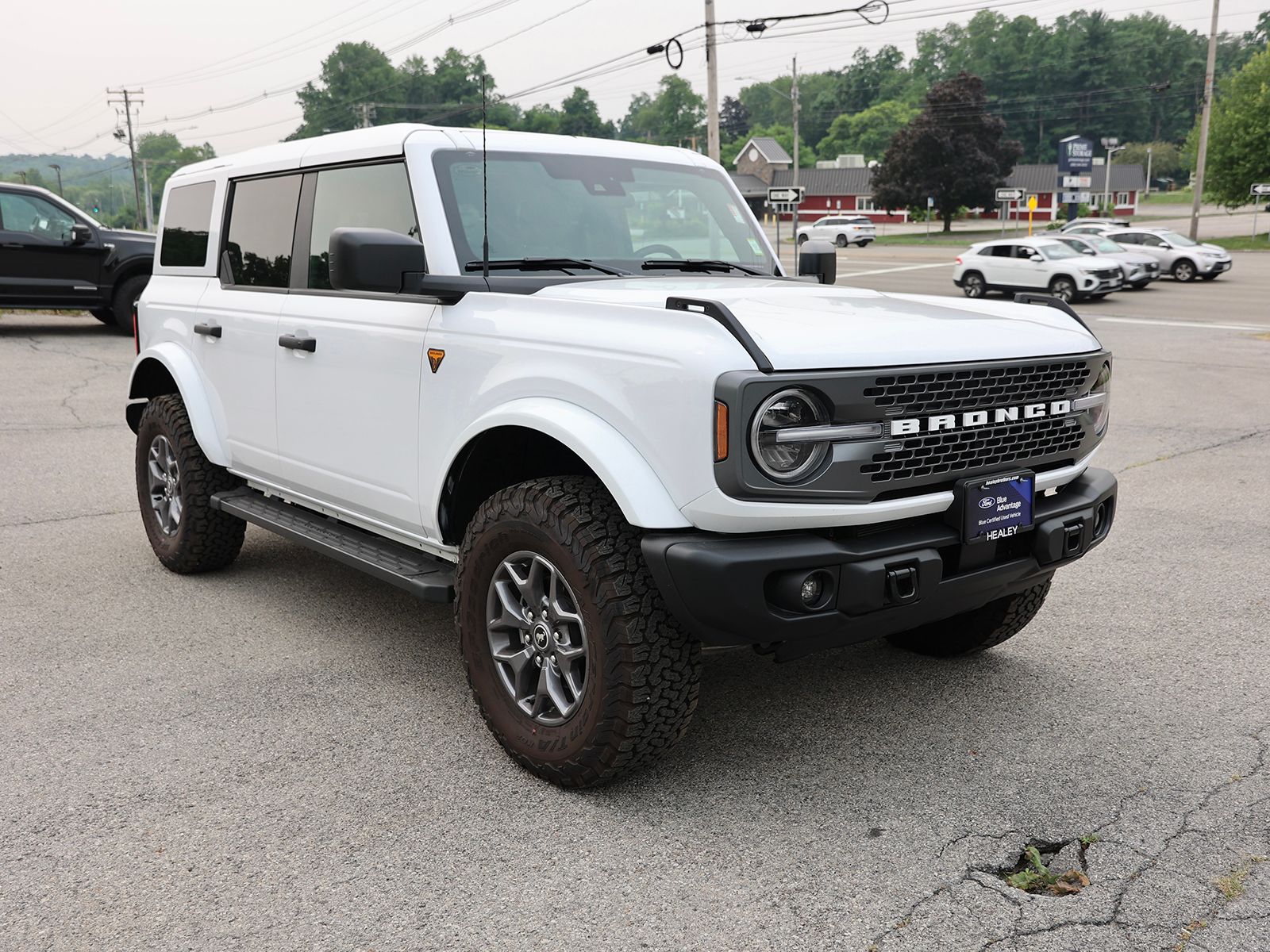

Vehicle Name - Ford Bronco

Body Style - Sport Utility

Body Code - S

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 5117

Gross Axle Wt Rating - Front (lbs) - 3270

Gross Axle Wt Rating - Rear (lbs) - 3070

Curb Weight - Front (lbs) - 2763

Curb Weight - Rear (lbs) - 2182

EPA Greenhouse Gas Score - 4.0

Gross Vehicle Weight Rating Cap (lbs) - 6180

Fuel Economy Est-Combined (MPG) - 18

EPA Fuel Economy Est - City (MPG) - 17

EPA Fuel Economy Est - Hwy (MPG) - 19

Gross Combined Wt Rating (lbs) - 8840

Dead Weight Hitch - Max Trailer Wt. (lbs) - 3260

Dead Weight Hitch - Max Tongue Wt. (lbs) - 326

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 3260

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 326

Maximum Trailering Capacity (lbs) - 3260

Engine Order Code - 99P

Engine Type - Twin Turbo Regular Unleaded V-6

Displacement - 2.7 L/164

Fuel System - Port/Direct Injection

SAE Net Horsepower @ RPM - 315 @ 5500

SAE Net Torque @ RPM - 410 @ 3250

Trans Order Code - 44T

Trans Type - 10

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.71

Second Gear Ratio (:1) - 3.00

Third Gear Ratio (:1) - 2.15

Fourth Gear Ratio (:1) - 1.77

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.27

Reverse Ratio (:1) - 4.88

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 800

Cold Cranking Amps @ 0? F (2nd) - 800

Tons/yr of CO2 Emissions @ 15K mi/year - 8.4

Maximum Alternator Capacity (amps) - 250

Engine Oil Cooler - None

Suspension Type - Front - Short And Long Arm

Suspension Type - Rear - Multi-Link

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 4.46

Axle Ratio (:1) - Rear - 4.46

Front Tire Order Code - TFR

Rear Tire Order Code - TFR

Spare Tire Order Code -

Front Tire Size - LT315/70R17

Rear Tire Size - LT315/70R17

Spare Tire Size - Full-Size

Front Wheel Size (in) - 17 X 8.5

Rear Wheel Size (in) - 17 X 8.5

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Aluminum

Steering Type - Rack-Pinion

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.2

Rear Brake Rotor Diam x Thickness (in) - 12.1

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 20.8

Front Head Room (in) - 43.3

Front Leg Room (in) - 43.1

Front Shoulder Room (in) - 57.1

Front Hip Room (in) - 55.9

Second Head Room (in) - 41.1

Second Leg Room (in) - 36.3

Second Shoulder Room (in) - 56.5

Second Hip Room (in) - 54.8

Wheelbase (in) - 116.1

Length, Overall (in) - 189.4

Width, Max w/o mirrors (in) - 75.9

Height, Overall (in) - 73.9

Track Width, Front (in) - 65

Track Width, Rear (in) - 65

Min Ground Clearance (in) - 11.5

Cargo Volume to Seat 1 (ft?) - 83

Cargo Volume to Seat 2 (ft?) - 38.3

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Model Group - Bronco

Vehicle Segment - Intermediate Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 2.3

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - United States MPV
