Sterling Gray Metallic

Jet Black/Gray With Red Accents, Cloth Seat Trim

EMISSIONS, COLORADO, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, MINNESOTA, NEVADA, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT, VIRGINIA AND WASHINGTON STATE REQUIREMENTS

AXLE, 3.50 FINAL DRIVE RATIO

1RS PREFERRED EQUIPMENT GROUP Includes Standard Equipment

LICENSE PLATE FRONT MOUNTING PACKAGE

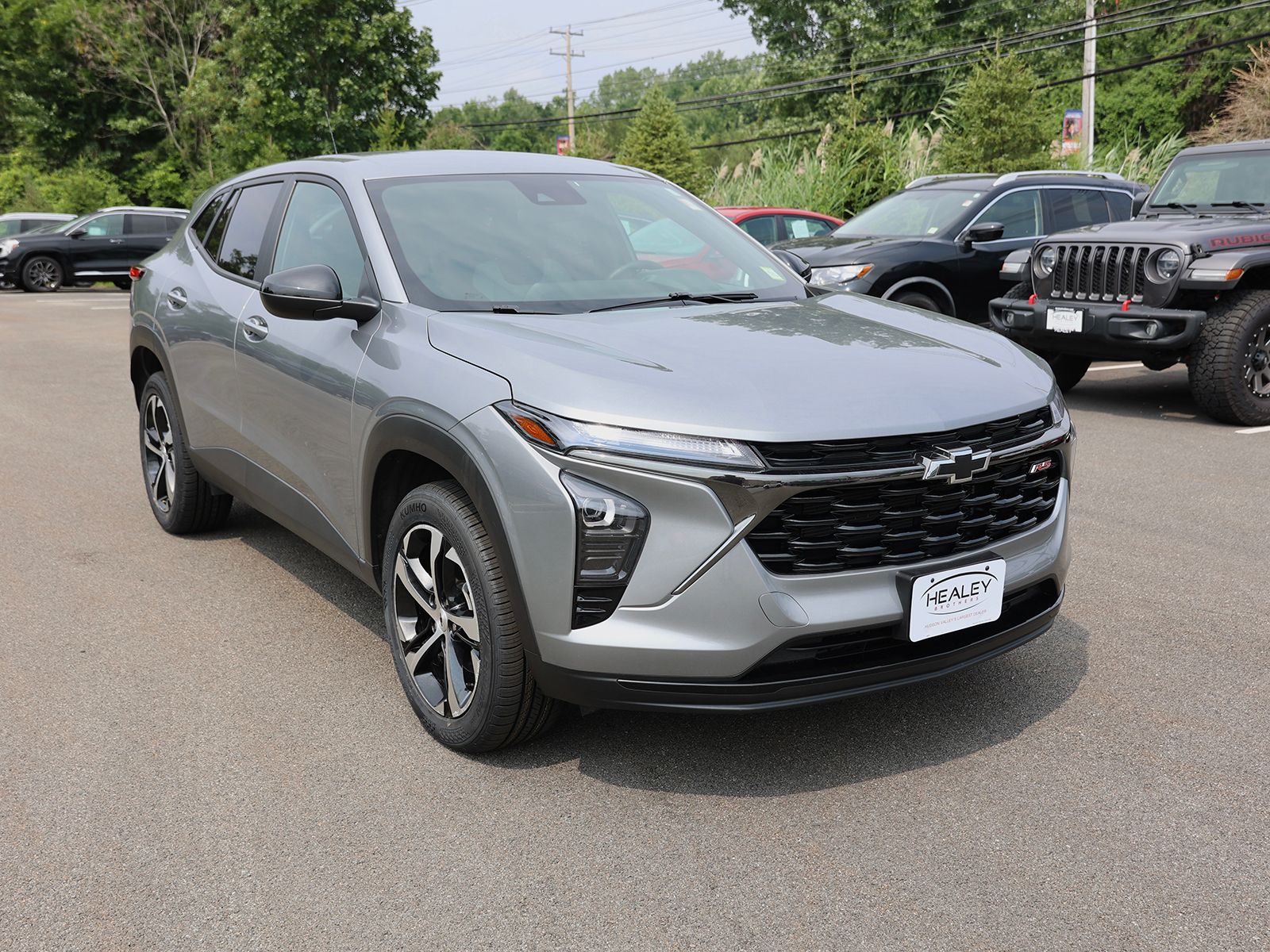

Vehicle Name - Chevrolet Trax

Body Style - Sport Utility Vehicle

Drivetrain - Front Wheel Drive

EPA Classification - Small Sport Utility Vehicle

Passenger Capacity - 5

Passenger Volume (ft?) - 98

Base Curb Weight (lbs) - 3014

EPA Greenhouse Gas Score - 6

Fuel Economy Est-Combined (MPG) - 30

EPA Fuel Economy Est - City (MPG) - 28

EPA Fuel Economy Est - Hwy (MPG) - 32

Tons/yr of CO2 Emissions @ 15K mi/year - 5.9

Dead Weight Hitch - Max Trailer Wt. (lbs) - - TBD -

Dead Weight Hitch - Max Tongue Wt. (lbs) - - TBD -

Wt Distributing Hitch - Max Trailer Wt. (lbs) - - TBD -

Wt Distributing Hitch - Max Tongue Wt. (lbs) - - TBD -

Engine Order Code - LBP

Engine Type - Turbocharged Gas 3-Cyl

Displacement - 1.2L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 137 @ 5000

SAE Net Torque @ RPM - 162 @ 2500

Trans Order Code - MNH

Trans Type - 6

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.58

Second Gear Ratio (:1) - 2.96

Third Gear Ratio (:1) - 1.91

Fourth Gear Ratio (:1) - 1.44

Fifth Gear Ratio (:1) - 1.00

Sixth Gear Ratio (:1) - 0.74

Reverse Ratio (:1) - 2.94

Clutch Size (in) -

Final Drive Axle Ratio (:1) - 3.50

Transfer Case Gear Ratio (:1), High -

Transfer Case Gear Ratio (:1), Low -

Cold Cranking Amps @ 0? F (Primary) - 760

Maximum Alternator Capacity (amps) - 130

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Compound Crank

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - QAI

Rear Tire Order Code - QAI

Spare Tire Order Code - ZDC

Front Tire Size - 225/55R18

Rear Tire Size - 225/55R18

Spare Tire Size - Compact

Front Wheel Size (in) - 18 x - TBD -

Rear Wheel Size (in) - 18 x - TBD -

Spare Wheel Size (in) - 16 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), Overall - - TBD -

Lock to Lock Turns (Steering) - - TBD -

Turning Diameter - Curb to Curb (ft) - - TBD -

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - - TBD -

Rear Brake Rotor Diam x Thickness (in) - - TBD -

Drum - Rear (Yes or ) - - TBD -

Rear Drum Diam x Width (in) - - TBD -

Fuel Tank Capacity, Approx (gal) - 13.2

Front Head Room (in) - 39.6

Second Head Room (in) - 38.1

Front Leg Room (in) - 41.9

Second Leg Room (in) - 38.7

Front Shoulder Room (in) - 55.7

Second Shoulder Room (in) - 54.3

Front Hip Room (in) - 52.1

Second Hip Room (in) - 45.8

Wheelbase (in) - 106

Length, Overall (in) - 178.6

Width, Max w/o mirrors (in) - 71.8

Height, Overall (in) - 61.42

Track Width, Front (in) - 61.5

Track Width, Rear (in) - 62.13

Min Ground Clearance (in) - 7.3

Rear Door Opening Height (in) - - TBD -

Rear Door Opening Width (in) - - TBD -

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - - TBD -

Cargo Area Length @ Floor to Seat 3 (in) -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - - TBD -

Liftover Height (in) - - TBD -

Cargo Volume to Seat 1 (ft?) - 54.1

Cargo Volume to Seat 2 (ft?) - 25.6

Cargo Volume to Seat 3 (ft?) -

Model Group - Trax

Vehicle Segment - Subcompact Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 1.2

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 3

Engine Valve Count - 4

Country of Origin - South Korea To Be Determined Passenger Car, Mpv & Truck
