ENGINE: 2.4L I4 ZERO EVAP M-AIR W/ESS

REDLINE PEARLCOAT

BLACK, CLOTH LOW-BACK BUCKET SEATS

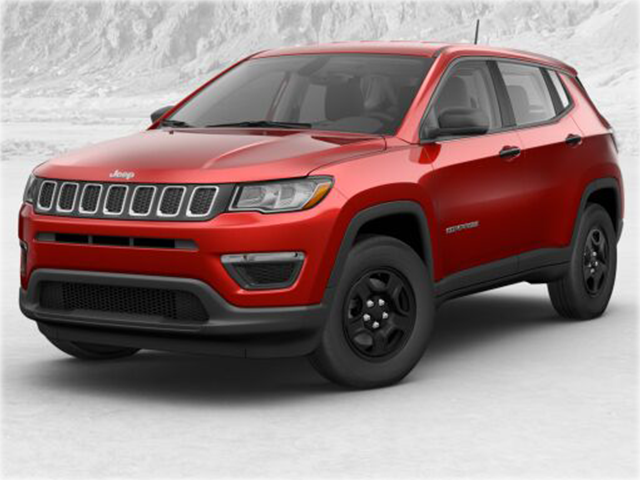

Vehicle Name - Jeep Compass

Body Style - Sport Utility

Drivetrain - Four Wheel Drive

EPA Classification - Small SUV 4WD

Passenger Capacity - 5

Passenger Volume (ft?) - 99.6

Base Curb Weight (lbs) - 3327

Fuel Economy Est-Combined (MPG) - 25

EPA Fuel Economy Est - City (MPG) - 22

EPA Fuel Economy Est - Hwy (MPG) - 30

Dead Weight Hitch - Max Trailer Wt. (lbs) - 2000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 200

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 2000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 200

Maximum Trailering Capacity (lbs) - 2000

Engine Order Code - EDE

Engine Type - Regular Unleaded I-4

Displacement - 2.4 L/144

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 180 @ 6400

SAE Net Torque @ RPM - 175 @ 3900

Trans Order Code - DF5

Trans Type - 9

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.70

Second Gear Ratio (:1) - 2.84

Third Gear Ratio (:1) - 1.91

Fourth Gear Ratio (:1) - 1.38

Fifth Gear Ratio (:1) - 1.00

Sixth Gear Ratio (:1) - 0.81

Reverse Ratio (:1) - 3.81

Final Drive Axle Ratio (:1) - 3.83

Cold Cranking Amps @ 0? F (Primary) - 500

Tons/yr of CO2 Emissions @ 15K mi/year - 7.0

Maximum Alternator Capacity (amps) - 160

Suspension Type - Front - Strut

Suspension Type - Rear - Strut

Suspension Type - Front (Cont.) - Strut

Suspension Type - Rear (Cont.) - Strut

Front Tire Order Code - TM9

Rear Tire Order Code - TM9

Spare Tire Order Code - TBC

Front Tire Size - P215/65HR16

Rear Tire Size - P215/65HR16

Spare Tire Size - Compact

Front Wheel Size (in) - 16 X 6.5

Rear Wheel Size (in) - 16 X 6.5

Spare Wheel Size (in) - Compact

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 36.3

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12

Rear Brake Rotor Diam x Thickness (in) - 11

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 13.5

Front Head Room (in) - 39.2

Front Leg Room (in) - 41.8

Front Shoulder Room (in) - 56.7

Front Hip Room (in) - 54.1

Second Head Room (in) - 38.5

Second Leg Room (in) - 38.3

Second Shoulder Room (in) - 55.1

Second Hip Room (in) - 49.2

Wheelbase (in) - 103.8

Length, Overall (in) - 173

Width, Max w/o mirrors (in) - 73.8

Height, Overall (in) - 64.6

Track Width, Front (in) - 60.7

Track Width, Rear (in) - 60.3

Min Ground Clearance (in) - 8.2

Cargo Area Width @ Beltline (in) - 42.1

Cargo Box Width @ Wheelhousings (in) - 38.1

Cargo Box (Area) Height (in) - 27.2

Liftover Height (in) - 29.7

Cargo Volume to Seat 1 (ft?) - 59.8

Cargo Volume to Seat 2 (ft?) - 27.2

Seventh Gear Ratio (:1) - 0.70

Eighth Gear Ratio (:1) - 0.58

Model Group - Compass

Vehicle Segment - Subcompact Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 2.4

Engine Camshaft - SOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - Mexico MPV
