EMISSIONS, FEDERAL REQUIREMENTS

1LT PREFERRED EQUIPMENT GROUP

TIRES, P225/55R17 ALL-SEASON, BLACKWALL

SUMMIT WHITE

JET BLACK, PREMIUM CLOTH SEAT TRIM

TOOL KIT, ROAD EMERGENCY

WHEEL, SPARE, 16" (40.6 CM) STEEL

TIRE, COMPACT SPARE, T125/80R16

DELETED 3 YEARS OF ONSTAR REMOTE ACCESS

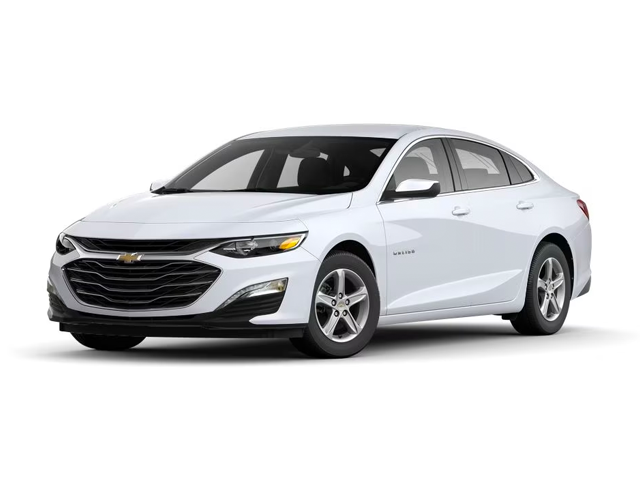

Vehicle Name - Chevrolet Malibu

Body Style - Sedan

Drivetrain - Front Wheel Drive

EPA Classification - Midsize Cars

Passenger Capacity - 5

Passenger Volume (ft?) - 102.9

Base Curb Weight (lbs) - 3159

Number of Passenger Doors - 4

Fuel Economy Est-Combined (MPG) - 30 (2023)

EPA Fuel Economy Est - City (MPG) - 27 (2023)

EPA Fuel Economy Est - Hwy (MPG) - 35 (2023)

Tons/yr of CO2 Emissions @ 15K mi/year - 5.9 (2023)

Dead Weight Hitch - Max Trailer Wt. (lbs) -

Dead Weight Hitch - Max Tongue Wt. (lbs) -

Wt Distributing Hitch - Max Trailer Wt. (lbs) -

Wt Distributing Hitch - Max Tongue Wt. (lbs) -

Engine Order Code - LFV

Engine Type - Turbocharged Gas I4

Displacement - 1.5L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 163 @ 5700

SAE Net Torque @ RPM - 184 @ 2500-3000

Trans Order Code - MRG

Trans Type - 1

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - - TBD -

Second Gear Ratio (:1) -

Third Gear Ratio (:1) -

Fourth Gear Ratio (:1) -

Fifth Gear Ratio (:1) -

Sixth Gear Ratio (:1) -

Seventh Gear Ratio (:1) -

Eighth Gear Ratio (:1) -

Reverse Ratio (:1) - - TBD -

Clutch Size (in) - N/A

Final Drive Axle Ratio (:1) - 5.10

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - - TBD -

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Four-Link

Suspension Type - Front (Cont.) - w/Coil Springs

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - N/A

Shock Absorber Diameter - Rear (mm) - N/A

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - RA9

Rear Tire Order Code - RA9

Spare Tire Order Code - ZAM

Front Tire Size - P225/55R17

Rear Tire Size - P225/55R17

Spare Tire Size - T125/80R16

Front Wheel Size (in) - 17 x 8

Rear Wheel Size (in) - 17 x 8

Spare Wheel Size (in) - 16 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), Overall - - TBD -

Lock to Lock Turns (Steering) - - TBD -

Turning Diameter - Curb to Curb (ft) - 37

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 11.8 x - TBD -

Rear Brake Rotor Diam x Thickness (in) - 11.3 x - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 15.8

Front Head Room (in) - 39.1

Front Leg Room (in) - 41.5

Front Shoulder Room (in) - 58.5

Front Hip Room (in) - 54.1

Second Head Room (in) - 37.5

Second Leg Room (in) - 38.1

Second Shoulder Room (in) - 57.1

Second Hip Room (in) - 53.4

Wheelbase (in) - 111

Length, Overall (in) - 194.2

Width, Max w/o mirrors (in) - 73

Height, Overall (in) - 57.3

Track Width, Front (in) - 62.6

Track Width, Rear (in) - 62.5

Min Ground Clearance (in) - - TBD -

Liftover Height (in) - - TBD -

Trunk Volume (ft?) - 15.7

Model Group - Malibu

Vehicle Segment - Intermediate

Vehicle Type - Sedan

Engine Displacement Units - 1.5

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - United States Chevrolet Passenger car
