ENGINE: 5.7L V8 HEMI MDS VVT ETORQUE

MAXIMUM STEEL METALLIC CLEARCOAT

BLACK, DELUXE CLOTH BUCKET SEATS

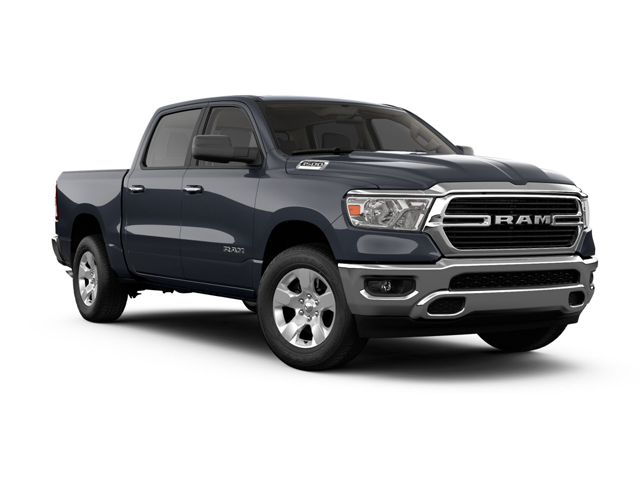

Vehicle Name - Ram 1500

Body Style - Crew Cab

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 5302

Gross Axle Wt Rating - Front (lbs) - 3900

Gross Axle Wt Rating - Rear (lbs) - 4100

Curb Weight - Front (lbs) - 3042

Curb Weight - Rear (lbs) - 2190

Gross Vehicle Weight Rating Cap (lbs) - 7100

Fuel Economy Est-Combined (MPG) - 19

EPA Fuel Economy Est - City (MPG) - 17

EPA Fuel Economy Est - Hwy (MPG) - 22

Gross Combined Wt Rating (lbs) - 12900

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 11190

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 1119

Maximum Trailering Capacity (lbs) - 11190

Engine Order Code - EZL

Engine Type - Regular Gasoline V-8

Displacement - 5.7 L/345

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 395 @ 5600

SAE Net Torque @ RPM - 410 @ 3950

Trans Order Code - DFR

Trans Type - 8

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.71

Second Gear Ratio (:1) - 3.14

Third Gear Ratio (:1) - 2.11

Fourth Gear Ratio (:1) - 1.67

Fifth Gear Ratio (:1) - 1.28

Sixth Gear Ratio (:1) - 1.00

Reverse Ratio (:1) - 3.29

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 730

Cold Cranking Amps @ 0? F (2nd) - 730

Tons/yr of CO2 Emissions @ 15K mi/year - 9.3

Maximum Alternator Capacity (amps) -

Engine Oil Cooler - Yes

Suspension Type - Front - Short And Long Arm

Suspension Type - Rear - Multi-Link

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 3.55

Axle Ratio (:1) - Rear - 3.55

Front Tire Order Code - TCP

Rear Tire Order Code - TCP

Spare Tire Order Code - TBB

Front Tire Size - LT275/65SR18

Rear Tire Size - LT275/65SR18

Spare Tire Size - Full-Size

Front Wheel Size (in) - 20 X 9

Rear Wheel Size (in) - 20 X 9

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Aluminum

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 46.2

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 14.9

Rear Brake Rotor Diam x Thickness (in) - 14.8

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 23

Front Head Room (in) - 40.9

Front Leg Room (in) - 40.9

Front Shoulder Room (in) - 66

Front Hip Room (in) - 63.4

Second Head Room (in) - 39.8

Second Leg Room (in) - 45.2

Second Shoulder Room (in) - 65.7

Second Hip Room (in) - 63.4

Wheelbase (in) - 144.5

Length, Overall (in) - 232.9

Width, Max w/o mirrors (in) - 82.1

Height, Overall (in) - 77.6

Ground Clearance, Front (in) - 8.2

Ground Clearance, Rear (in) - 8.2

Cargo Box Length @ Floor (in) - 67.4

Cargo Box Width @ Top, Rear (in) - 66.4

Cargo Box Width @ Floor (in) - 66.4

Cargo Box Width @ Wheelhousings (in) - 51

Cargo Box (Area) Height (in) - 21.4

Tailgate Width (in) - 0

Cargo Volume (ft?) - 53.9

Seventh Gear Ratio (:1) - 0.84

Eighth Gear Ratio (:1) - 0.67

Gross Traction Battery Capacity (kWh) - 0.4

Model Group - Ram Pickups

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 3.6

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States RAM, Jeep Truck
