TACTICAL GREEN METALLIC

CHARCOAL, PREMIUM CLOTH SEAT TRIM

[V01] TECHNOLOGY PACKAGE

[C03] 50 STATE EMISSIONS

[T92] TOW PACKAGE

[B92] SPLASH GUARDS

[L93] CARPETED FLOOR MATS

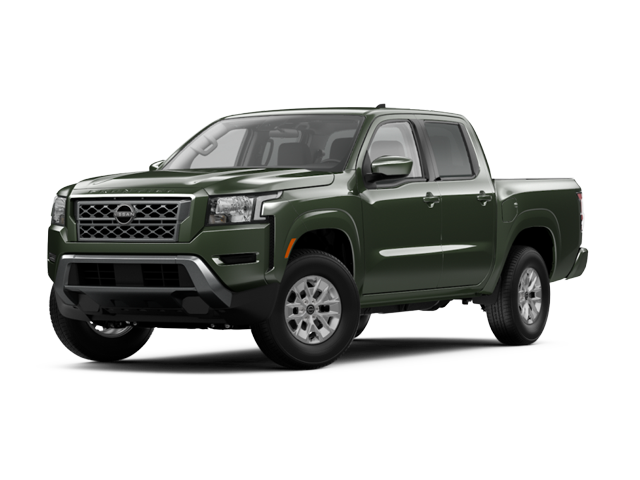

Vehicle Name - Nissan Frontier

Body Style - Crew Cab

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 4642

Gross Axle Wt Rating - Front (lbs) - 3296

Gross Axle Wt Rating - Rear (lbs) - 3501

Gross Vehicle Weight Rating Cap (lbs) - 6012

Fuel Economy Est-Combined (MPG) - 19 (2023)

EPA Fuel Economy Est - City (MPG) - 17 (2023)

EPA Fuel Economy Est - Hwy (MPG) - 22 (2023)

Gross Combined Wt Rating (lbs) - 11427

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 6350

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 635

Maximum Trailering Capacity (lbs) - 6350

Engine Order Code -

Engine Type - Regular Unleaded V-6

Displacement - 3.8 L/231

Fuel System - Gasoline Direct Injection

SAE Net Horsepower @ RPM - 310 @ 6400

SAE Net Torque @ RPM - 281 @ 4400

Trans Order Code -

Trans Type - 9

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 5.42

Second Gear Ratio (:1) - 3.26

Third Gear Ratio (:1) - 2.25

Fourth Gear Ratio (:1) - 1.65

Fifth Gear Ratio (:1) - 1.22

Sixth Gear Ratio (:1) - 1.00

Reverse Ratio (:1) - 4.80

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Tons/yr of CO2 Emissions @ 15K mi/year - 9.3 (2023)

Maximum Alternator Capacity (amps) - 185

Engine Oil Cooler - None

Suspension Type - Front - Double Wishbone

Suspension Type - Rear - Leaf

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 3.69

Axle Ratio (:1) - Rear - 3.69

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - P265/65SR17

Rear Tire Size - P265/65SR17

Spare Tire Size - Full-Size

Front Wheel Size (in) - 17 X 7.5

Rear Wheel Size (in) - 17 X 7.5

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 43.3

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 11.7

Rear Brake Rotor Diam x Thickness (in) - 11.3

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 21.1

Front Head Room (in) - 39.9

Front Leg Room (in) - 42.3

Front Shoulder Room (in) - 58.2

Front Hip Room (in) - 54.3

Second Head Room (in) - 38.6

Second Leg Room (in) - 33.2

Second Shoulder Room (in) - 58.3

Second Hip Room (in) - 53.7

Wheelbase (in) - 126

Length, Overall (in) - 210.2

Width, Max w/o mirrors (in) - 73

Height, Overall (in) - 72

Ground Clearance, Front (in) - 7.7

Ground Clearance, Rear (in) - 7.7

Cargo Box Length @ Floor (in) - 59.5

Cargo Box Width @ Top, Rear (in) - 61.4

Cargo Box Width @ Floor (in) - 61.4

Cargo Box Width @ Wheelhousings (in) - 44.5

Cargo Box (Area) Height (in) - 19.4

Cargo Volume (ft?) - 40.1

Seventh Gear Ratio (:1) - 0.86

Eighth Gear Ratio (:1) - 0.71

Model Group - Frontier

Vehicle Segment - Small Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 3.8

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States Nissan Pick-Up Truck
