BRIGHT SILVER METALLIC CLEARCOAT

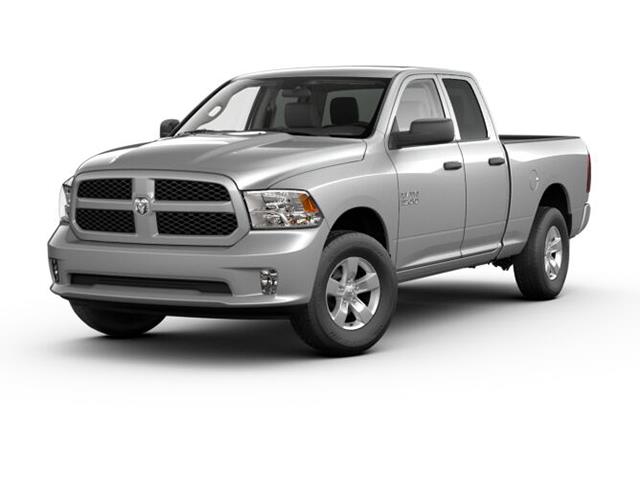

Vehicle Name - Ram 1500

Body Style - Quad Cab

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 6

Base Curb Weight (lbs) - 5091

Gross Axle Wt Rating - Front (lbs) - 3900

Gross Axle Wt Rating - Rear (lbs) - 3900

Curb Weight - Front (lbs) - 2873

Curb Weight - Rear (lbs) - 2189

Gross Vehicle Weight Rating Cap (lbs) - 6900

Fuel Economy Est-Combined (MPG) - 19

EPA Fuel Economy Est - City (MPG) - 16

EPA Fuel Economy Est - Hwy (MPG) - 23

Gross Combined Wt Rating (lbs) - 12850

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 10270

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 1027

Maximum Trailering Capacity (lbs) - 10270

Engine Order Code - ERB

Engine Type - Regular Unleaded V-6

Displacement - 3.6 L/220

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 305 @ 6400

SAE Net Torque @ RPM - 269 @ 4175

Trans Order Code - DFD

Trans Type - 8

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.71

Second Gear Ratio (:1) - 3.14

Third Gear Ratio (:1) - 2.10

Fourth Gear Ratio (:1) - 1.67

Fifth Gear Ratio (:1) - 1.29

Sixth Gear Ratio (:1) - 1.00

Reverse Ratio (:1) - 3.30

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 730

Cold Cranking Amps @ 0? F (2nd) - 730

Tons/yr of CO2 Emissions @ 15K mi/year - 9.3

Maximum Alternator Capacity (amps) - 160

Engine Oil Cooler - Regular Duty

Suspension Type - Front - Short And Long Arm

Suspension Type - Rear - Multi-Link

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Capacity - Front (lbs) - 3900

Axle Capacity - Rear (lbs) - 3900

Axle Ratio (:1) - Front - 3.55

Axle Ratio (:1) - Rear - 3.55

Front Tire Order Code - TTN

Rear Tire Order Code - TTN

Spare Tire Order Code - TBS

Front Tire Size - P275/60SR20

Rear Tire Size - P275/60SR20

Spare Tire Size - Full-Size

Front Tire Capacity (lbs) - 4728

Rear Tire Capacity (lbs) - 4728

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - 636

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - 636

Front Wheel Size (in) - 20 X 8

Rear Wheel Size (in) - 20 X 8

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 45.8

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.2

Rear Brake Rotor Diam x Thickness (in) - 13.8

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 32

Front Head Room (in) - 41

Front Leg Room (in) - 41

Front Shoulder Room (in) - 66

Front Hip Room (in) - 63.2

Second Head Room (in) - 39.7

Second Leg Room (in) - 34.7

Second Shoulder Room (in) - 65.7

Second Hip Room (in) - 62.9

Wheelbase (in) - 140

Length, Overall (in) - 229

Width, Max w/o mirrors (in) - 79.4

Height, Overall (in) - 77.7

Overhang, Rear w/o bumper (in) - 48.4

Cab to Axle (in) - 36.9

Ground to Top of Load Floor (in) - 36.3

Ground Clearance, Front (in) - 8.7

Ground Clearance, Rear (in) - 8.7

Cargo Box Length @ Floor (in) - 76.3

Cargo Box Width @ Top, Rear (in) - 55.1

Cargo Box Width @ Floor (in) - 55.1

Cargo Box Width @ Wheelhousings (in) - 49

Cargo Box (Area) Height (in) - 20.1

Tailgate Width (in) - 48.1

Cargo Volume (ft?) - 57.5

Seventh Gear Ratio (:1) - 0.84

Eighth Gear Ratio (:1) - 0.67

Model Group - Ram Pickups

Vehicle Segment - Large Pick-up

Vehicle Type - Quad Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 5.7

Engine Camshaft - OHV

Engine Block Type - iron

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States RAM, Jeep Truck
