ENGINE: 2.4L I4 MULTIAIR

ALPINE WHITE

BLACK, DELUXE CLOTH HIGH-BACK BUCKET SEATS

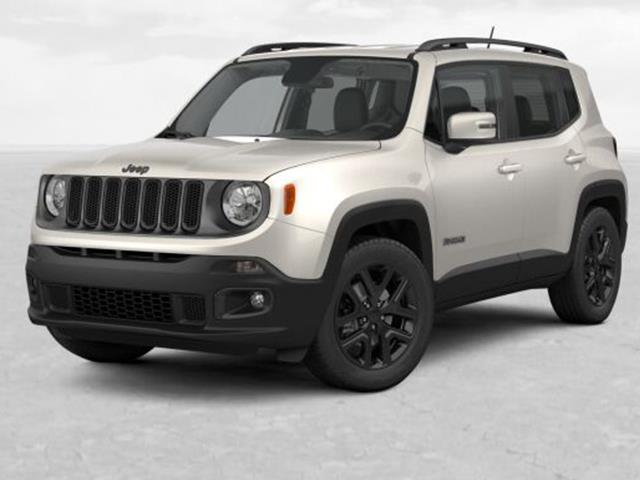

Vehicle Name - Jeep Renegade

Body Style - Sport Utility

Drivetrain - Four Wheel Drive

EPA Classification - Small SUV 4WD

Passenger Capacity - 5

Passenger Volume (ft?) - 100.1

Base Curb Weight (lbs) - 3327

Fuel Economy Est-Combined - 24

EPA Fuel Economy Est - City (MPG) - 21

EPA Fuel Economy Est - Hwy (MPG) - 29

Dead Weight Hitch - Max Trailer Wt. (lbs) - 2000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 200

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 2000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 200

Maximum Trailering Capacity - 2000

Engine Order Code - ED6

Engine Type - Regular Unleaded I-4

Displacement - 2.4 L/144

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 180 @ 6400

SAE Net Torque @ RPM - 175 @ 3900

Trans Order Code - DFH

Trans Type - 9

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.70

Second Gear Ratio (:1) - 2.84

Third Gear Ratio (:1) - 1.91

Fourth Gear Ratio (:1) - 1.38

Fifth Gear Ratio (:1) - 1.00

Sixth Gear Ratio (:1) - 0.81

Reverse Ratio (:1) - 3.81

Final Drive Axle Ratio (:1) - 3.73

Cold Cranking Amps @ 0? F (Primary) - 600

Tons/yr of CO2 Emissions @ 15K mi/year - 7.3

Maximum Alternator Capacity (amps) - 160

Suspension Type - Front - Strut

Suspension Type - Rear - Multi-Link

Suspension Type - Front (Cont.) - Strut

Suspension Type - Rear (Cont.) - Multi-Link

Front Tire Order Code - TWL

Rear Tire Order Code - TWL

Spare Tire Order Code - TBS

Front Tire Size - P225/55TR18

Rear Tire Size - P225/55TR18

Spare Tire Size - Full-Size

Front Wheel Size (in) - 18 X 8

Rear Wheel Size (in) - 18 X 8

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Aluminum

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 36.3

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12

Rear Brake Rotor Diam x Thickness (in) - 11

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 12.7

Front Head Room (in) - 39.7

Front Leg Room (in) - 41.2

Front Shoulder Room (in) - 55.9

Front Hip Room (in) - 53.1

Second Head Room (in) - 40.5

Second Leg Room (in) - 35.1

Second Shoulder Room (in) - 55.1

Second Hip Room (in) - 51.9

Wheelbase (in) - 101.2

Length, Overall (in) - 166.6

Width, Max w/o mirrors (in) - 74.2

Height, Overall (in) - 66.5

Track Width, Front (in) - 60.6

Track Width, Rear (in) - 60.6

Min Ground Clearance (in) - 7.9

Cargo Area Width @ Beltline (in) - 40.1

Cargo Box Width @ Wheelhousings (in) - 37.6

Liftover Height (in) - 29.8

Cargo Volume to Seat 1 (ft?) - 50.8

Cargo Volume to Seat 2 (ft?) - 18.5

Seventh Gear Ratio (:1) - 0.70

Eighth Gear Ratio (:1) - 0.58

Model Group - Renegade

Vehicle Segment - Subcompact Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 2.4

Engine Camshaft - SOHC

Engine Block Type - iron

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - Italy Autobianchi, Alfa Romeo, Jeep, Lancia, Innocenti, Fiat Passenger Car, MPV, Bus, Truck, Recreational Vehicle, Low-Speed Vehicle, Other special purpose vehicle
