EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

LT PREFERRED EQUIPMENT GROUP

SUMMIT WHITE

JET BLACK, PREMIUM CLOTH SEAT TRIM

LPO, INTERIOR PROTECTION PACKAGE

LPO, FRONT AND REAR SPLASH GUARDS, CUSTOM MOLDED

LICENSE PLATE BRACKET, FRONT

LPO, ALL-WEATHER FLOOR MATS

LPO, CARGO MAT

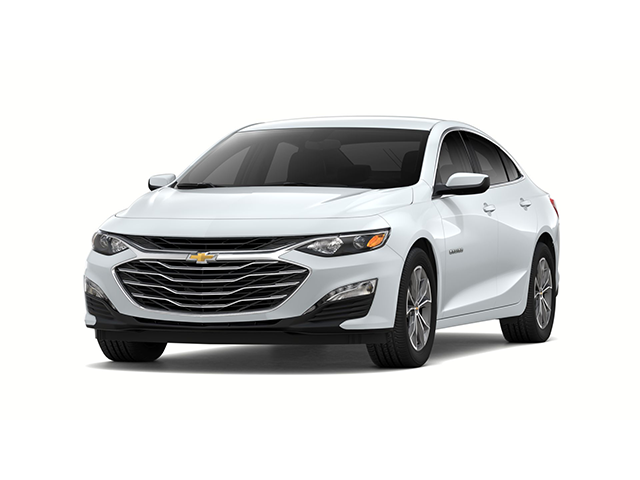

Vehicle Name - Chevrolet Malibu

Body Style - Sedan

Drivetrain - Front Wheel Drive

EPA Classification - Midsize Cars

Passenger Capacity - 5

Passenger Volume (ft?) - 102.9

Base Curb Weight (lbs) - 3159

Number of Passenger Doors - 4

Tons/yr of CO2 Emissions @ 15K mi/year - 5.5

EPA Greenhouse Gas Score - 7

Fuel Economy Est-Combined (MPG) - 32

EPA Fuel Economy Est - City (MPG) - 29

EPA Fuel Economy Est - Hwy (MPG) - 36

Dead Weight Hitch - Max Trailer Wt. (lbs) -

Dead Weight Hitch - Max Tongue Wt. (lbs) -

Wt Distributing Hitch - Max Trailer Wt. (lbs) -

Wt Distributing Hitch - Max Tongue Wt. (lbs) -

Engine Order Code - LFV

Engine Type - Turbocharged Gas I4

Displacement - 1.5L/91

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 160 @ 5700

SAE Net Torque @ RPM - 184 @ 2500-3000

Trans Order Code - MRG

Trans Type - 1

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) -

Second Gear Ratio (:1) -

Third Gear Ratio (:1) -

Fourth Gear Ratio (:1) -

Fifth Gear Ratio (:1) -

Sixth Gear Ratio (:1) -

Reverse Ratio (:1) -

Clutch Size (in) - N/A

Final Drive Axle Ratio (:1) - 5.10

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - - TBD -

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Four-Link

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) -

Shock Absorber Diameter - Rear (mm) -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - - TBD -

Rear Tire Order Code - - TBD -

Spare Tire Order Code - ZAM

Front Tire Size - 19"

Rear Tire Size - 19"

Spare Tire Size - T125/80R16

Front Wheel Size (in) - 19 x 8.5

Rear Wheel Size (in) - 19 x 8.5

Spare Wheel Size (in) - 16 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), Overall -

Lock to Lock Turns (Steering) -

Turning Diameter - Curb to Curb (ft) - 37.0

Turning Diameter - Wall to Wall (ft) -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 11.8 x - TBD -

Rear Brake Rotor Diam x Thickness (in) - 11.3 x - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 15.8

Front Head Room (in) - 39.1

Front Leg Room (in) - 41.5

Front Shoulder Room (in) - 58.5

Front Hip Room (in) - 54.1

Second Head Room (in) - 37.5

Second Leg Room (in) - 38.1

Second Shoulder Room (in) - 57.1

Second Hip Room (in) - 53.4

Wheelbase (in) - 111.4

Length, Overall (in) - 194.2

Width, Max w/o mirrors (in) - 73.0

Height, Overall (in) - 57.3

Track Width, Front (in) - 62.6

Track Width, Rear (in) - 62.5

Min Ground Clearance (in) -

Liftover Height (in) -

Trunk Volume (ft?) - 15.7

Model Group - Malibu

Vehicle Segment - Intermediate

Vehicle Type - Sedan

Engine Displacement Units - 1.5

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - United States Chevrolet Passenger car
