EQUIPMENT GROUP 100A STANDARD

VELOCITY BLUE METALLIC

EBONY, PREMIUM CLOTH FRONT BUCKET SEATS

TRAILER TOW PACKAGE

FRONT LICENSE PLATE BRACKET

BLACK RUNNING BOARDS

CARPET FLOOR COVERING W/CARPET FLOOR MATS

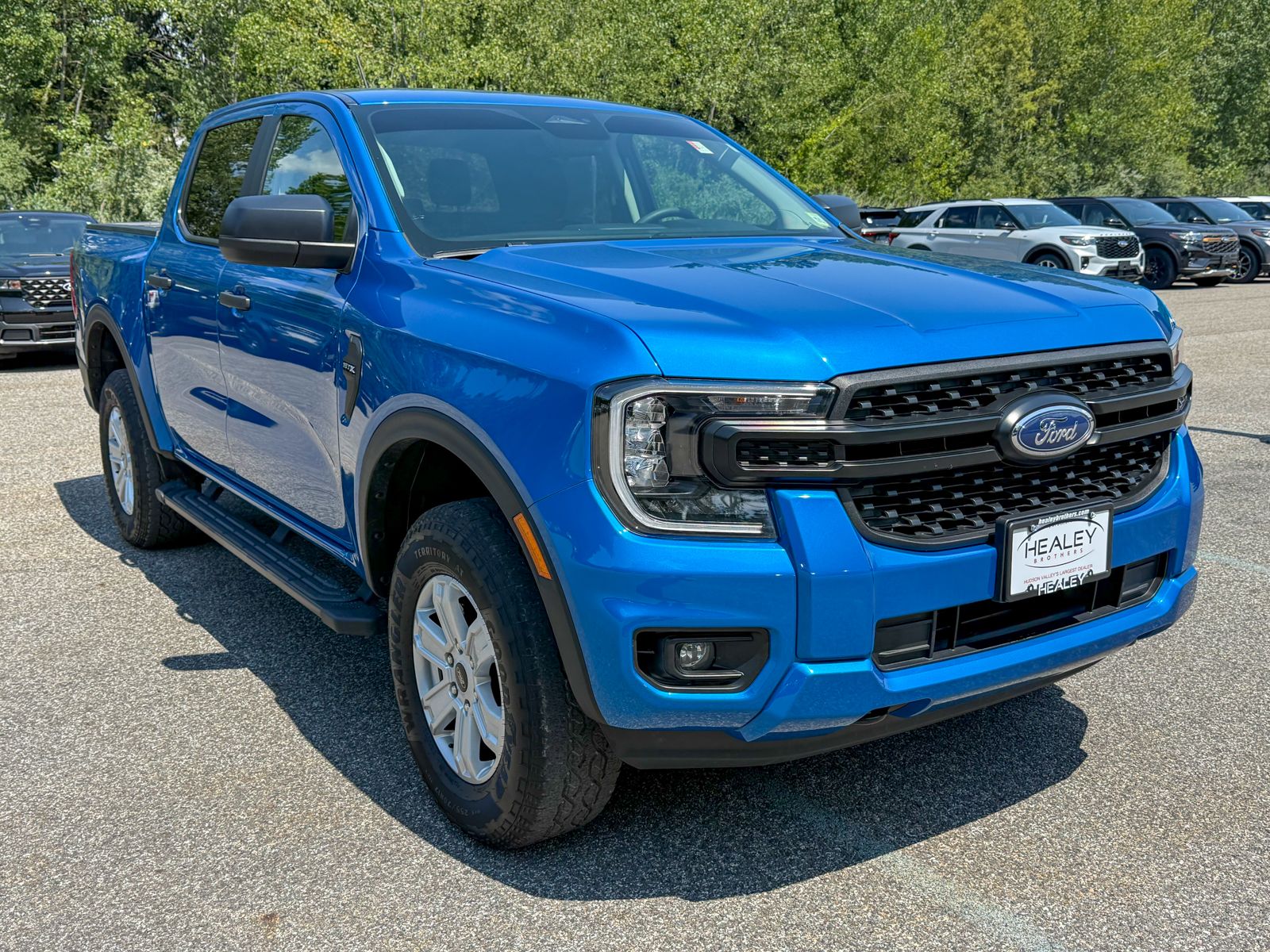

Vehicle Name - Ford Ranger

Body Style - SuperCrew

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 4415

Gross Axle Wt Rating - Front (lbs) - 3130

Gross Axle Wt Rating - Rear (lbs) - 3370

Curb Weight - Front (lbs) - 2554

Curb Weight - Rear (lbs) - 1887

EPA Greenhouse Gas Score - 5.0

Gross Vehicle Weight Rating Cap (lbs) - 6170

Fuel Economy Est-Combined (MPG) - 22

EPA Fuel Economy Est - City (MPG) - 20

EPA Fuel Economy Est - Hwy (MPG) - 24

Gross Combined Wt Rating (lbs) - 12500

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 7500

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 750

Maximum Trailering Capacity (lbs) - 7500

Engine Order Code - 99H

Engine Type - Intercooled Turbo Regular Gasoline I-4

Displacement - 2.3 L/140

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 270 @ 5500

SAE Net Torque @ RPM - 310 @ 3000

Trans Order Code - 44T

Trans Type - 10

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.71

Second Gear Ratio (:1) - 3.00

Third Gear Ratio (:1) - 2.15

Fourth Gear Ratio (:1) - 1.77

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.27

Reverse Ratio (:1) - 4.88

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Tons/yr of CO2 Emissions @ 15K mi/year - 8.0

Engine Oil Cooler - No

Suspension Type - Front - Short And Long Arm

Suspension Type - Rear - Leaf

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 3.73

Axle Ratio (:1) - Rear - 3.73

Front Tire Order Code - TGX

Rear Tire Order Code - TGX

Spare Tire Order Code -

Front Tire Size - LT255/70SR17

Rear Tire Size - LT255/70SR17

Spare Tire Size - Full-Size

Front Wheel Size (in) - 17 X 7.5

Rear Wheel Size (in) - 17 X 7.5

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 42.5

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.2

Rear Brake Rotor Diam x Thickness (in) - 12.1

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 18

Front Head Room (in) - 41

Front Leg Room (in) - 43.7

Front Shoulder Room (in) - 57.1

Front Hip Room (in) - 55.9

Second Head Room (in) - 39.8

Second Leg Room (in) - 34.6

Second Shoulder Room (in) - 56.7

Second Hip Room (in) - 54.1

Wheelbase (in) - 128.7

Length, Overall (in) - 210.6

Width, Max w/o mirrors (in) - 79

Height, Overall (in) - 74.4

Overhang, Front (in) - 35.8

Ground to Top of Load Floor (in) - 34.7

Ground Clearance, Front (in) - 9.3

Ground Clearance, Rear (in) - 9.3

Cargo Box Length @ Floor (in) - 59.6

Cargo Box Width @ Top, Rear (in) - 62.4

Cargo Box Width @ Floor (in) - 62.4

Cargo Box Width @ Wheelhousings (in) - 48.2

Cargo Box (Area) Height (in) - 20.9

Tailgate Width (in) - 55.4

Cargo Volume (ft?) - 43.5

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Model Group - Ranger

Vehicle Segment - Small Pick-up

Vehicle Type - SuperCrew

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 2.3

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - United States Ford
