EQUIPMENT GROUP 600A

SHADOW BLACK

EBONY, HEATED & COOLED PERFORATED LEATHER FR BUCKET SEATS

CALIFORNIA EMISSIONS SYSTEM

REAR LOAD-LEVELING SUSPENSION

LICENSE PLATE BRACKET

2ND ROW BUCKET SEATS

ALL-WEATHER FLOOR MATS (RPO)

DUAL-HEADREST DVD BY INVISION (PRE-INSTALLED)

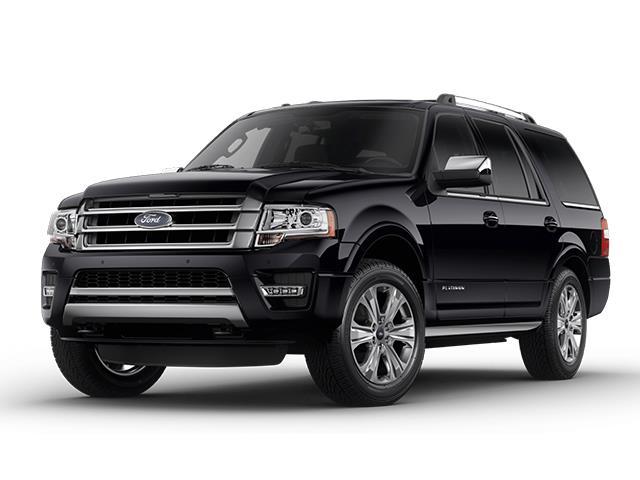

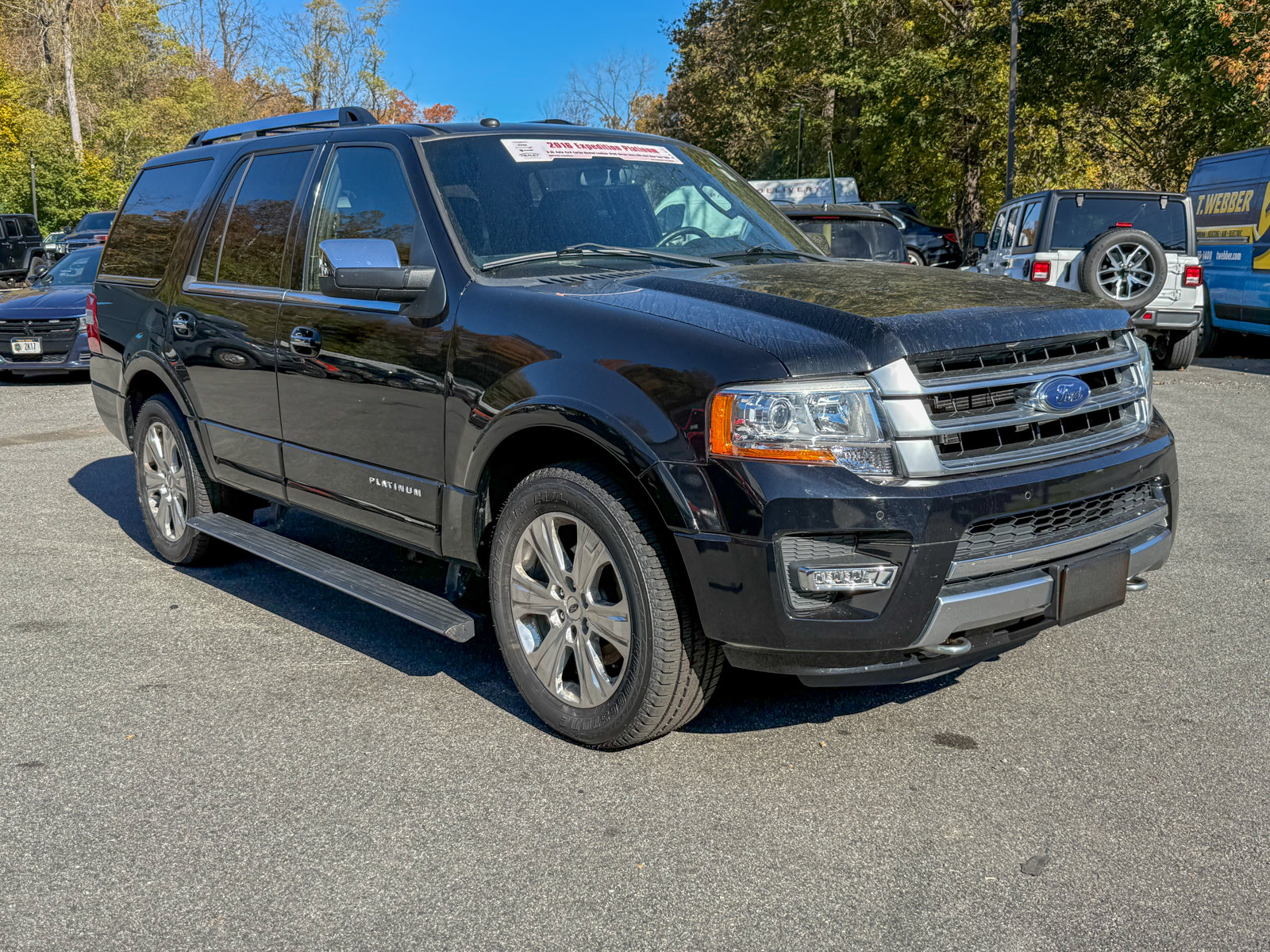

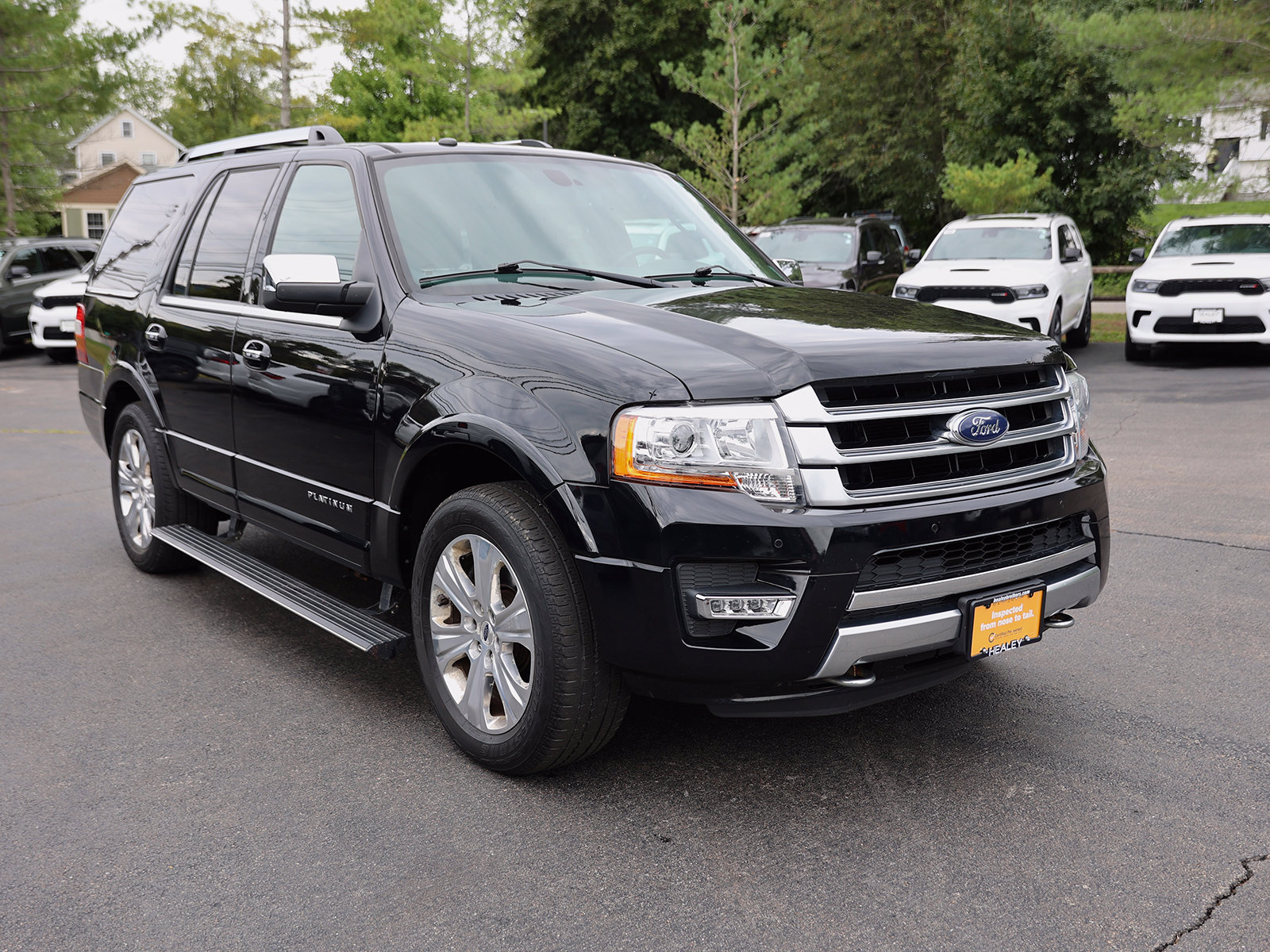

Vehicle Name - Ford Expedition

Body Style - Sport Utility

Body Code - S

Drivetrain - Four Wheel Drive

Passenger Capacity - 7

Base Curb Weight (lbs) - 5798

Curb Weight - Front (lbs) - 2926

Curb Weight - Rear (lbs) - 2863

Gross Vehicle Weight Rating Cap (lbs) - 7520

Fuel Economy Est-Combined - 17

EPA Fuel Economy Est - City (MPG) - 15

EPA Fuel Economy Est - Hwy (MPG) - 20

Gross Combined Wt Rating (lbs) - 12500

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 6600

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 660

Maximum Trailering Capacity - 6600

Engine Order Code - 99T

Engine Type - Twin Turbo Regular Unleaded V-6

Displacement - 3.5 L/213

Fuel System - Gasoline Direct Injection

SAE Net Horsepower @ RPM - 365 @ 5000

SAE Net Torque @ RPM - 420 @ 2500

Trans Order Code - 446

Trans Type - 6

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.17

Second Gear Ratio (:1) - 2.34

Third Gear Ratio (:1) - 1.54

Fourth Gear Ratio (:1) - 1.14

Fifth Gear Ratio (:1) - 0.87

Sixth Gear Ratio (:1) - 0.69

Reverse Ratio (:1) - 3.40

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 650

Cold Cranking Amps @ 0? F (2nd) - 650

Tons/yr of CO2 Emissions @ 15K mi/year - 10.4

Maximum Alternator Capacity (amps) - 250

Engine Oil Cooler - None

Suspension Type - Front - Double Wishbone

Suspension Type - Rear - Multi-Link

Axle Type - Front - Independent

Axle Type - Rear - Independent

Axle Ratio (:1) - Front - 3.73

Axle Ratio (:1) - Rear - 3.73

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - P285/45R22

Rear Tire Size - P285/45R22

Spare Tire Size - Full-Size

Front Wheel Size (in) - 22

Rear Wheel Size (in) - 22

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 40.8

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.5

Rear Brake Rotor Diam x Thickness (in) - 13.2

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 28

Front Head Room (in) - 39.6

Front Leg Room (in) - 41.1

Front Shoulder Room (in) - 63.2

Front Hip Room (in) - 60.2

Second Head Room (in) - 39.8

Second Leg Room (in) - 39.1

Second Shoulder Room (in) - 63.7

Second Hip Room (in) - 59.9

Third Head Room (in) - 38.3

Third Leg Room (in) - 37.7

Third Shoulder Room (in) - 51.9

Third Hip Room (in) - 50.2

Wheelbase (in) - 119

Length, Overall (in) - 206.5

Width, Max w/o mirrors (in) - 78.8

Height, Overall (in) - 77.2

Track Width, Front (in) - 67

Track Width, Rear (in) - 67.2

Min Ground Clearance (in) - 8.7

Cargo Area Length @ Floor to Seat 1 (in) - 82.5

Cargo Area Length @ Floor to Seat 2 (in) - 44.4

Cargo Area Length @ Floor to Seat 3 (in) - 13.1

Cargo Box Width @ Wheelhousings (in) - 49.2

Cargo Box (Area) Height (in) - 34.6

Liftover Height (in) - 34.8

Cargo Volume to Seat 1 (ft?) - 108.3

Cargo Volume to Seat 2 (ft?) - 55

Cargo Volume to Seat 3 (ft?) - 18.6

Model Group - Expedition

Vehicle Segment - Large Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 3.5

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States MPV
