Lakeshore Blue Metallic

Jet Black/Umber, Perforated Leather Seat Trim

EMISSIONS, COLORADO, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, MINNESOTA, NEVADA, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT, VIRGINIA AND WASHINGTON STATE REQUIREMENTS

GVWR, 10,850 LBS. (4921 KG)

REAR AXLE, 3.73 RATIO

HIGH COUNTRY PREFERRED EQUIPMENT GROUP includes standard equipment

TECHNOLOGY PACKAGE includes (DRZ) Rear Camera Mirror and (UV6) Multicolor 15" Diagonal Head-Up Display

Z71 OFF-ROAD PACKAGE includes (Z71) Off-Road suspension with off-road tuned twin tube Rancho shocks, (JHD) Hill Descent Control and (NZZ) skid plates (transfer case and oil pan)

SNOW PLOW PREP/CAMPER PACKAGE includes (KW5) 220-amp alternator, includes increased front GAWR on Heavy Duty models, (NZZ) skid plates (transfer case and oil pan), pass through dash grommet hole and roof emergency light provisions.

HILL DESCENT CONTROL

ALTERNATOR, 220 AMPS

TRAILERING WIRING PROVISIONS for trailering, 5th wheel and gooseneck trailer, includes additional 7-way wiring harness located at the rear of the pickup bed attached to the rear frame cross member

SKID PLATES protect the oil pan, front axle and transfer case

SUNROOF, POWER

LICENSE PLATE KIT, FRONT

TAILGATE, MULTI-FLEX with six functional load/access features, NOTE: Auto release can be disabled if ball hitch is installed. See Owner's manual for details

TAILGATE, GATE FUNCTION MANUAL WITH EZ LIFT includes power lock and release

3 YEARS SIRIUS XM

LPO, ALL-WEATHER FLOOR LINERS 1st and 2nd rows, (includes Z71 logo on front mats)

MULTICOLOR 15" DIAGONAL HEAD-UP DISPLAY

REAR CAMERA MIRROR, INSIDE REARVIEW AUTO-DIMMING with full camera display

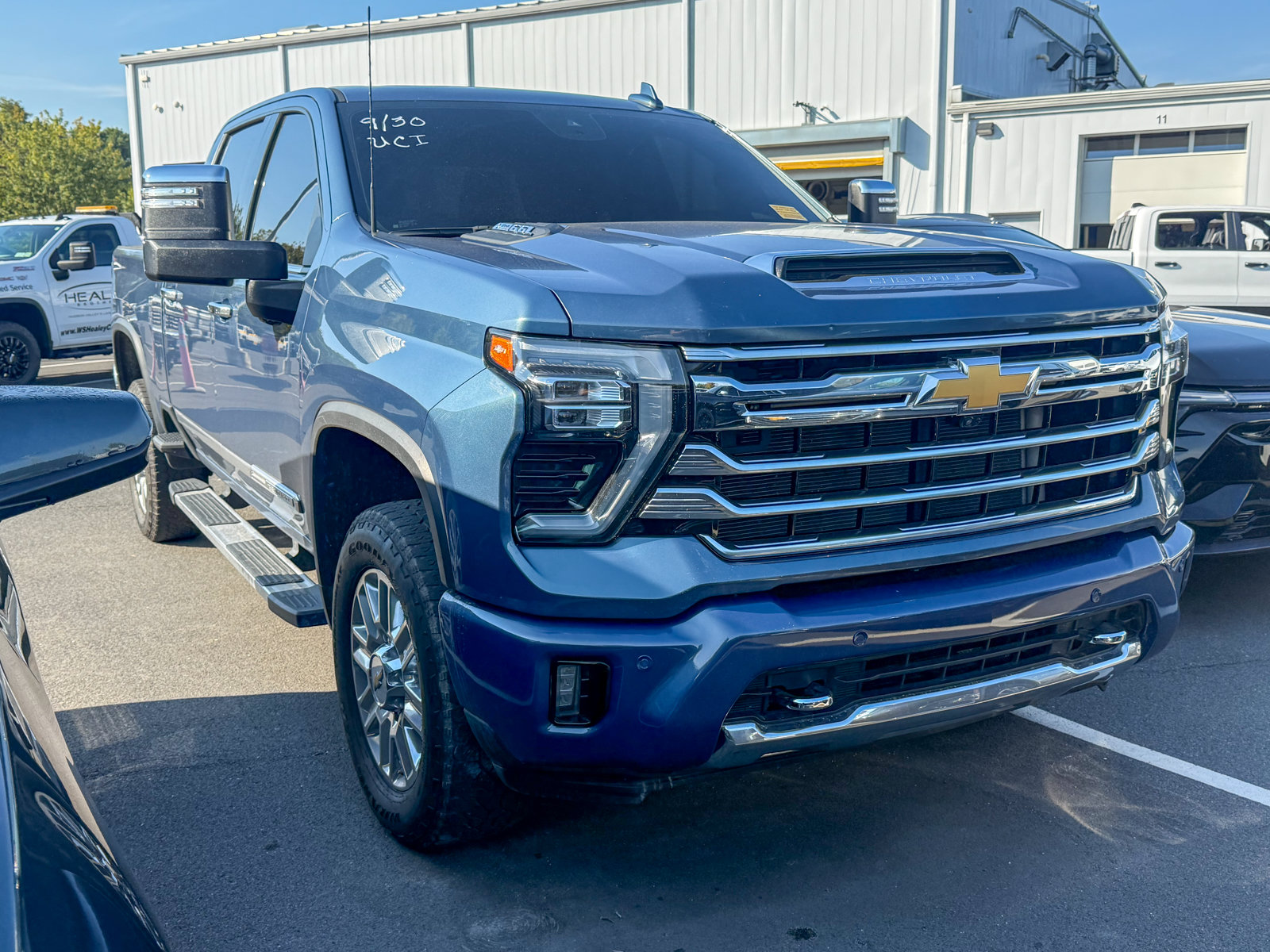

Vehicle Name - Chevrolet Silverado 2500HD

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Gross Axle Wt Rating - Front (lbs) - 6000

Gross Axle Wt Rating - Rear (lbs) - 7250

Curb Weight - Front (lbs) - 4013

Curb Weight - Rear (lbs) - 2812

Gross Vehicle Weight Rating Cap (lbs) - 10850

Fuel Economy Est-Combined (MPG) -

EPA Fuel Economy Est - City (MPG) -

EPA Fuel Economy Est - Hwy (MPG) -

Gross Combined Wt Rating (lbs) - 26000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - - TBD -

Wt Distributing Hitch - Max Tongue Wt. (lbs) - - TBD -

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - - TBD -

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - - TBD -

Maximum Trailering Capacity (lbs) - - TBD -

Engine Order Code - L8T

Engine Type - Gas V8

Displacement - 6.6L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 401 @ 5200

SAE Net Torque @ RPM - 464 @ 4000

Trans Order Code - MKM

Trans Type - 10

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.54

Second Gear Ratio (:1) - 2.87

Third Gear Ratio (:1) - 2.06

Fourth Gear Ratio (:1) - 1.72

Fifth Gear Ratio (:1) - 1.48

Sixth Gear Ratio (:1) - 1.26

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Ninth Gear Ratio (:1) - 0.69

Tenth Gear Ratio (:1) - 0.63

Reverse Ratio (:1) - 4.54

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - - TBD -

Transfer Case Gear Ratio (:1), High - - TBD -

Transfer Case Gear Ratio (:1), Low - - TBD -

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 720

Cold Cranking Amps @ 0? F (2nd) - 700

Tons/yr of CO2 Emissions @ 15K mi/year -

Maximum Alternator Capacity (amps) - 220

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - Yes

Frame Type - Hydroformed

Suspension Type - Front - Short/Long Arm

Suspension Type - Rear - Multi-Leaf Springs

Spring Capacity - Front (lbs) - - TBD -

Spring Capacity - Rear (lbs) - - TBD -

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - - TBD -

Axle Capacity - Rear (lbs) - - TBD -

Axle Ratio (:1) - Front -

Axle Ratio (:1) - Rear - 3.73

Shock Absorber Diameter - Front (mm) - 51

Shock Absorber Diameter - Rear (mm) - 51

Stabilizer Bar Diameter - Front (in) - 1.38

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QF9

Rear Tire Order Code - QF9

Spare Tire Order Code - ZYG

Front Tire Size - LT275/65R20

Rear Tire Size - LT275/65R20

Spare Tire Size - LT275/70R18

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - - TBD -

Front Wheel Size (in) - 22 x - TBD -

Rear Wheel Size (in) - 22 x - TBD -

Spare Wheel Size (in) - 18 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - - TBD -

Steering Type - Pwr

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 52.7

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 14.0 x 1.6

Rear Brake Rotor Diam x Thickness (in) - 14.1 x 1.3

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 36

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 43.03

Front Leg Room (in) - 44.53

Front Shoulder Room (in) - 66.02

Front Hip Room (in) - 61.18

Second Head Room (in) - 40.12

Second Leg Room (in) - 43.4

Second Shoulder Room (in) - 65.3

Second Hip Room (in) - 60.24

Wheelbase (in) - 158.94

Length, Overall (in) - 250.04

Width, Max w/o mirrors (in) - 81.85

Height, Overall (in) - 79.82

Overhang, Front (in) - - TBD -

Overhang, Rear w/o bumper (in) - - TBD -

Front Bumper to Back of Cab (in) - - TBD -

Cab to Axle (in) - 42.17

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - - TBD -

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 10.12

Ground Clearance, Rear (in) - 10.12

Cargo Box Length @ Floor (in) - 82.25

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - 71.4

Cargo Box Width @ Wheelhousings (in) - 51.85

Cargo Box (Area) Height (in) - 21

Tailgate Width (in) - - TBD -

Cargo Volume (ft?) - 69.5

Ext'd Cab Cargo Volume (ft?) - - TBD -

Model Group - Silverado

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 6.6

Engine Camshaft - OHV

Engine Block Type - iron

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States Chevrolet Trucks
