EQUIPMENT GROUP 100A STANDARD

CACTUS GRAY

BLACK ONYX, FRONT CLOTH BUCKET SEATS

FRONT LICENSE PLATE BRACKET

MODULAR HARD DROP-IN BEDLINER

FRONT & REAR FLOOR LINERS W/O CARPET MATS

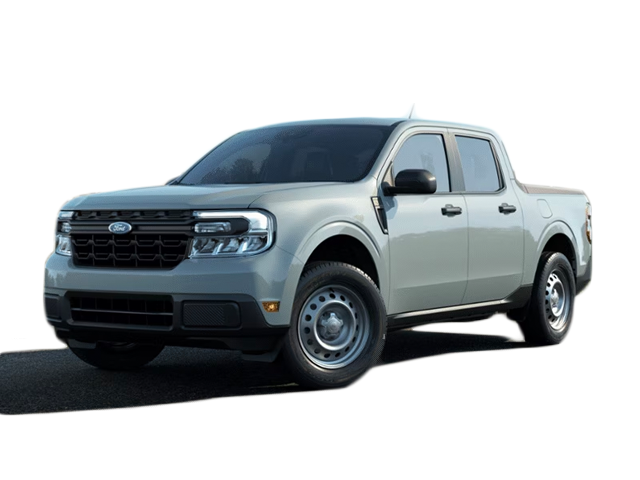

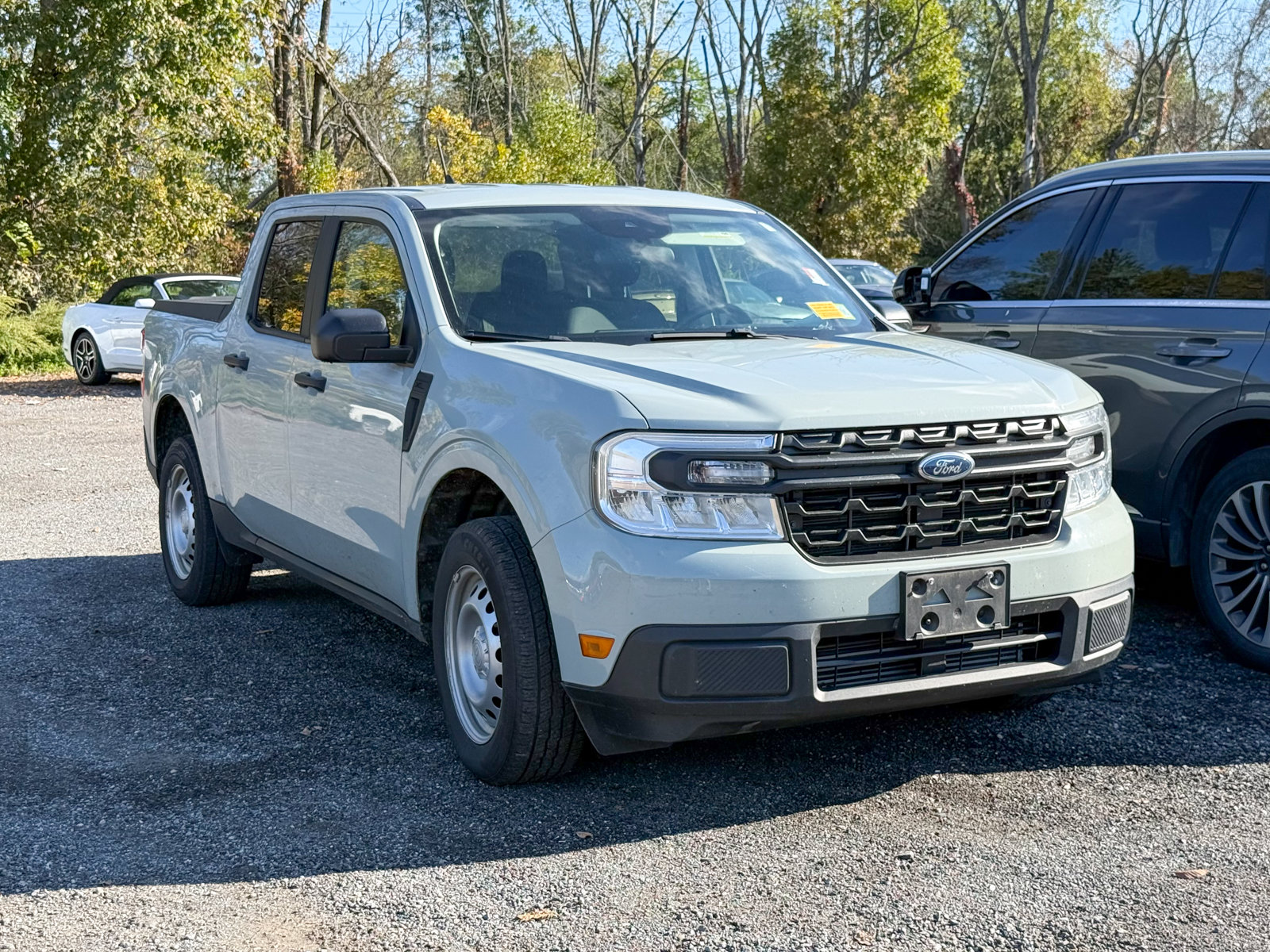

Vehicle Name - Ford Maverick

Body Style - SuperCrew

Body Code - T

Drivetrain - All Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 3693

EPA Greenhouse Gas Score - 5.0

Gross Vehicle Weight Rating Cap (lbs) - 5180

Fuel Economy Est-Combined (MPG) - 25

EPA Fuel Economy Est - City (MPG) - 22

EPA Fuel Economy Est - Hwy (MPG) - 29

Gross Combined Wt Rating (lbs) - 8145

Dead Weight Hitch - Max Trailer Wt. (lbs) - 4000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 400

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 4000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 400

Maximum Trailering Capacity (lbs) - 4000

Engine Order Code - 999

Engine Type - Intercooled Turbo Premium Gasoline I-4

Displacement - 2.0 L/122

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 250 @ 5500

SAE Net Torque @ RPM - 277 @ 3000

Trans Order Code - 448

Trans Type - 8

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.69

Second Gear Ratio (:1) - 3.31

Third Gear Ratio (:1) - 3.01

Fourth Gear Ratio (:1) - 1.92

Fifth Gear Ratio (:1) - 1.45

Sixth Gear Ratio (:1) - 1.00

Reverse Ratio (:1) - 2.96

Trans PTO Access - No

Transfer Case Model - None

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 700

Cold Cranking Amps @ 0? F (2nd) - 700

Tons/yr of CO2 Emissions @ 15K mi/year - 7.1

Maximum Alternator Capacity (amps) - 150

Engine Oil Cooler - No

Suspension Type - Front - Strut

Suspension Type - Rear - Short And Long Arm

Axle Type - Front - Independent

Axle Type - Rear - Independent

Axle Ratio (:1) - Front - 3.81

Axle Ratio (:1) - Rear - 3.81

Front Tire Order Code - T7R

Rear Tire Order Code - T7R

Spare Tire Order Code - 51D

Front Tire Size - P225/65HR17

Rear Tire Size - P225/65HR17

Spare Tire Size - Full-Size

Front Wheel Size (in) - 17 X 7

Rear Wheel Size (in) - 17 X 7

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Steel

Rear Wheel Material - Steel

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 40

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Drum - Rear (Yes or ) -

Fuel Tank Capacity, Approx (gal) - 16.5

Front Head Room (in) - 40.3

Front Leg Room (in) - 42.8

Front Shoulder Room (in) - 57.3

Front Hip Room (in) - 55.4

Second Head Room (in) - 39.6

Second Leg Room (in) - 36.9

Second Shoulder Room (in) - 55.6

Second Hip Room (in) - 54.1

Wheelbase (in) - 121.1

Length, Overall (in) - 199.7

Width, Max w/o mirrors (in) - 72.6

Height, Overall (in) - 68.7

Ground to Top of Load Floor (in) - 30.1

Ground Clearance, Front (in) - 8.6

Ground Clearance, Rear (in) - 8.6

Cargo Box Length @ Floor (in) - 54.4

Cargo Box Width @ Top, Rear (in) - 53.3

Cargo Box Width @ Floor (in) - 53.3

Cargo Box Width @ Wheelhousings (in) - 42.6

Cargo Box (Area) Height (in) - 20.3

Tailgate Width (in) - 49.8

Cargo Volume (ft?) - 33.3

Seventh Gear Ratio (:1) - 0.75

Eighth Gear Ratio (:1) - 0.62

Model Group - Maverick

Vehicle Segment - Small Pick-up

Vehicle Type - SuperCrew

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 2.0

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - Mexico Ford Truck (Completed Vehicle)
