Summit White

Jet Black, Deluxe Cloth/Leatherette Seat Trim

EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

AXLE, 3.53 FINAL DRIVE RATIO

LT PREFERRED EQUIPMENT GROUP Includes Standard Equipment

TIRES, P205/70R16 ALL-SEASON, BLACKWALL

LT CONVENIENCE PACKAGE includes (AVJ) Keyless Open, (BTM) Keyless Start, (5H1) Key System, (AG9) driver 6-way power seat adjuster, (N34) leather-wrapped 3-spoke steering wheel, (EGI) Deluxe Cloth/leatherette seat trim and (D7A) body-color door handles with chrome accents

LPO, PROTECTION PACKAGE includes (VAV) All-weather front and rear floor mats, LPO and (VQK) Front and rear custom molded Black splash guards, LPO

KEYLESS START

LPO, FRONT AND REAR SPLASH GUARDS, CUSTOM BLACK MOLDED

LICENSE PLATE BRACKET, FRONT

DOOR HANDLES, BODY-COLOR WITH CHROME ACCENT

SEAT TRIM, DELUXE CLOTH/LEATHERETTE

SEAT ADJUSTER, DRIVER 6-WAY POWER

LPO, ALL-WEATHER FLOOR MATS, FRONT AND REAR

STEERING WHEEL, LEATHER-WRAPPED 3-SPOKE

KEYLESS OPEN

KEY SYSTEM, 2 SPARE KEYS

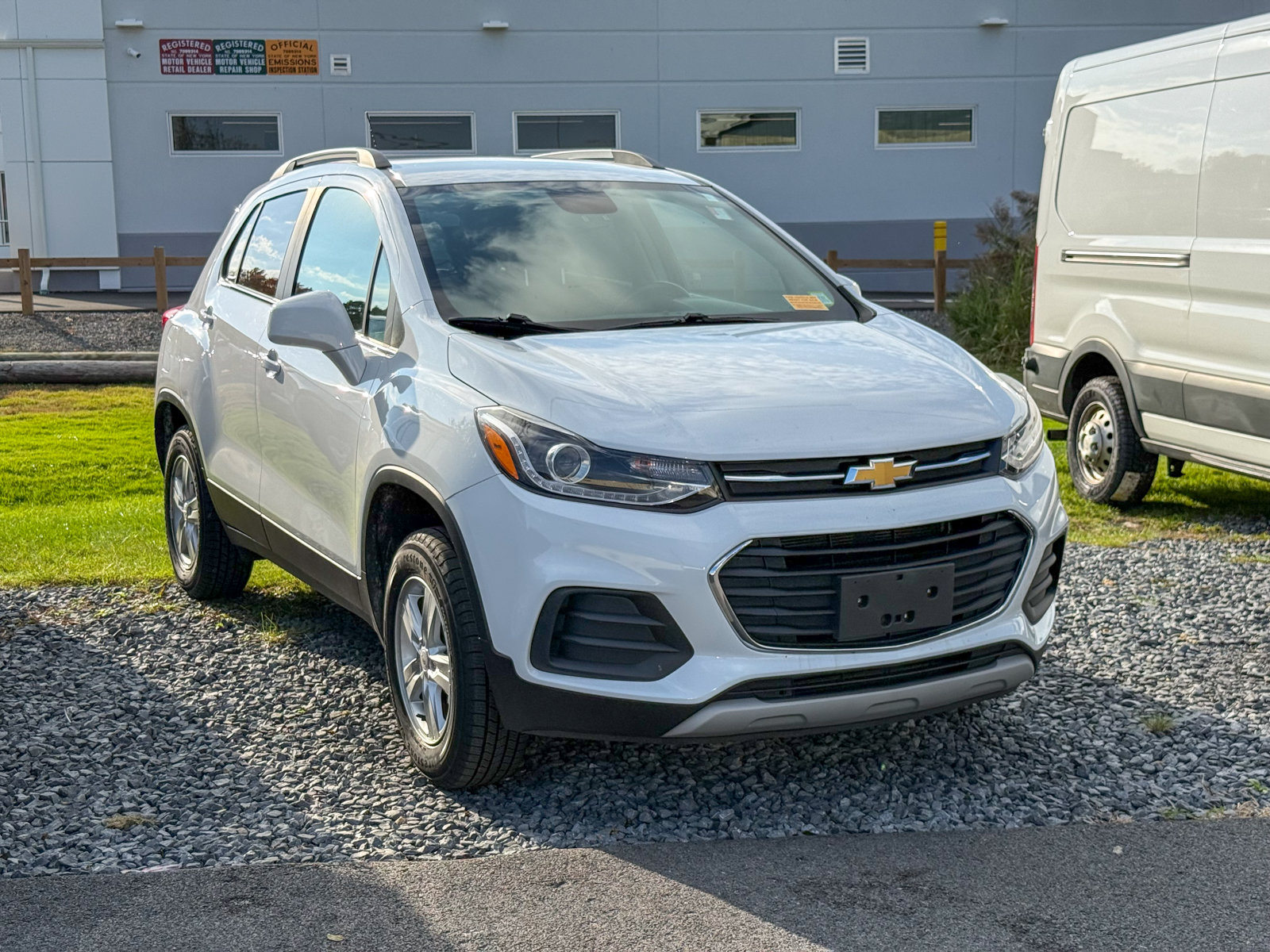

Vehicle Name - Chevrolet Trax

Body Style - Sport Utility Vehicle

Drivetrain - All Wheel Drive

EPA Classification - Small Sport Utility Vehicle

Passenger Capacity - 5

Passenger Volume (ft?) - 92.8

Base Curb Weight (lbs) - 3292

Fuel Economy Est-Combined (MPG) - 26

EPA Fuel Economy Est - City (MPG) - 24

EPA Fuel Economy Est - Hwy (MPG) - 29

Tons/yr of CO2 Emissions @ 15K mi/year - 6.8

Dead Weight Hitch - Max Trailer Wt. (lbs) - - TBD -

Dead Weight Hitch - Max Tongue Wt. (lbs) - - TBD -

Wt Distributing Hitch - Max Trailer Wt. (lbs) - - TBD -

Wt Distributing Hitch - Max Tongue Wt. (lbs) - - TBD -

Engine Order Code - LUV

Engine Type - Turbocharged Gas 4-Cyl

Displacement - 1.4L/- TBD -

Fuel System - Electronic Fuel Injection

SAE Net Horsepower @ RPM - 138 @ 4900

SAE Net Torque @ RPM - 148 @ 1850

Trans Order Code - MNK

Trans Type - 6

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.58

Second Gear Ratio (:1) - 2.96

Third Gear Ratio (:1) - 1.91

Fourth Gear Ratio (:1) - 1.45

Fifth Gear Ratio (:1) - 1.00

Sixth Gear Ratio (:1) - 0.75

Reverse Ratio (:1) - 2.94

Clutch Size (in) -

Final Drive Axle Ratio (:1) - 3.53

Transfer Case Gear Ratio (:1), High -

Transfer Case Gear Ratio (:1), Low -

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - 130

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Torsion Beam

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - RAJ

Rear Tire Order Code - RAJ

Spare Tire Order Code - - TBD -

Front Tire Size - P205/70R16

Rear Tire Size - P205/70R16

Spare Tire Size - Compact

Front Wheel Size (in) - 16 x - TBD -

Rear Wheel Size (in) - 16 x - TBD -

Spare Wheel Size (in) - 16 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Pwr

Steering Ratio (:1), Overall - - TBD -

Lock to Lock Turns (Steering) - - TBD -

Turning Diameter - Curb to Curb (ft) - 35.4

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - - TBD -

Rear Brake Rotor Diam x Thickness (in) - - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) - - TBD -

Fuel Tank Capacity, Approx (gal) - 14

Front Head Room (in) - 39.6

Second Head Room (in) - 38.8

Front Leg Room (in) - 40.8

Second Leg Room (in) - 35.7

Front Shoulder Room (in) - 54.1

Second Shoulder Room (in) - 52.8

Front Hip Room (in) - 51.7

Second Hip Room (in) - 50.7

Wheelbase (in) - 100.6

Length, Overall (in) - 167.2

Width, Max w/o mirrors (in) - 69.9

Height, Overall (in) - 66.3

Track Width, Front (in) - 60.6

Track Width, Rear (in) - 60.6

Min Ground Clearance (in) - 6.2

Rear Door Opening Height (in) - - TBD -

Rear Door Opening Width (in) - - TBD -

Cargo Area Length @ Floor to Seat 1 (in) - 57.0

Cargo Area Length @ Floor to Seat 2 (in) - 29.3

Cargo Area Length @ Floor to Seat 3 (in) -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - 31.8

Liftover Height (in) - - TBD -

Cargo Volume to Seat 1 (ft?) - 48.4

Cargo Volume to Seat 2 (ft?) - 18.7

Cargo Volume to Seat 3 (ft?) -

Model Group - Trax

Vehicle Segment - Subcompact Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 1.4

Engine Camshaft - DOHC

Engine Block Type - iron

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - South Korea To Be Determined Passenger Car, Mpv & Truck
