CLEAR WHITE

BLACK, CLOTH SEAT TRIM

CARPETED FLOOR MAT

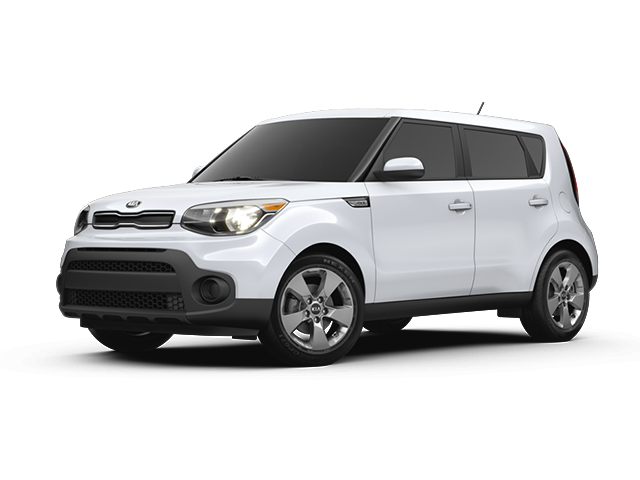

Vehicle Name - Kia Soul

Body Style - Hatchback

Drivetrain - Front Wheel Drive

EPA Classification - Small Station Wagons

Passenger Capacity - 5

Passenger Volume (ft?) - 101

Base Curb Weight (lbs) - 2884

Fuel Economy Est-Combined (MPG) - 27

EPA Fuel Economy Est - City (MPG) - 24

EPA Fuel Economy Est - Hwy (MPG) - 30

Engine Order Code -

Engine Type - Regular Unleaded I-4

Displacement - 1.6 L/97

Fuel System - Gasoline Direct Injection

SAE Net Horsepower @ RPM - 130 @ 6300

SAE Net Torque @ RPM - 118 @ 4850

Trans Order Code -

Trans Type - 6

Trans Description Cont. - Manual w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 3.62

Second Gear Ratio (:1) - 1.96

Third Gear Ratio (:1) - 1.29

Fourth Gear Ratio (:1) - 0.97

Fifth Gear Ratio (:1) - 0.84

Sixth Gear Ratio (:1) - 0.73

Reverse Ratio (:1) - 3.70

Final Drive Axle Ratio (:1) - 4.56

Cold Cranking Amps @ 0? F (Primary) - 550

Tons/yr of CO2 Emissions @ 15K mi/year - 6.5

Maximum Alternator Capacity (amps) - 110

Suspension Type - Front - Strut

Suspension Type - Rear - Torsion Beam

Suspension Type - Front (Cont.) - Strut

Suspension Type - Rear (Cont.) - Torsion Beam

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - P205/60HR16

Rear Tire Size - P205/60HR16

Spare Tire Size -

Front Wheel Size (in) - 16 X 6.5

Rear Wheel Size (in) - 16 X 6.5

Spare Wheel Size (in) -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material -

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 34.8

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 11

Rear Brake Rotor Diam x Thickness (in) - 10.3

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 14.2

Front Head Room (in) - 39.6

Front Leg Room (in) - 40.9

Front Shoulder Room (in) - 55.5

Front Hip Room (in) - 53.2

Second Head Room (in) - 39.5

Second Leg Room (in) - 39.1

Second Shoulder Room (in) - 54.7

Second Hip Room (in) - 49.3

Wheelbase (in) - 101.2

Length, Overall (in) - 163

Width, Max w/o mirrors (in) - 70.9

Height, Overall (in) - 63.5

Track Width, Front (in) - 62

Track Width, Rear (in) - 62.5

Min Ground Clearance (in) - 5.9

Cargo Volume with Rear Seat Up (ft?) - 18.8

Cargo Volume with Rear Seat Down (ft?) - 49.5

Model Group - Soul

Vehicle Segment - Compact

Vehicle Type - Hatchback

Engine Displacement Units - 1.6

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - South Korea Kia Pass Cars, MPV, Trucks & Buses
